GX390 K1 QA (GCAA) - Honda Engine, Made in Japan (SN: GCAA-2000001 - GCAA-3399999) AIR CLEANER (1) Parts Diagram

Engine, Made in Japan

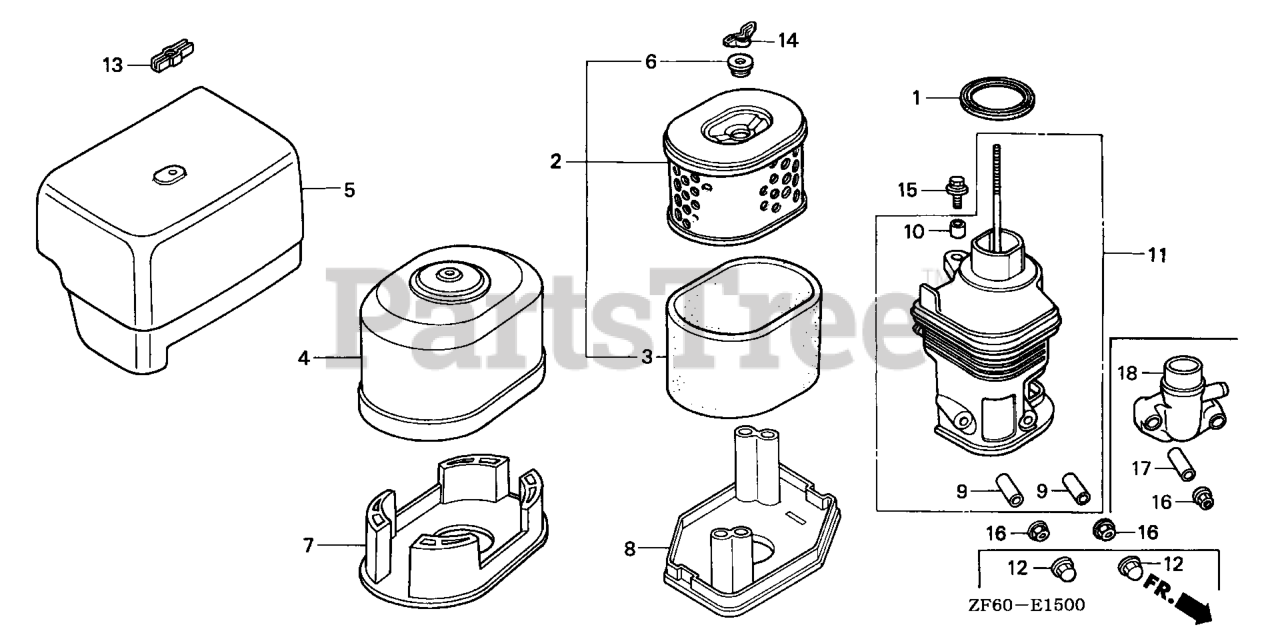

AIR CLEANER (1) Parts Diagram

  • Title

1

Honda 16271-ZE2-000

SEE PART DETAILS - SUP; GASKET, ELBOW (Honda Code 2025948).
(Superseded to 16271-ZE2-010)

$3.49

$

In Stock, only 1 left!

0

2

Honda 17210-ZE3-505

SEE PART DETAILS - PRI; ELEMENT, AIR CLEANER (Honda Code 5252697).

$21.99

$

In Stock, Qty 20+

0

3

Honda 17218-ZE3-000

SEE PART DETAILS - SUP; FILTER (OUTER) (Honda Code 2577377).
(Superseded to 17218-ZE3-505)

$

$

Not available

5

Honda 17231-ZE3-W01

SEE PART DETAILS - PRI; COVER, AIR CLEANER

$57.99

$

In Stock, only 1 left!

0

6

Honda 17232-891-000

GROMMET, AIR CLEANER (Honda Code 0999763).

$5.99

$

In Stock, Qty 6

0

8

Honda 17235-ZH9-N01

SEE PART DETAILS - PRI; NOSE, MUFFLER

$36.99

$

In Stock, only 1 left!

0

9

Honda 17238-ZE2-310

SEE PART DETAILS - PRI; COLLAR, AIR CLEANER (Honda Code 2384105).

$4.99

$

In Stock, Qty 10

0

10

Honda 17239-ZE1-000

COLLAR B, AIR CLEANER (Honda Code 1427533).

$4.99

$

In Stock, Qty 7

0

11

Honda 17410-ZH9-N01

SEE PART DETAILS - PRI; ELBOW, AIR CLEANER

$16.99

$

In Stock, only 1 left!

0

12

Honda 90201-415-000

NUT, CAP (6MM) (Honda Code 0670729).

Note: Use up to Engine SN 2066080.

$2.99

$

Usually ships in 3-6 days

0

13

Honda 90203-PB2-000

SEE PART DETAILS - PRI; WINGNUT, AIR CLEANER COVER (Honda Code 0994855).

Note: Use up to Engine SN 2042138.

$10.99

$

In Stock, only 3 left!

0

13

Honda 90203-ZA0-800

WINGNUT (6MM) (Honda Code 1742238).

Note: Use from Engine SN 2042139.

$4.49

$

In Stock, only 1 left!

0

14

Honda 90325-044-000

SEE PART DETAILS - PRI; WINGNUT, TOOL BOX SETTING (Honda Code 0127720).

$5.49

$

In Stock, Qty 20+

0

15

Honda 93404-06020-08

SEE PART DETAILS - PRI; BOLT-WASHER (6X20)

$2.49

$

In Stock, only 2 left!

0

16

Honda 94050-06000

SEE PART DETAILS - PRI; NUT, FLANGE (6MM) (Honda Code 0471623).

Note: Use from Engine SN 2066081.

$0.99

$

In Stock, Qty 20+

0
