GX390 K1 LX2 (GCAA) - Honda Engine, Made in Japan (SN: GCAA-2000001 - GCAA-3399999) REDUCTION (1/2) Parts Diagram
Engine, Made in Japan

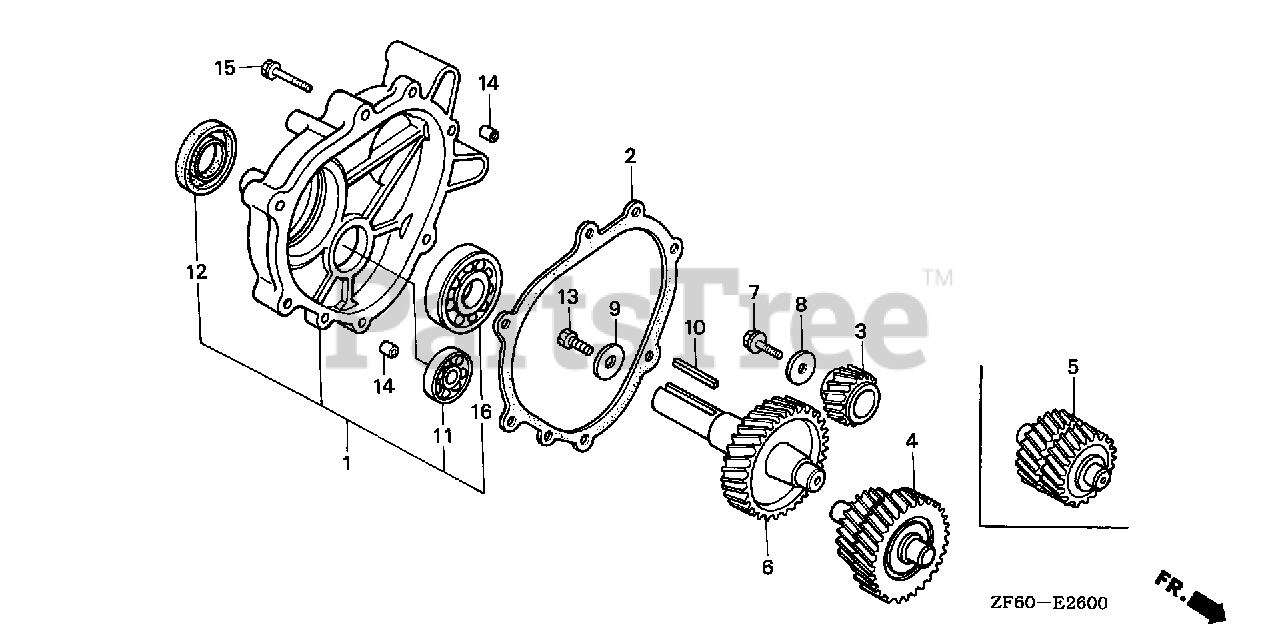

REDUCTION (1/2) Parts Diagram
Honda 11500-ZE3-613
COVER ASSY., GEAR CASE
$168.99
$
Usually ships in 3-6 days
Honda 11521-ZE2-800
GASKET, CHAIN CASE COVER
$11.99
$
In Stock, only 1 left!
Honda 22103-ZE3-610
GEAR, PRIMARY DRIVE (22T)
$75.99
$
Usually ships in 3-6 days
Honda 23220-ZE3-610
COUNTERSHAFT (21T/27T)
$229.99
$
Usually ships in 3-6 days
Honda 23710-ZE3-610
SHAFT, P.T.O. (33T)
$307.99
$
Usually ships in 3-6 days
Honda 90107-959-003
BOLT, FLANGE (8X25)
$4.49
$
Usually ships in 3-6 days
Honda 90473-ZE3-010
WASHER (8.5X42X4.5)
$7.49
$
Usually ships in 3-6 days
Honda 90741-889-810
SEE PART DETAILS - PRI; KEY (7X7X33) (OVER SIZE) (YELLOW)
$9.49
$
Usually ships in 3-6 days
Honda 91009-KJ1-003
BEARING, RADIAL BALL (6202) (NTN)
$20.99
$
Usually ships in 3-6 days
Honda 91201-890-003
OIL SEAL (30X46X8)
$11.99
$
Usually ships in 3-6 days
Honda 94301-08140
PIN, DOWEL (8X14)
$2.99
$
In Stock, Qty 8
Honda 95701-08040-00
SEE PART DETAILS - PRI; BOLT, FLANGE (8X40)
$1.99
$
In Stock, Qty 6
Honda 96100-62060-00
BEARING, RADIAL BALL (6206)
$30.99
$
In Stock, only 1 left!
