GX390 K1 LX2 (GCAA) - Honda Engine, Made in Japan (SN: GCAA-2000001 - GCAA-3399999) MUFFLER (1) Parts Diagram

Engine, Made in Japan

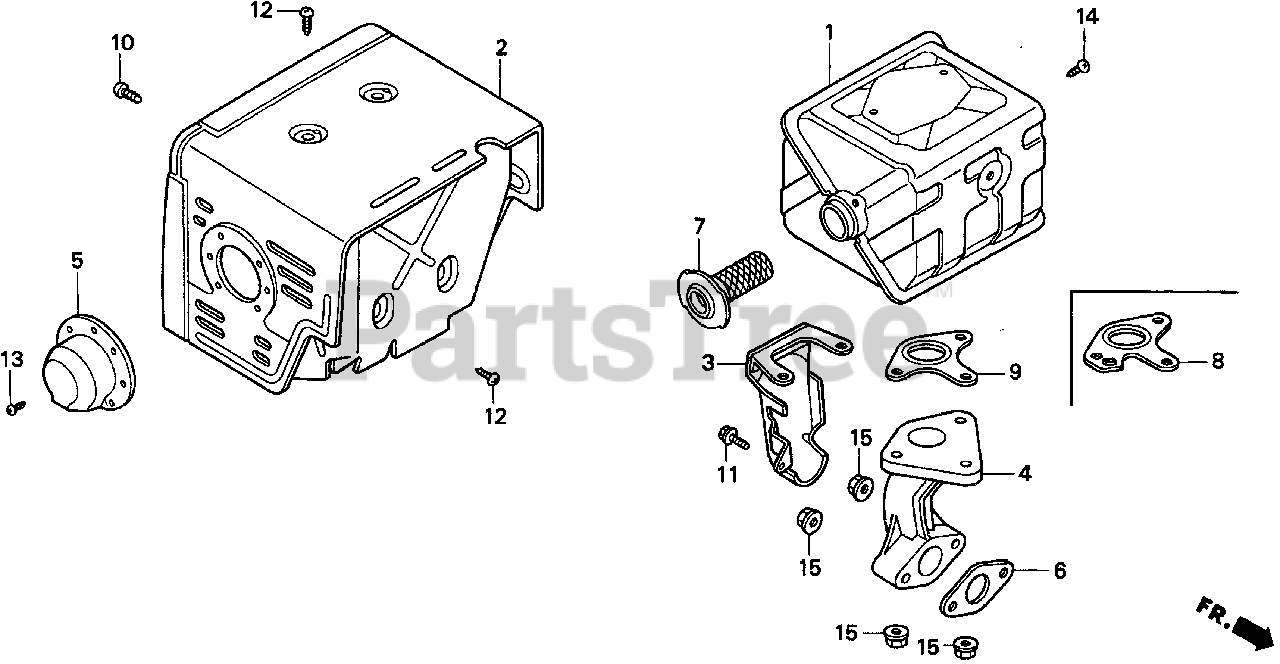

MUFFLER (1) Parts Diagram

  • Title

1

Honda 18310-ZE2-W60

SEE PART DETAILS - SUP; MUFFLER (100DB) (SILENT)
(Superseded to 18310-ZE2-W61)

Note: Use up to Engine SN 2638033. (Honda Code 3678752).

$129.99

$

In Stock, only 1 left!

0

1

Honda 18310-ZE2-W61

SEE PART DETAILS - PRI; MUFFLER (100DB)

Note: (Honda Code 6145353).

$129.99

$

In Stock, only 1 left!

0

2

Honda 18320-ZE2-W61

SEE PART DETAILS - PRI; PROTECTOR, MUFFLER
(Superseded to 18320-ZE2-W62)

Note: (Honda Code 4684098).

$71.99

$

In Stock, only 1 left!

0

4

Honda 18330-ZE2-W00

PIPE, EX.

Note: (Honda Code 3678794).

$79.99

$

Usually ships in 3-6 days

0

6

Honda 18333-ZE3-800

SEE PART DETAILS - SUP; GASKET, EX. PIPE
(Superseded to 18333-ZK6-Y00)

Note: Use up to Engine SN 2275744. (Honda Code 3520194).

$5.49

$

In Stock, Qty 20+

0

6

Honda 18333-ZF6-W01

GASKET, EX. PIPE
(Superseded to 18333-Z1C-901)

Note: Use from Engine SN 2638034. (Honda Code 6145361).

$3.49

$

In Stock, only 1 left!

0

6

Honda 18333-ZK6-Y00

SEE PART DETAILS - PRI; GASKET, EX. PIPE (WACKER)

Note: Use up to Engine SN 2275744. (Honda Code 5164199).

$5.49

$

In Stock, Qty 20+

0

6

Honda 18333-ZK6-Y00

SEE PART DETAILS - PRI; GASKET, EX. PIPE (WACKER)

Note: Use from Engine SN 2275745 to 2638033. (Honda Code 5164199).

$5.49

$

In Stock, Qty 20+

0

7

Honda 18355-ZE2-W00

ARRESTER, SPARK

Note: (Optional). (Honda Code 3690302).

$56.99

$

In Stock, only 2 left!

0

8

Honda 18381-ZE2-W10

SEE PART DETAILS - PRI; GASKET, MUFFLER (ARRESTER)

Note: (Optional). (Honda Code 3678802).

$12.99

$

In Stock, Qty 7

0

9

Honda 18381-ZE2-800

SEE PART DETAILS - PRI; GASKET, MUFFLER
(Superseded to 18381-ZE2-801)

Note: (Honda Code 3678810).

$15.99

$

In Stock, only 2 left!

0

10

Honda 90006-ZE2-000

SCREW, TAPPING (6X10)

Note: (Honda Code 4335436).

$2.49

$

In Stock, only 4 left!

0

12

Honda 90050-ZE1-000

SCREW, TAPPING (5X8)

Note: (Honda Code 1431105).

$2.49

$

In Stock, Qty 20+

0

14

Honda 90055-ZE1-000

SCREW, TAPPING (4X6)

Note: (Optional). (Honda Code 1431121).

$1.49

$

In Stock, Qty 20+

0

15

Honda 94050-08000

SEE PART DETAILS - PRI; NUT, FLANGE (8MM)

Note: (Honda Code 0481143).

$1.49

$

In Stock, Qty 20+

0
