GX390 K1 LX2 (GCAA) - Honda Engine, Made in Japan (SN: GCAA-2000001 - GCAA-3399999) CARBURETOR (1) Parts Diagram

Engine, Made in Japan

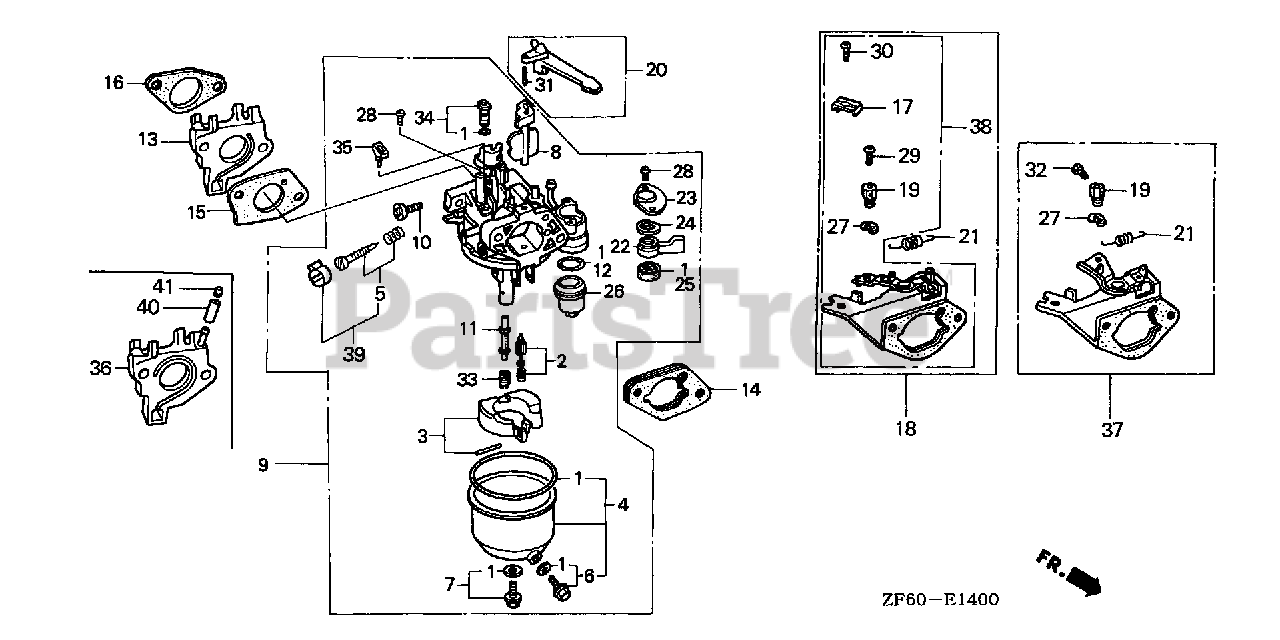

CARBURETOR (1) Parts Diagram

  • Title

1

Honda 16010-ZE2-812

SEE PART DETAILS - PRI; GASKET SET (CARBURETOR NO.) (INCLUDES 16173-001-004)

$18.99

$

In Stock, only 3 left!

0

2

Honda 16011-ZA0-931

VALVE SET, FLOAT (CARBURETOR NO.)

$43.99

$

Usually ships in 3-6 days

0

3

Honda 16013-ZA0-931

FLOAT SET (CARBURETOR NO.)

$49.99

$

Usually ships in 3-6 days

0

4

Honda 16015-ZE8-005

CHAMBER SET, FLOAT (CARBURETOR NO.)

Note: Use up to Engine SN BE85B A.

$44.99

$

Usually ships in 3-6 days

0

4

Honda 16015-ZE8-005

CHAMBER SET, FLOAT (CARBURETOR NO.)

Note: Use from Engine SN BE85B B.

$44.99

$

Usually ships in 3-6 days

0

6

Honda 16024-ZE1-811

SCREW SET, DRAIN (CARBURETOR NO.)

$10.99

$

In Stock, only 3 left!

0

7

Honda 16028-ZE0-005

SCREW SET (CARBURETOR NO.)
(Superseded to 16028-ZK7-S91)

$13.99

$

In Stock, only 1 left!

0

8

Honda 16044-ZE3-W20

CHOKE SET (CARBURETOR NO.)

$35.99

$

Usually ships in 3-6 days

0

9

Honda 16100-ZF6-V01

CARBURETOR ASSY. (BE85B B)

$118.99

$

In Stock, only 1 left!

0

10

Honda 16124-ZE0-005

SCREW, THROTTLE STOP (CARBURETOR NO.)

$17.99

$

In Stock, only 1 left!

0

11

Honda 16166-ZF6-V00

NOZZLE, MAIN (CARBURETOR NO.)

$32.99

$

Usually ships in 3-6 days

0

12

Honda 16173-001-004

GASKET, FUEL STRAINER CUP (CARBURETOR NO.)

$7.49

$

In Stock, Qty 9

0

13

Honda 16211-ZF6-000

INSULATOR, CARBURETOR

$19.99

$

In Stock, only 1 left!

0

14

Honda 16220-ZA0-702

SEE PART DETAILS - PRI; SPACER, CARBURETOR

$11.99

$

In Stock, only 4 left!

0

15

Honda 16221-ZF6-800

GASKET, CARBURETOR

$2.49

$

In Stock, Qty 20+

0

16

Honda 16223-ZE3-W00

GASKET, INSULATOR

$2.99

$

In Stock, Qty 7

0

20

Honda 16610-ZE1-000

LEVER, CHOKE (STD)

$10.99

$

In Stock, only 2 left!

0

22

Honda 16953-ZE1-811

SEE PART DETAILS - SUP; LEVER, PETCOCK (CARBURETOR NO.)
(Superseded to 16953-ZE1-406)

Note: Use up to Engine SN BE85B A.

$13.99

$

Usually ships in 3-6 days

0

22

Honda 16953-ZE1-812

LEVER, PETCOCK (CARBURETOR NO.)

Note: Use from Engine SN BE85B B.

$10.99

$

In Stock, only 1 left!

0

23

Honda 16954-ZE1-812

PLATE, LEVER SETTING (CARBURETOR NO.)

Note: Use up to Engine SN BE85B A.

$4.49

$

In Stock, only 1 left!

0

23

Honda 16954-ZE1-812

PLATE, LEVER SETTING (CARBURETOR NO.)

Note: Use from Engine SN BE85B B.

$4.49

$

In Stock, only 1 left!

0

24

Honda 16956-ZE1-811

SEE PART DETAILS - PRI; SPRING, PETCOCK LEVER (CARBURETOR NO.)

$3.99

$

In Stock, only 1 left!

0

25

Honda 16957-ZE1-812

SEE PART DETAILS - PRI; GASKET, PETCOCK (CARBURETOR NO.)

$4.49

$

In Stock, Qty 7

0

26

Honda 16967-ZE0-811

CUP, FUEL STRAINER (CARBURETOR NO.)

$22.99

$

In Stock, only 1 left!

0

28

Honda 93500-03006-0H

SCREW, PAN (3X6)

Note: Use from Engine SN BE85B B.

$1.49

$

In Stock, Qty 5

0

28

Honda 93500-03008-1G

SCREW, PAN (3X8) (CARBURETOR NO.)

Note: Use up to Engine SN BE85B A.

$

$

Currently unavailable

31

Honda 94305-20122

PIN, SPRING (2X12)

$2.49

$

In Stock, Qty 5

0

33

Honda 99101-ZH8-0880

JET, MAIN (#88) (CARBURETOR NO.)

Note: (Optional).

$7.99

$

In Stock, only 1 left!

0

33

Honda 99101-ZH8-0900

SEE PART DETAILS - PRI; JET, MAIN (#90) (CARBURETOR NO.)

Note: (Optional).

$7.99

$

In Stock, only 2 left!

0

33

Honda 99101-ZH8-0920

JET, MAIN (#92) (CARBURETOR NO.)

$7.99

$

In Stock, only 1 left!

0

34

Honda 99204-ZA0-0450

JET SET, PILOT (#45) (CARBURETOR NO.)

$23.99

$

In Stock, only 1 left!

0

35

Honda 16172-ZE3-W10

COLLAR, SETTING (CARBURETOR NO.)

$10.99

$

Usually ships in 3-6 days

0

39
