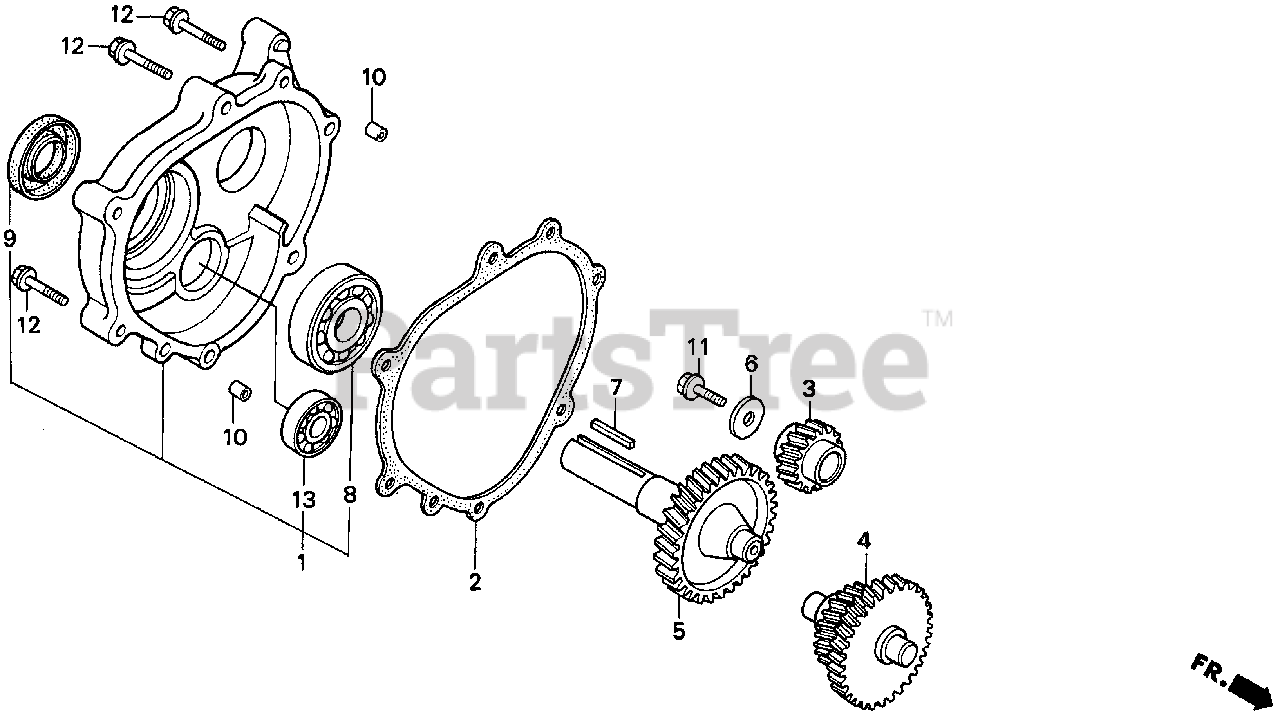

GX390 K1 HJA (GCAA) - Honda Engine, Made in Japan (SN: GCAA-2000001 - GCAA-3399999) REDUCTION Parts Diagram

Engine, Made in Japan

REDUCTION Parts Diagram

  • Title

1

Honda 11500-ZE3-640

COVER ASSY., GEAR CASE (H-TYPE)

Note: (Honda Code 3746518).

$212.99

$

Usually ships in 3-6 days

0

2

Honda 11521-ZE2-800

SEE PART DETAILS - PRI; GASKET, CHAIN CASE COVER

Note: (Honda Code 3678513).

$11.99

$

In Stock, only 1 left!

0

3

Honda 22103-ZE3-640

GEAR, PRIMARY DRIVE (12T)

Note: (Honda Code 3746641).

$85.99

$

Usually ships in 3-6 days

0

4

Honda 23220-ZE3-640

COUNTERSHAFT

Note: (Honda Code 3746658).

$249.99

$

Usually ships in 3-6 days

0

5

Honda 23710-ZF6-U50

SHAFT, P.T.O. (HQ-TYPE)

Note: (Honda Code 4310868).

$322.99

$

Usually ships in 3-6 days

0

6

Honda 90473-842-000

WASHER (8MM)

Note: (Honda Code 0323295).

$1.99

$

In Stock, only 4 left!

0

7

Honda 90745-ZE2-600

KEY (6.3X6.3X43)

Note: (Honda Code 2027167).

$17.99

$

In Stock, only 1 left!

0

8

Honda 91006-MT3-003

BEARING, RADIAL BALL (6206) (NTN CORP.)

Note: (Honda Code 3488103).

$28.99

$

Usually ships in 3-6 days

0

9

Honda 91201-890-003

OIL SEAL (30X46X8)

Note: (Honda Code 0756494).

$11.99

$

Usually ships in 3-6 days

0

10

Honda 94301-08140

SEE PART DETAILS - PRI; PIN A, DOWEL (8X14)

Note: (Honda Code 0069310).

$2.99

$

In Stock, Qty 8

0

11

Honda 95701-08025-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X25)

Note: (Honda Code 2545325).

$2.49

$

In Stock, Qty 5

0

12

Honda 95701-08040-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X40)

Note: (Honda Code 2298404).

$1.99

$

In Stock, Qty 6

0

13

Honda 96100-63020-00

BEARING, RADIAL BALL (6302)

Note: (Honda Code 0834176).

$11.99

$

Usually ships in 3-6 days

0
