GX390 K1 HAQ (GCAA) - Honda Engine, Made in Japan (SN: GCAA-2000001 - GCAA-3399999) CRANKCASE COVER (2) Parts Diagram

Engine, Made in Japan

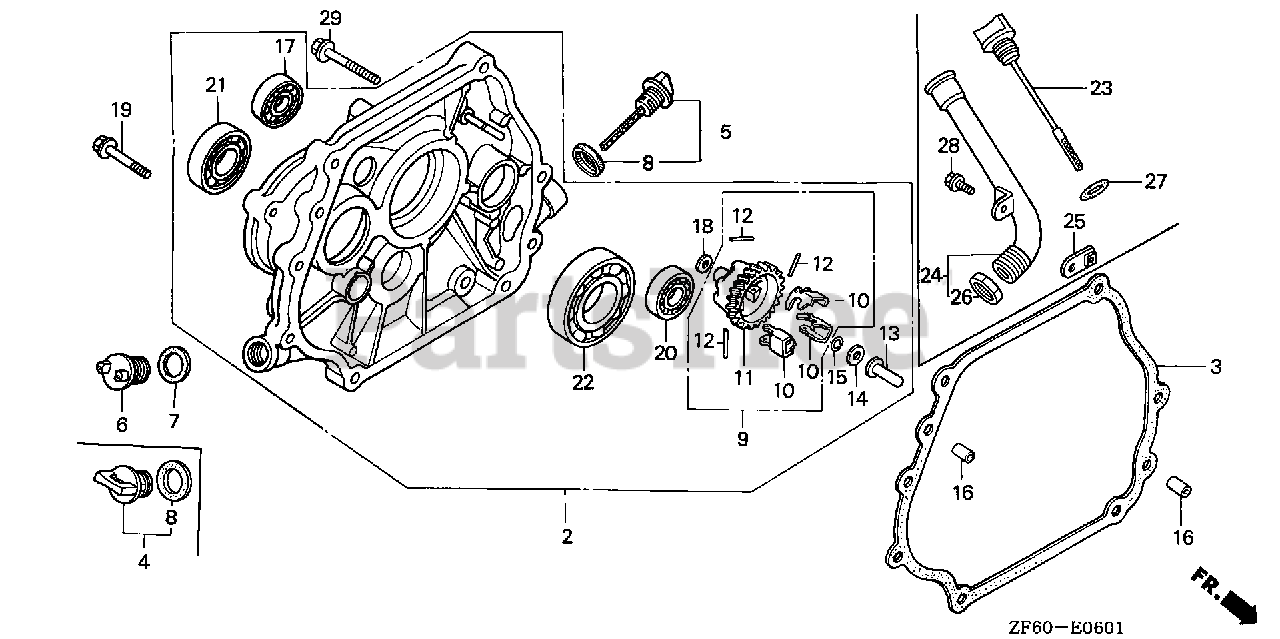

CRANKCASE COVER (2) Parts Diagram

  • Title

2

Honda 11300-ZF6-W30

SEE PART DETAILS - SUP; COVER ASSY., CRANKCASE
(Superseded to 11300-ZF6-W32)

$336.99

$

Usually ships in 3-6 days

0

2

Honda 11300-ZF6-W32

SEE PART DETAILS - PRI; COVER ASSY., CRANKCASE

$336.99

$

Usually ships in 3-6 days

0

3

Honda 11381-ZE3-801

GASKET, CASE COVER

$13.99

$

In Stock, only 4 left!

0

4

Honda 15600-ZG4-003

CAP ASSY., OIL FILLER

Note: Use from Engine SN 2090081.

$6.99

$

In Stock, only 1 left!

0

5

Honda 15600-735-003

CAP ASSY., OIL FILLER

$9.49

$

In Stock, Qty 11

0

6

Honda 15620-ZG4-910

CAP, OIL FILLER

Note: Use up to Engine SN 2090080.

$4.99

$

Usually ships in 3-6 days

0

7

Honda 15621-896-010

GASKET, OIL FILLER CAP

Note: Use up to Engine SN 2090080.

$5.99

$

In Stock, Qty 5

0

8

Honda 15625-ZE1-003

SEE PART DETAILS - PRI; GASKET, OIL FILLER CAP

Note: Use up to Engine SN 2090080.

$3.49

$

In Stock, only 3 left!

0

8

Honda 15625-ZE1-003

SEE PART DETAILS - PRI; GASKET, OIL FILLER CAP

Note: Use from Engine SN 2090081.

$3.49

$

In Stock, only 3 left!

0

9

Honda 16510-ZE3-000

GOVERNOR ASSY.

$33.99

$

Usually ships in 3-6 days

0

10

Honda 16511-ZE8-000

WEIGHT, GOVERNOR

$7.99

$

Usually ships in 3-6 days

0

11

Honda 16512-ZE3-000

HOLDER, GOVERNOR WEIGHT

$19.99

$

Usually ships in 3-6 days

0

12

Honda 16513-ZE2-000

PIN, GOVERNOR WEIGHT

$2.49

$

Usually ships in 3-6 days

0

13

Honda 16531-Z0A-000

SEE PART DETAILS - PRI; SLIDER, GOVERNOR

$3.99

$

In Stock, only 3 left!

0

14

Honda 90473-147-000

WASHER (6X16)

Note: Use up to Engine SN 2123631.

$1.99

$

In Stock, only 1 left!

0

15

Honda 90602-ZE1-000

CLIP, GOVERNOR HOLDER

$1.99

$

In Stock, only 4 left!

0

16

Honda 90701-HC4-000

PIN, DOWEL (8X12)

$3.99

$

In Stock, only 2 left!

0

17

Honda 91009-KJ1-003

BEARING, RADIAL BALL (6202) (NTN)

$20.99

$

Usually ships in 3-6 days

0

18

Honda 94101-06800

WASHER, PLAIN (6MM)

$0.99

$

In Stock, Qty 20+

0

19

Honda 95701-08040-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X40)

$1.99

$

In Stock, Qty 20+

0

20

Honda 96100-62020-00

BEARING, RADIAL BALL (6202)

$12.99

$

In Stock, only 3 left!

0

21

Honda 91102-GE1-711

BEARING, RADIAL BALL (6204) (TOYO)

$25.99

$

Usually ships in 3-6 days

0

22

Honda 96100-62070-00

BEARING, RADIAL BALL (6207)

$56.99

$

Usually ships in 3-6 days

0
