GX390 K1 EN6 (GCAA) - Honda Engine, Made in Japan (SN: GCAA-2000001 - GCAA-3399999) AIR CLEANER (4) Parts Diagram

Engine, Made in Japan

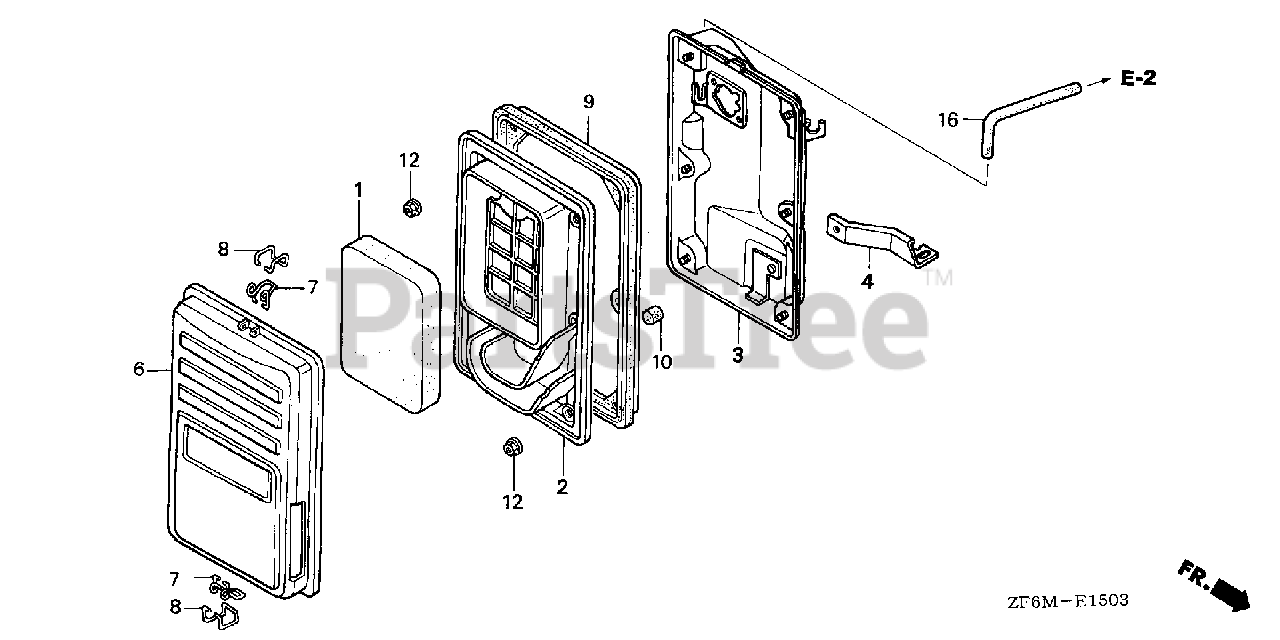

AIR CLEANER (4) Parts Diagram

  • Title
1

Honda 17211-899-000

ELEMENT, AIR CLEANER

Note: (Honda Code 1239300).

$9.49

$

In Stock, Qty 18

0

2

Honda 17212-ZB4-003

SEPARATOR, AIR CLEANER

Note: (Honda Code 2278596).

$85.99

$

Usually ships in 3-6 days

0

3

Honda 17220-ZB4-003

HOUSING, AIR CLEANER
(Superseded to 17220-ZB4-013)

Note: (Honda Code 2278604).

$111.99

$

Usually ships in 3-6 days

0

4

Honda 17222-ZC2-000

STAY, AIR CLEANER

Note: (Honda Code 2278612).

$13.99

$

Usually ships in 3-6 days

0

6

Honda 17231-899-000

COVER, AIR CLEANER

Note: (Honda Code 1239334).

$85.99

$

Usually ships in 3-6 days

0

7

Honda 17235-899-000

CLIP A, AIR CLEANER WIRE

Note: (Honda Code 1239342).

$5.49

$

In Stock, only 2 left!

0

8

Honda 17236-899-000

CLIP B, AIR CLEANER WIRE

Note: (Honda Code 1239359).

$5.49

$

In Stock, only 2 left!

0

9

Honda 17252-899-000

SEAL, AIR CLEANER

Note: (Honda Code 1239367).

$29.99

$

In Stock, only 1 left!

0

10

Honda 17367-413-690

FILTER, DRAIN TUBE

Note: (Honda Code 0704437).

$2.99

$

In Stock, only 1 left!

0

12

Honda 94050-05000

NUT, FLANGE (5MM)

Note: (Honda Code 0636951).

$1.99

$

In Stock, Qty 20+

0

16

Honda 15721-ZB4-000

TUBE, BREATHER

Note: (Honda Code 2278380).

$9.49

$

In Stock, Qty 10

0
