GX390 K1 EDD2 (GCAA) - Honda Engine, Made in Japan (SN: GCAA-2000001 - GCAA-3399999) MUFFLER (3) Parts Diagram

Engine, Made in Japan

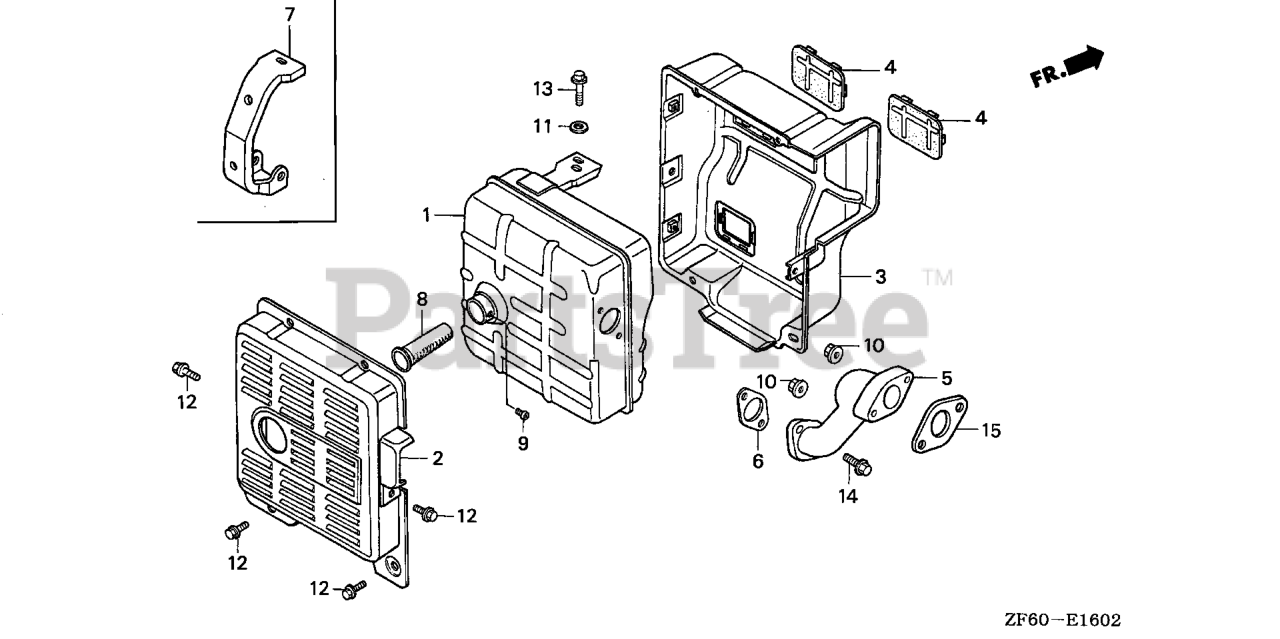

MUFFLER (3) Parts Diagram

  • Title

1

Honda 18310-ZE2-V60

SEE PART DETAILS - SUP; MUFFLER (TSURUMI)
(Superseded to 18310-ZE2-V61)

$232.99

$

Usually ships in 3-6 days

0

1

Honda 18310-ZE2-V61

SEE PART DETAILS - PRI; MUFFLER (TSURUMI)

$232.99

$

Usually ships in 3-6 days

0

2

Honda 18320-ZC2-000

PROTECTOR, MUFFLER (OUTER)

$89.99

$

Usually ships in 3-6 days

0

3

Honda 18325-ZB4-000

PROTECTOR, MUFFLER (INNER)

$131.99

$

Usually ships in 3-6 days

0

4

Honda 18329-ZB4-000

SEAL, MUFFLER PROTECTOR

$13.99

$

Usually ships in 3-6 days

0

5

Honda 18330-ZE3-700

PIPE, EX.

$79.99

$

Usually ships in 3-6 days

0

6

Honda 18333-ZB4-801

SEE PART DETAILS - PRI; GASKET, EX. PIPE

$4.49

$

In Stock, only 4 left!

0

7

Honda 18338-ZE2-V60

STAY A, MUFFLER (TSURUMI)

$39.99

$

Usually ships in 3-6 days

0

8

Honda 18355-ZB4-630

ARRESTER, SPARK

$23.99

$

Usually ships in 3-6 days

0

9

Honda 90002-ZE2-U91

SCREW, TAPPING (4X8)

$1.49

$

In Stock, only 2 left!

0

10

Honda 94050-08000

SEE PART DETAILS - PRI; NUT, FLANGE (8MM) (Honda Code 0481143).

$1.49

$

In Stock, Qty 20+

0

12

Honda 95701-06012-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) Use up to Engine SN 1543277.

$2.49

$

In Stock, Qty 20+

0

14

Honda 95701-08020-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X20) Use up to Engine SN 1609606.

$2.49

$

In Stock, only 1 left!

0

15

Honda 18333-ZE3-800

SEE PART DETAILS - SUP; GASKET, EX. PIPE Use up to Engine SN 2949254.
(Superseded to 18333-ZK6-Y00)

$5.49

$

In Stock, Qty 20+

0

15

Honda 18333-ZK6-Y00

SEE PART DETAILS - PRI; GASKET, EX. PIPE (WACKER) (Honda Code 5164199).

$5.49

$

In Stock, Qty 20+

0
