GX360 K1 ES23 (GA01) - Honda Engine, Made in Japan (SN: GA01-1100001 - GA01-1399999) CARBURETOR (3) Parts Diagram

Engine, Made in Japan

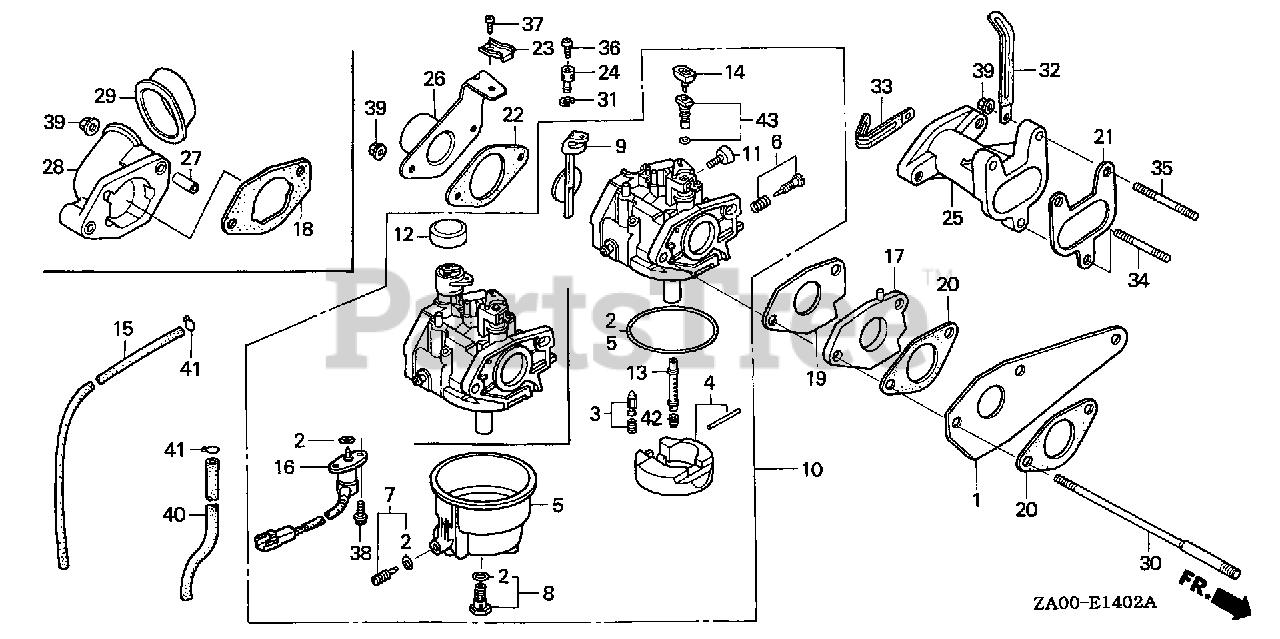

CARBURETOR (3) Parts Diagram

  • Title

1

Honda 11815-ZA0-930

STAY, TIMING BELT

$16.99

$

Usually ships in 3-6 days

0

2

Honda 16010-ZA0-931

GASKET SET

$22.99

$

In Stock, only 4 left!

0

3

Honda 16011-ZA0-931

VALVE SET, FLOAT

$43.99

$

In Stock, only 2 left!

0

4

Honda 16013-ZA0-931

FLOAT SET

$49.99

$

Usually ships in 3-6 days

0

5

Honda 16015-ZA0-931

CHAMBER SET, FLOAT

$80.99

$

Usually ships in 3-6 days

0

6

Honda 16016-ZH8-W01

SCREW SET

$12.99

$

In Stock, only 1 left!

0

7

Honda 16024-124-760

SEE PART DETAILS - PRI; SCREW SET, DRAIN

$14.99

$

Usually ships in 3-6 days

0

8

Honda 16028-ZA0-931

SCREW SET

$27.99

$

In Stock, only 1 left!

0

9

Honda 16044-ZA0-932

SEE PART DETAILS - PRI; CHOKE SET

$

$

Not available

10

Honda 16100-ZA0-D53

CARBURETOR ASSY. (BE77B D)

$

$

Not available

11

Honda 16124-ZE0-005

SCREW, THROTTLE STOP

$17.99

$

In Stock, only 1 left!

0

13

Honda 16166-ZA0-931

NOZZLE, MAIN

$33.99

$

Usually ships in 3-6 days

0

14

Honda 16172-ZE3-W10

COLLAR, SETTING

$10.99

$

Usually ships in 3-6 days

0

15

Honda 16199-ZA0-930

TUBE, AIR VENT

$12.99

$

Usually ships in 3-6 days

0

16

Honda 16200-ZE3-792

VALVE ASSY., SOLENOID

$

$

Not available

17

Honda 16210-ZA0-930

INSULATOR, CARBURETOR

$18.99

$

Usually ships in 3-6 days

0

19

Honda 16221-ZA0-800

SEE PART DETAILS - PRI; GASKET, CARBURETOR

$2.49

$

In Stock, Qty 20+

0

20

Honda 16223-ZA0-800

GASKET, INSULATOR

$2.99

$

In Stock, Qty 20+

0

21

Honda 16226-ZA0-800

GASKET, IN. MANIFOLD

$2.99

$

In Stock, only 2 left!

0

22

Honda 16269-ZA0-800

GASKET, AIR CLEANER

$2.49

$

In Stock, Qty 20+

0

23

Honda 16582-883-300

HOLDER, CONTROL CABLE

$4.49

$

In Stock, only 1 left!

0

24

Honda 16617-890-010

HOLDER, CABLE

$8.49

$

In Stock, only 1 left!

0

25

Honda 17100-ZA0-930

MANIFOLD, IN.

$73.99

$

Usually ships in 3-6 days

0

26

Honda 17214-ZA0-930

PIPE, AIR IN.

$19.99

$

Usually ships in 3-6 days

0

30

Honda 90042-ZA0-930

BOLT, STUD (8X100)

$8.99

$

Usually ships in 3-6 days

0

31

Honda 90605-230-000

CIRCLIP (5MM)

$3.99

$

In Stock, only 3 left!

0

33

Honda 91410-679-000

CLIP (2X60)

$15.99

$

Usually ships in 3-6 days

0

34

Honda 92700-06032-0B

BOLT, STUD (6X32)

$2.49

$

Usually ships in 3-6 days

0

35

Honda 92700-06040-0B

BOLT, STUD (6X40)
(Superseded to 92900-06028-0B)

$2.49

$

Usually ships in 3-6 days

0

35

Honda 92900-06028-0B

BOLT, STUD (6X28)

$2.49

$

Usually ships in 3-6 days

0

36

Honda 93500-04008-0A

SCREW, PAN (4X8)

$1.49

$

In Stock, only 4 left!

0

37

Honda 93500-05010-0A

SCREW, PAN (5X10)

$1.49

$

In Stock, Qty 8

0

38

Honda 93892-05012-08

SCREW-WASHER (5X12)

$1.49

$

In Stock, only 3 left!

0

39

Honda 94050-06080

NUT, FLANGE (6MM)

$0.99

$

In Stock, only 3 left!

0

40

Honda 95001-45003-60M

BULK HOSE, FUEL (4.5X3000) (4.5X300)

$54.99

$

In Stock, only 4 left!

0

41

Honda 95002-02080

CLIP, TUBE (B8)

$2.49

$

In Stock, Qty 20+

0

42

Honda 99101-ZH7-0920

JET, MAIN (#92)

$8.49

$

Usually ships in 3-6 days

0

42

Honda 99101-ZH8-0880

JET, MAIN (#88)

Note: (Optional).

$7.99

$

In Stock, only 1 left!

0

42

Honda 99101-ZH8-0900

SEE PART DETAILS - PRI; JET, MAIN (#90)

Note: (Optional).

$7.99

$

In Stock, only 2 left!

0

43

Honda 99204-ZE2-0400

JET SET, PILOT (#40)

$22.99

$

In Stock, Qty 5

0
