GX360 K1 ES23 (GA01) - Honda Engine, Made in Japan (SN: GA01-1100001 - GA01-1399999) CARBURETOR (2) Parts Diagram

Engine, Made in Japan

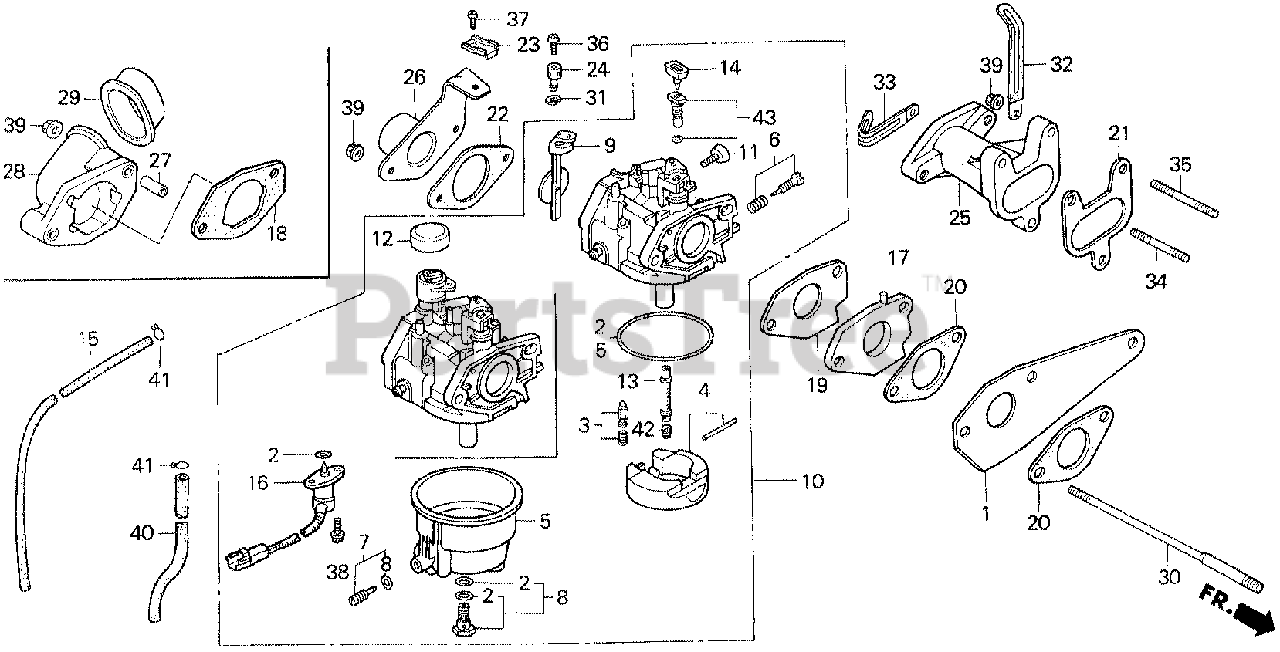

CARBURETOR (2) Parts Diagram

  • Title

1

Honda 11815-ZA0-930

STAY, TIMING BELT (Honda Code 1978329).

$16.99

$

Usually ships in 3-6 days

0

2

Honda 16010-ZA0-931

GASKET SET (Honda Code 2097368).

$22.99

$

In Stock, Qty 5

0

3

Honda 16011-ZA0-931

VALVE SET, FLOAT (Honda Code 2059236).

$43.99

$

Usually ships in 3-6 days

0

4

Honda 16013-ZA0-931

FLOAT SET (Honda Code 2059244).

$49.99

$

Usually ships in 3-6 days

0

5

Honda 16015-ZA0-931

CHAMBER SET, FLOAT (Honda Code 2386241).

$80.99

$

Usually ships in 3-6 days

0

6

Honda 16016-ZH8-W01

SCREW SET (Honda Code 4212387).

$12.99

$

In Stock, only 1 left!

0

7

Honda 16024-124-760

SEE PART DETAILS - PRI; SCREW SET, DRAIN (Honda Code 0640052).

$14.99

$

Usually ships in 3-6 days

0

8

Honda 16028-ZA0-931

SEE PART DETAILS - PRI; SCREW SET B (Honda Code 2097376).

$27.99

$

In Stock, only 1 left!

0

9

Honda 16044-ZA0-932

SEE PART DETAILS - PRI; CHOKE SET (Honda Code 3127032).

$

$

Not available

10

Honda 16100-ZA0-D53

SEE PART DETAILS - PRI; CARBURETOR ASSY. (BE77B D) (Honda Code 5252655).

$

$

Not available

11

Honda 16124-ZE0-005

SCREW, THROTTLE STOP (Honda Code 1441559).

$17.99

$

In Stock, only 1 left!

0

13

Honda 16166-ZA0-931

NOZZLE, MAIN (Honda Code 2097392).

$33.99

$

Usually ships in 3-6 days

0

14

Honda 16172-ZE3-W10

COLLAR, SET (Honda Code 3738358).

$10.99

$

Usually ships in 3-6 days

0

15

Honda 16199-ZA0-930

TUBE, AIR VENT (Honda Code 1978402).

$12.99

$

Usually ships in 3-6 days

0

16

Honda 16200-ZE3-792

VALVE ASSY., SOLENOID (Honda Code 2555092).

$

$

Not available

17

Honda 16210-ZA0-930

INSULATOR, CARBURETOR (Honda Code 1978410).

$18.99

$

Usually ships in 3-6 days

0

19

Honda 16221-ZA0-800

SEE PART DETAILS - PRI; GASKET, CARBURETOR (Honda Code 3678620).

$2.49

$

In Stock, Qty 20+

0

20

Honda 16223-ZA0-800

SEE PART DETAILS - PRI; GASKET, INSULATOR (Honda Code 3678638).

$2.99

$

In Stock, Qty 20+

0

21

Honda 16226-ZA0-800

SEE PART DETAILS - PRI; GASKET, IN. MANIFOLD (Honda Code 4527792).

$2.99

$

In Stock, only 2 left!

0

22

Honda 16269-ZA0-800

SEE PART DETAILS - PRI; GASKET, AIR CLEANER (Honda Code 3755212).

$2.49

$

In Stock, only 2 left!

0

23

Honda 16582-883-300

HOLDER, CONTROL CABLE (Honda Code 0636423).

$4.49

$

In Stock, only 1 left!

0

24

Honda 16617-890-010

SEE PART DETAILS - PRI; HOLDER, CABLE (Honda Code 0760462).

$8.49

$

In Stock, only 1 left!

0

25

Honda 17100-ZA0-930

MANIFOLD, IN. (Honda Code 1972199).

$73.99

$

Usually ships in 3-6 days

0

26

Honda 17214-ZA0-930

PIPE, AIR IN. (Honda Code 1978493).

$19.99

$

Usually ships in 3-6 days

0

30

Honda 90042-ZA0-930

BOLT, STUD (8X100) (Honda Code 1972371).

$8.99

$

Usually ships in 3-6 days

0

31

Honda 90605-230-000

CIRCLIP (5MM) (Honda Code 0138768).

$3.99

$

In Stock, only 3 left!

0

33

Honda 91410-679-000

CLIP (2X60) (Honda Code 0840215).

$15.99

$

Usually ships in 3-6 days

0

34

Honda 92700-06032-0B

SEE PART DETAILS - PRI; BOLT, STUD (6X32) (Honda Code 0438374).

$2.49

$

Usually ships in 3-6 days

0

35

Honda 92900-06028-0B

SEE PART DETAILS - PRI; BOLT, STUD (6X28) (Honda Code 1366616).

$2.49

$

Usually ships in 3-6 days

0

36

Honda 93500-04008-0A

SEE PART DETAILS - PRI; SCREW, PAN (4X8) (Honda Code 0156463).

$1.49

$

In Stock, only 4 left!

0

37

Honda 93500-05010-0A

SEE PART DETAILS - PRI; SCREW, PAN (5X10) (Honda Code 0156976).

$1.49

$

In Stock, Qty 8

0

38

Honda 93892-05012-08

SEE PART DETAILS - PRI; SCREW-WASHER (5X12) (Honda Code 0368621).

$1.49

$

In Stock, only 3 left!

0

39

Honda 94050-06080

SEE PART DETAILS - PRI; NUT, FLANGE (6MM) (Honda Code 0612689).

$0.99

$

In Stock, only 3 left!

0

40

Honda 95001-45003-60M

BULK HOSE, FUEL (4.5X3000) (Honda Code 5137104). (4.5X300)

$54.99

$

In Stock, only 4 left!

0

41

Honda 95002-02080

CLIP, TUBE (B8) (Honda Code 0250647).

$2.49

$

In Stock, only 4 left!

0

42

Honda 99101-ZH8-0880

SEE PART DETAILS - PRI; JET, MAIN (#88) (Honda Code 5945555).

Note: (Optional).

$7.99

$

In Stock, only 1 left!

0

42

Honda 99101-ZH8-0900

SEE PART DETAILS - PRI; JET, MAIN (#90) (Honda Code 5947155).

Note: (Optional).

$7.99

$

In Stock, only 2 left!

0

42

Honda 99101-ZH8-0920

SEE PART DETAILS - PRI; JET, MAIN (#92) (Honda Code 5947163).

$7.99

$

In Stock, only 1 left!

0

43

Honda 99204-ZE2-0400

SEE PART DETAILS - PRI; JET SET, PILOT (#40) (Honda Code 3683141).

$22.99

$

In Stock, Qty 5
