GX360 K1 DD2 (GA01) - Honda Engine, Made in Japan (SN: GA01-1100001 - GA01-1399999) OIL PUMP Parts Diagram
Engine, Made in Japan

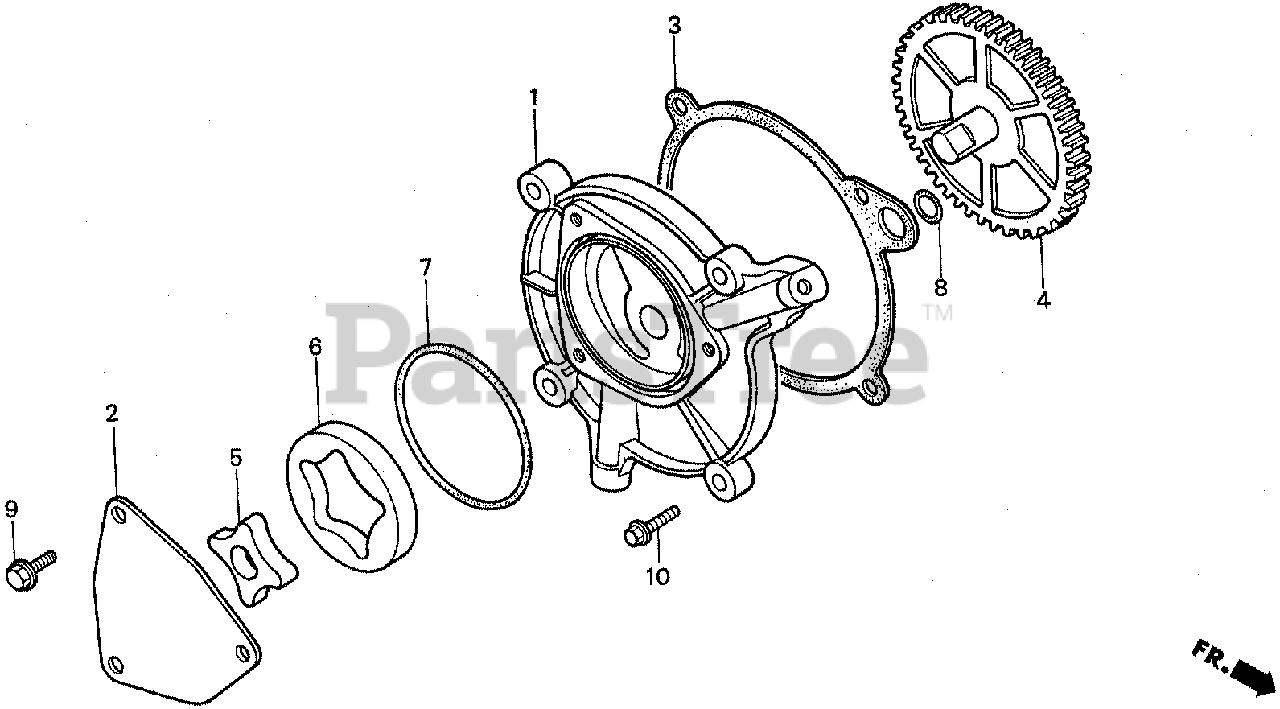

OIL PUMP Parts Diagram
Honda 15111-ZA0-000
BODY, OIL PUMP (Honda Code 4752804).
$116.99
$
Usually ships in 3-6 days
Honda 15116-ZA0-000
COVER, OIL PUMP (Honda Code 1278373).
$13.99
$
Usually ships in 3-6 days
Honda 15138-ZA0-020
SEE PART DETAILS - PRI; GASKET, OIL PUMP (Honda Code 3385770).
$4.99
$
In Stock, Qty 6
Honda 15140-ZA0-980
GEAR ASSY., OIL PUMP (Honda Code 2652824).
$39.99
$
Usually ships in 3-6 days
Honda 15331-ZA0-000
SEE PART DETAILS - PRI; ROTOR (INNER) (Honda Code 1278415).
$19.99
$
Usually ships in 3-6 days
Honda 15332-ZA0-000
ROTOR (OUTER) (Honda Code 1278431).
$23.99
$
Usually ships in 3-6 days
Honda 91301-679-003
SEE PART DETAILS - PRI; O-RING (45X2.5) (ARAI) (Honda Code 2007177).
$6.49
$
In Stock, only 1 left!
Honda 91303-ZA0-000
SEE PART DETAILS - SUP; O-RING, PUMP COVER (Honda Code 1279249).
$
$
Not available
Honda 15142-PH3-003
SEE PART DETAILS - PRI; O-RING (10.8X2.4) (ARAI) (Honda Code 2622355).
$3.99
$
In Stock, only 1 left!
Honda 95701-06012-08
SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) (Honda Code 2170793).
$2.49
$
In Stock, only 1 left!
Honda 95701-06028-08
SEE PART DETAILS - PRI; BOLT, FLANGE (6X28) (Honda Code 2488500).
$2.99
$
Usually ships in 3-6 days
