GX360 K1 DD (GA01) - Honda Engine, Made in Japan (SN: GA01-1100001 - GA01-1399999) WIRE HARNESS Parts Diagram

Engine, Made in Japan

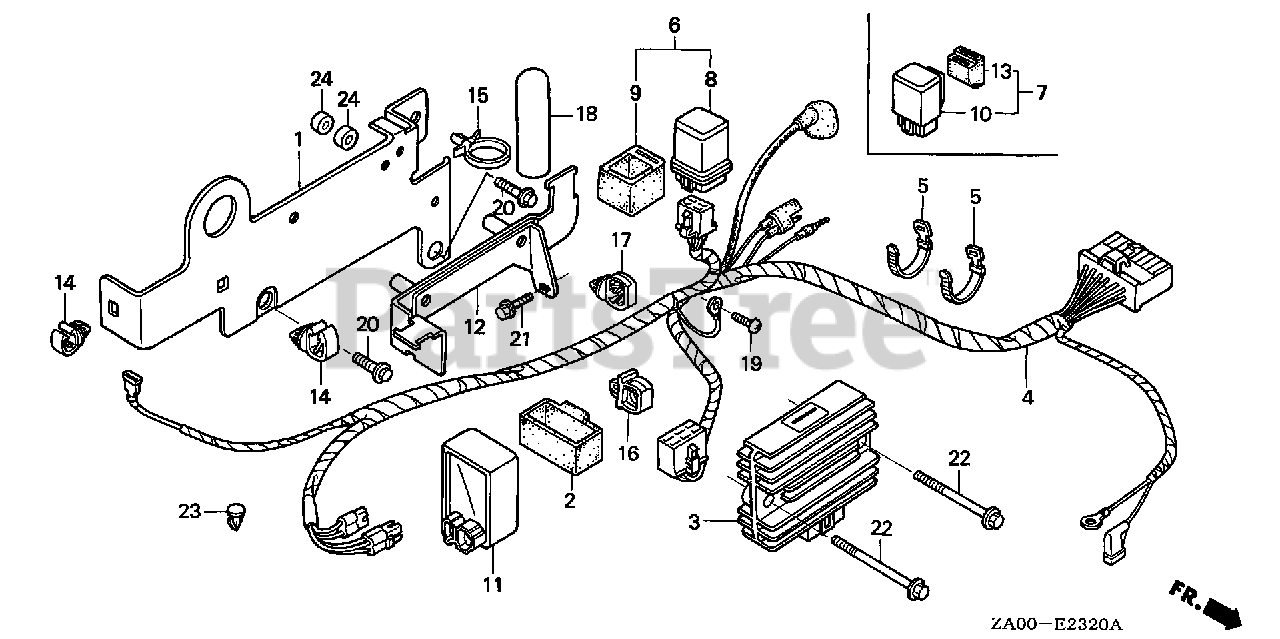

WIRE HARNESS Parts Diagram

  • Title

1

Honda 11803-ZA0-920

HOOK, ENGINE

$40.99

$

Usually ships in 3-6 days

0

2

Honda 30401-VM0-000

CUSHION, IGNITION CONTROL MODULE (CDI)

$6.49

$

Usually ships in 3-6 days

0

3

Honda 31600-ZA0-921

RECTIFIER ASSY., REGULATOR

$249.99

$

Usually ships in 3-6 days

0

4

Honda 32120-ZA0-920

WIRE HARNESS ASSY. (10A)

$155.99

$

Usually ships in 3-6 days

0

5

Honda 32161-367-690

BAND, WIRE

$3.99

$

Usually ships in 3-6 days

0

6

Honda 38350-762-003

SEE PART DETAILS - PRI; RELAY ASSY., CONTROL (10A)

Note: (Optional). Use up to Engine SN 1228264.

$56.99

$

Usually ships in 3-6 days

0

6

Honda 38351-750-003

SEE PART DETAILS - SUP; RELAY, CONTROL
(Superseded to 38350-762-003)

Note: (Optional). Use up to Engine SN 1228264.

$56.99

$

Usually ships in 3-6 days

0

7

Honda 38350-762-003

SEE PART DETAILS - PRI; RELAY ASSY., CONTROL (10A)

Note: (Optional). Use from Engine SN 1228265 to 1271167.

$56.99

$

Usually ships in 3-6 days

0

7

Honda 38350-762-003

SEE PART DETAILS - PRI; RELAY ASSY., CONTROL (10A)

Note: Use from Engine SN 1271168.

$56.99

$

Usually ships in 3-6 days

0

8

Honda 38350-762-003

SEE PART DETAILS - PRI; RELAY ASSY., CONTROL (10A)

Note: (Optional). Use up to Engine SN 1228264.

$56.99

$

Usually ships in 3-6 days

0

8

Honda 38351-750-003

SEE PART DETAILS - SUP; RELAY, CONTROL
(Superseded to 38350-762-003)

Note: (Optional). Use up to Engine SN 1228264.

$56.99

$

Usually ships in 3-6 days

0

9

Honda 38356-750-003

SUSPENSION, CONTROL RELAY

Note: (Optional). Use up to Engine SN 1228264.

$

$

Currently unavailable

10

Honda 38365-MN5-811

RELAY (10A)

Note: (Optional). Use from Engine SN 1228265 to 1271167.

$45.99

$

Usually ships in 3-6 days

0

10

Honda 38365-MN5-811

RELAY (10A)

Note: Use from Engine SN 1271168.

$45.99

$

Usually ships in 3-6 days

0

11

Honda 38470-ZA0-921

ALERT UNIT

$207.99

$

Usually ships in 3-6 days

0

12

Honda 38476-ZA0-920

BRACKET, ALERT UNIT

$9.99

$

Usually ships in 3-6 days

0

13

Honda 38506-751-701

SUSPENSION, STARTER RELAY (TATEISHI)

Note: (Optional). Use from Engine SN 1228265 to 1271167.

$6.49

$

Usually ships in 3-6 days

0

14

Honda 90602-PA6-661

CLIP, WIRE HARNESS

$10.99

$

Usually ships in 3-6 days

0

15

Honda 90617-750-003

CLIP, WIRE HARNESS

$4.99

$

Usually ships in 3-6 days

0

17

Honda 90651-750-801

CLIP, HARNESS (10MM)

$4.49

$

In Stock, only 3 left!

0

18

Honda 91408-890-000

TUBE, CORD (22MM)

$7.49

$

Usually ships in 3-6 days

0

19

Honda 93500-05012-0H

SCREW, PAN (5X12)

$1.49

$

Usually ships in 3-6 days

0

20

Honda 95701-08020-00

BOLT, FLANGE (8X20)

$2.49

$

In Stock, only 3 left!

0

21

Honda 95701-06012-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12)

$2.49

$

In Stock, Qty 20+

0

22

Honda 95701-06045-07

BOLT, FLANGE (6X45)

$2.99

$

In Stock, Qty 10

0
