GX360 K1 DD (GA01) - Honda Engine, Made in Japan (SN: GA01-1100001 - GA01-1399999) RADIATOR Parts Diagram

Engine, Made in Japan

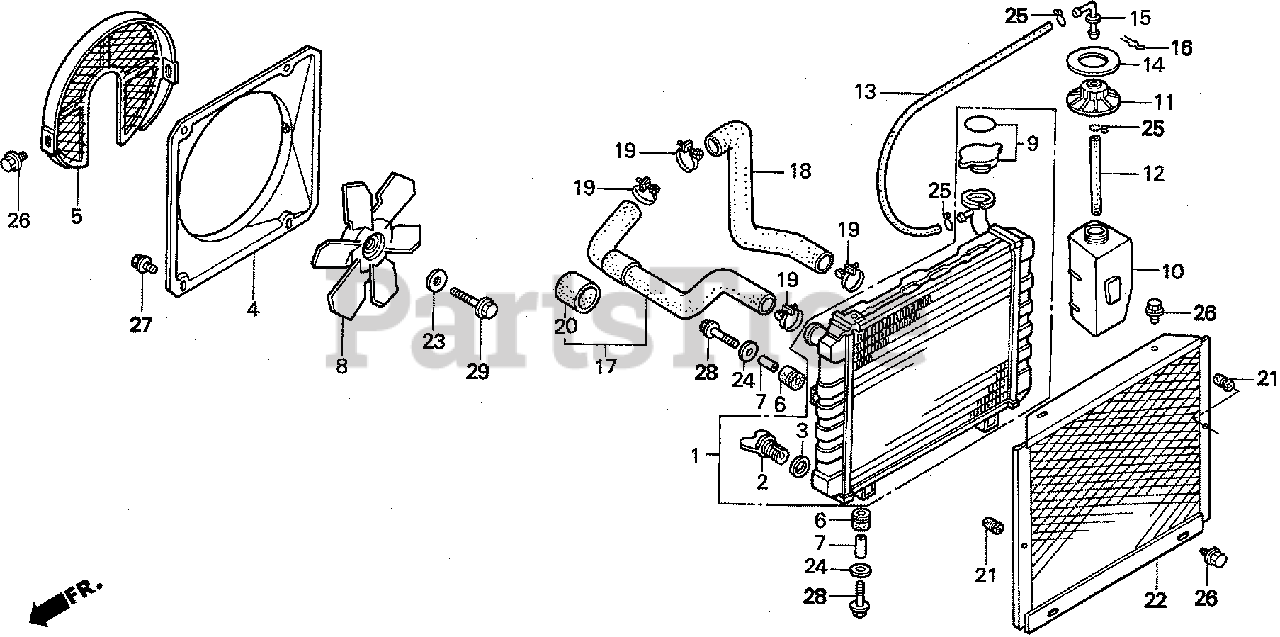

RADIATOR Parts Diagram

  • Title

1

Honda 19010-ZA0-921

RADIATOR (Honda Code 2580215).

$

$

Not available

2

Honda 19011-PA0-004

VALVE, DRAIN (TOYO) (Honda Code 0970830).

$17.99

$

In Stock, only 1 left!

0

3

Honda 19012-PA0-004

GASKET, DRAIN (TOYO) (Honda Code 1001957).

$5.99

$

In Stock, only 1 left!

0

4

Honda 19015-ZA0-921

SHROUD (Honda Code 2580223).

$175.99

$

Usually ships in 3-6 days

0

5

Honda 19021-ZA0-920

COVER, FAN (Honda Code 2580231).

$52.99

$

Usually ships in 3-6 days

0

6

Honda 19021-692-000

RUBBER, RADIATOR MOUNTING (Honda Code 0772939).

Note: Use up to Engine SN 1192599.

$7.49

$

Usually ships in 3-6 days

0

6

Honda 19051-ZA0-000

RUBBER, RADIATOR MOUNTING (Honda Code 4589701).

Note: Use from Engine SN 1192600.

$6.99

$

Usually ships in 3-6 days

0

7

Honda 19024-PA6-000

COLLAR, DISTANCE (Honda Code 1110261).

Note: Use up to Engine SN 1192599.

$

$

Currently unavailable

7

Honda 19024-ZA0-000

COLLAR, DISTANCE (Honda Code 4209771).

Note: Use from Engine SN 1192600.

$4.49

$

Usually ships in 3-6 days

0

8

Honda 19040-MA1-000

FAN, COOLING (Honda Code 1053685).

$74.99

$

Usually ships in 3-6 days

0

9

Honda 19045-692-003

SEE PART DETAILS - PRI; CAP, RADIATOR (DENSO) (Honda Code 0772954).

$56.99

$

Usually ships in 3-6 days

0

10

Honda 19101-PC0-000

TANK ASSY., RESERVE (Honda Code 2580256).

$93.99

$

Usually ships in 3-6 days

0

11

Honda 19102-PA0-020

CAP, RESERVE TANK (Honda Code 1013812).

$

$

Not available

12

Honda 19103-PC0-000

HOSE, RESERVE TANK (Honda Code 1603760).
(Superseded to 19103-PH7-010)

$8.49

$

Usually ships in 3-6 days

0

13

Honda 19104-PC6-010

SEE PART DETAILS - PRI; TUBE, RESERVE TANK (Honda Code 1462548).

$

$

Currently unavailable

14

Honda 19105-PA0-010

SEE PART DETAILS - PRI; MARK, RESERVE TANK (Honda Code 0970905).

$13.99

$

Usually ships in 3-6 days

0

15

Honda 19106-PA0-020

JOINT, RESERVE TANK (Honda Code 1013820).

$4.99

$

Usually ships in 3-6 days

0

16

Honda 19107-PA0-000

CLIP, RESERVE TANK JOINT (Honda Code 0845404).

$26.99

$

Usually ships in 3-6 days

0

17

Honda 19501-ZA0-920

HOSE, WATER (UPPER) (Honda Code 2580272).

$74.99

$

Usually ships in 3-6 days

0

18

Honda 19502-ZA0-920

HOSE, WATER (LOWER) (Honda Code 2580280).

$53.99

$

Usually ships in 3-6 days

0

19

Honda 19511-679-010

SEE PART DETAILS - PRI; CLIP, WATER HOSE (Honda Code 1264076).

$17.99

$

Usually ships in 3-6 days

0

20

Honda 19518-ZA0-920

PROTECTOR, HOSE (Honda Code 2580298).

$10.99

$

Usually ships in 3-6 days

0

21

Honda 50348-HA7-670

RUBBER B, BATTERY HOLDER (Honda Code 2165504).

$4.49

$

Usually ships in 3-6 days

0

22

Honda 63190-ZA0-920

COVER, RADIATOR (Honda Code 2581056).

$184.99

$

Usually ships in 3-6 days

0

23

Honda 90401-MA1-000

WASHER, LOCK (Honda Code 1089515).

$8.49

$

Usually ships in 3-6 days

0

24

Honda 90563-355-000

SEE PART DETAILS - PRI; WASHER, WHEEL (6MM) (Honda Code 0326306).

$4.99

$

Usually ships in 3-6 days

0

25

Honda 95002-70000

CLIP, TUBE (C11) (Honda Code 0053595).

$2.49

$

In Stock, only 4 left!

0

26

Honda 95701-06008-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X8) (Honda Code 2581353).

$4.49

$

In Stock, Qty 20+

0

27

Honda 95700-06012-08

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) (Honda Code 0252254).

$

$

Currently unavailable

27

Honda 95701-06012-08

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) (Honda Code 2170793).

$2.49

$

In Stock, only 1 left!

0

28

Honda 95701-06035-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X35) (Honda Code 2105864).

$2.49

$

In Stock, only 2 left!

0

29

Honda 95701-08028-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X28) (Honda Code 2581387).

$1.99

$

In Stock, only 4 left!

0
