GX360 K1 DD (GA01) - Honda Engine, Made in Japan (SN: GA01-1100001 - GA01-1399999) CYLINDER (1) Parts Diagram

Engine, Made in Japan

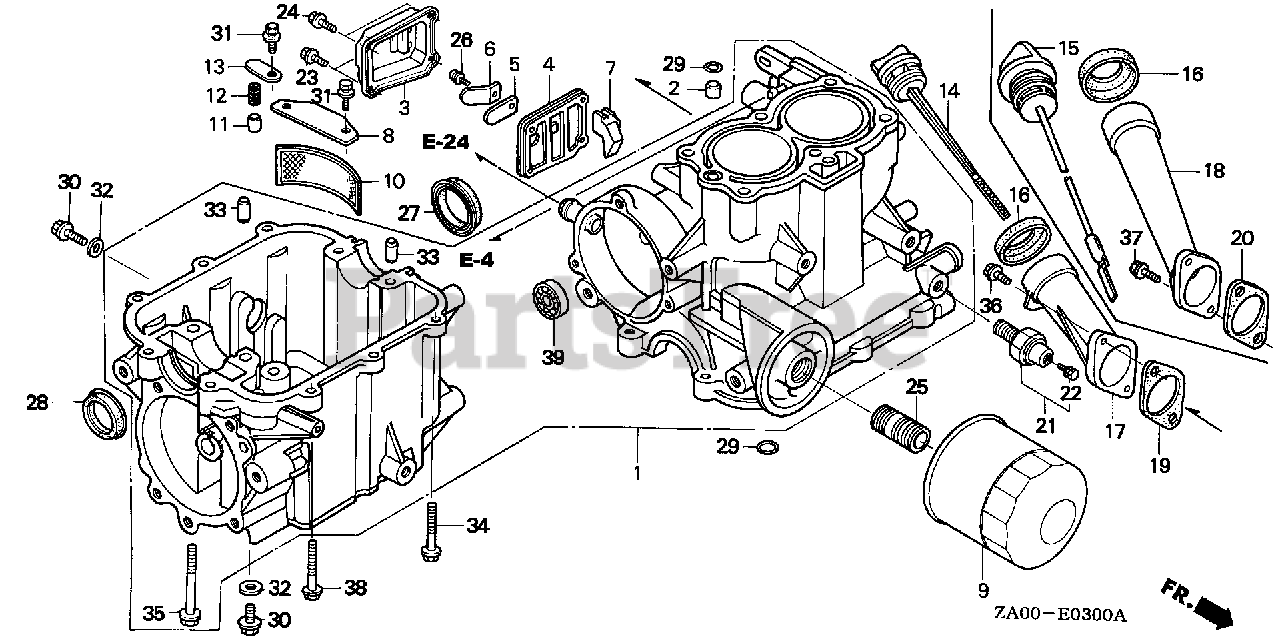

CYLINDER (1) Parts Diagram

  • Title

1

Honda 12000-ZA0-406

CYLINDER ASSY.

Note: Use from Engine SN 1356704.

$1368.99

$

Usually ships in 3-6 days

0

1

Honda 12000-ZA0-920

CYLINDER ASSY.

Note: Use up to Engine SN 1356703.

$

$

Not available

2

Honda 12125-ZA0-010

SEE PART DETAILS - PRI; ORIFICE, OIL CONTROL

$3.49

$

In Stock, only 1 left!

0

3

Honda 12360-ZA0-700

COVER, BREATHER

$25.99

$

Usually ships in 3-6 days

0

4

Honda 12370-ZA0-981

PLATE, BREATHER

$19.99

$

Usually ships in 3-6 days

0

5

Honda 12372-ZA0-701

PLATE, VALVE

$8.99

$

Usually ships in 3-6 days

0

6

Honda 12374-ZA0-701

STOPPER, VALVE

$4.99

$

Usually ships in 3-6 days

0

7

Honda 12376-ZA0-980

GUARD, BREATHER

$12.99

$

Usually ships in 3-6 days

0

8

Honda 15334-ZA0-000

PLATE, OIL FILTER

$10.99

$

Usually ships in 3-6 days

0

9

Honda 15400-PFB-004

SEE PART DETAILS - SUP; FILTER, OIL (TOYO ROKI)
(Superseded to 15400-ZZ3-003)

Note: Use up to Engine SN 1361802.

$24.99

$

Usually ships in 3-6 days

0

9

Honda 15400-PFB-014

SEE PART DETAILS - PRI; FILTER, OIL (TOYO ROKI)
(Superseded to 15400-ZZ3-003)

Note: Use up to Engine SN 1361802.

$24.99

$

Usually ships in 3-6 days

0

9

Honda 15400-PM3-004

SEE PART DETAILS - SUP; FILTER, OIL (TOYO ROKI)
(Superseded to 15400-ZZ3-003)

Note: Use up to Engine SN 1361802.

$24.99

$

Usually ships in 3-6 days

0

9

Honda 15400-ZA0-003

FILTER, OIL (TOKYO ROKI)

Note: Use from Engine SN 1361803.

$28.99

$

In Stock, only 1 left!

0

10

Honda 15421-ZA0-000

SCREEN, OIL FILTER

$18.99

$

Usually ships in 3-6 days

0

11

Honda 15473-ZA0-000

VALVE, CHECK

$11.99

$

Usually ships in 3-6 days

0

12

Honda 15474-881-000

SPRING, CHECK VALVE

$6.49

$

Usually ships in 3-6 days

0

13

Honda 15475-ZA0-000

PLATE, CHECK VALVE

$4.99

$

Usually ships in 3-6 days

0

14

Honda 15620-ZA0-920

CAP, OIL FILLER

$14.99

$

Usually ships in 3-6 days

0

16

Honda 15625-ZE8-000

GASKET, OIL FILLER CAP

$5.49

$

In Stock, only 1 left!

0

17

Honda 15632-ZA0-920

PIPE, OIL FILLER

$49.99

$

Usually ships in 3-6 days

0

19

Honda 15635-ZA0-800

GASKET, OIL PIPE

$4.49

$

Usually ships in 3-6 days

0

21

Honda 37240-ZA0-013

SWITCH, OIL PRESSURE

$47.99

$

Usually ships in 3-6 days

0

22

Honda 90002-PA6-003

BOLT-WASHER (4X8) (DENSO)

$7.99

$

Usually ships in 3-6 days

0

23

Honda 90013-883-000

BOLT, FLANGE (6X12) (CT200)

Note: Use from Engine SN 1267849.

$2.49

$

In Stock, Qty 17

0

23

Honda 90014-952-000

BOLT, FLANGE (6X14) (CT200)

Note: Use up to Engine SN 1267848.

$3.49

$

In Stock, only 3 left!

0

24

Honda 90014-952-000

BOLT, FLANGE (6X14) (CT200)

$3.49

$

In Stock, only 3 left!

0

25

Honda 90015-590-000

HOLDER, OIL FILTER

$20.99

$

Usually ships in 3-6 days

0

26

Honda 90092-657-000

SCREW-WASHER (5X8)

$2.99

$

In Stock, only 4 left!

0

27

Honda 91201-ZA0-003

OIL SEAL (33X48X7)

$15.99

$

In Stock, only 1 left!

0

28

Honda 91205-ZA0-003

OIL SEAL (30X44X7)

$13.99

$

In Stock, only 4 left!

0

29

Honda 15142-PH3-003

SEE PART DETAILS - PRI; O-RING (10.8X2.4) (ARAI)

$3.99

$

In Stock, only 1 left!

0

30

Honda 92800-12000

BOLT, DRAIN PLUG (12MM)

$5.49

$

In Stock, only 2 left!

0

31

Honda 93402-06012-08

BOLT-WASHER (6X12)

$2.49

$

Usually ships in 3-6 days

0

32

Honda 94109-12000

WASHER, DRAIN PLUG (12MM)

$1.49

$

In Stock, Qty 20+

0

33

Honda 94301-10160

PIN, DOWEL (10X16)

$3.49

$

In Stock, only 3 left!

0

34

Honda 95701-06028-08

BOLT, FLANGE (6X28)

$2.99

$

Usually ships in 3-6 days

0

35

Honda 95701-08055-00

BOLT, FLANGE (8X55)

$3.49

$

In Stock, only 2 left!

0

36

Honda 95701-06016-00

BOLT, FLANGE (6X16)

$2.49

$

Usually ships in 3-6 days

0

38

Honda 95701-06032-08

BOLT, FLANGE (6X32)

$2.49

$

In Stock, only 2 left!

0

39

Honda 96100-62020-00

BEARING, RADIAL BALL (6202)

$12.99

$

In Stock, only 3 left!

0
