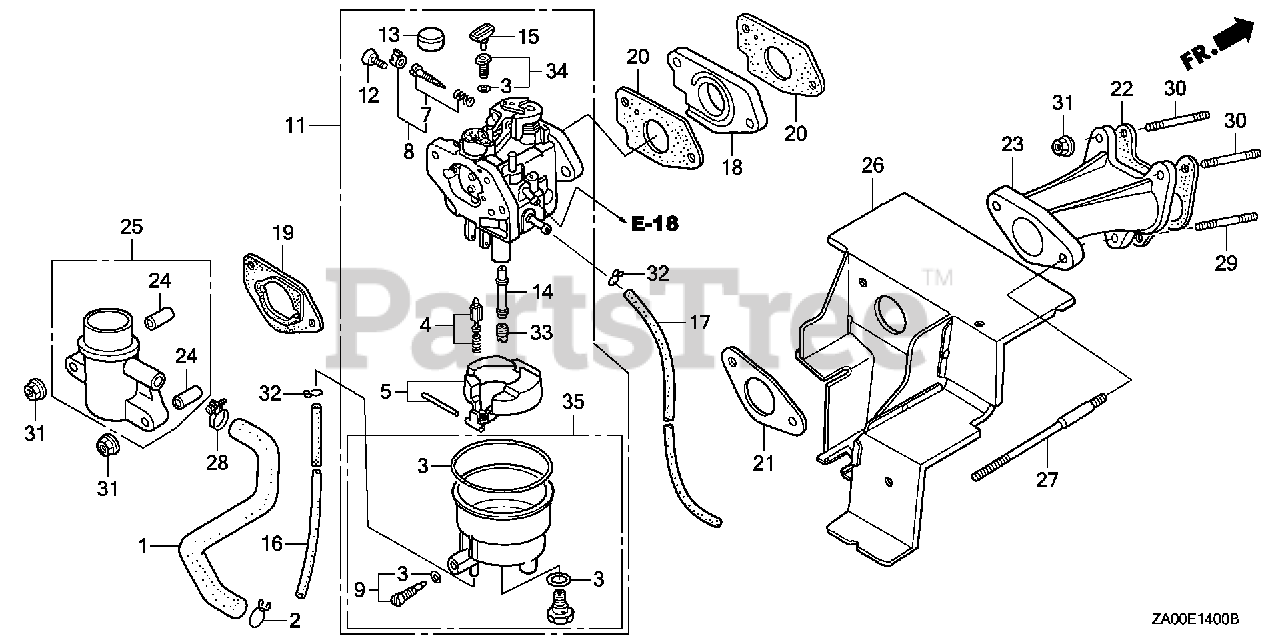

GX360 K1 DD (GA01) - Honda Engine, Made in Japan (SN: GA01-1100001 - GA01-1399999) CARBURETOR (1) Parts Diagram

Engine, Made in Japan

CARBURETOR (1) Parts Diagram

  • Title

1

Honda 12315-ZA0-700

TUBE, BREATHER

$11.99

$

Usually ships in 3-6 days

0

2

Honda 15772-551-000

CLIP, BREATHER TUBE

$2.99

$

In Stock, Qty 5

0

3

Honda 16010-ZA0-921

GASKET SET

$19.99

$

In Stock, only 3 left!

0

4

Honda 16011-ZA0-931

VALVE SET, FLOAT

$45.99

$

In Stock, only 1 left!

0

5

Honda 16013-ZA0-931

FLOAT SET

$51.99

$

In Stock, only 1 left!

0

6

Honda 16015-ZA0-931

CHAMBER SET, FLOAT

$83.99

$

Usually ships in 3-6 days

0

7

Honda 16016-ZE0-005

SCREW SET, PILOT (CARBURETOR NO.)

Note: Use up to Engine SN BE27B D.

$15.99

$

In Stock, only 1 left!

0

8

Honda 16016-ZH7-W01

SCREW SET, PILOT (CARBURETOR NO.)

Note: Use from Engine SN BE27B E.

$21.99

$

Usually ships in 3-6 days

0

9

Honda 16024-124-760

SEE PART DETAILS - PRI; SCREW SET, DRAIN

$15.99

$

Usually ships in 3-6 days

0

10

Honda 16028-ZA0-701

SCREW SET
(Superseded to 06160-Z1C-325)

$24.99

$

In Stock, only 2 left!

0

11

Honda 16100-ZA0-923

SEE PART DETAILS - SUP; CARBURETOR ASSY. (BE27B C/D)
(Superseded to 16100-ZA0-924)

Note: Use up to Engine SN 1367966.

$170.99

$

Usually ships in 3-6 days

0

11

Honda 16100-ZA0-924

SEE PART DETAILS - PRI; CARBURETOR ASSY. (BE27B E)

$170.99

$

Usually ships in 3-6 days

0

12

Honda 16124-ZE0-005

SCREW, THROTTLE STOP

$17.99

$

In Stock, only 1 left!

0

13

Honda 16148-141-881

CAP, CHOKE DUST

$6.99

$

In Stock, only 1 left!

0

14

Honda 16166-ZA0-702

NOZZLE, MAIN

$36.99

$

Usually ships in 3-6 days

0

15

Honda 16172-ZE3-W10

COLLAR, SETTING

$10.99

$

Usually ships in 3-6 days

0

16

Honda 16198-ZA0-700

TUBE, FUEL DRAIN

$18.99

$

Usually ships in 3-6 days

0

17

Honda 16199-ZA0-700

TUBE, AIR VENT

$19.99

$

Usually ships in 3-6 days

0

18

Honda 16211-ZA0-700

INSULATOR, CARBURETOR

$17.99

$

Usually ships in 3-6 days

0

19

Honda 16220-ZA0-702

SEE PART DETAILS - PRI; SPACER, CARBURETOR

$11.99

$

In Stock, only 4 left!

0

20

Honda 16221-ZA0-800

SEE PART DETAILS - PRI; GASKET, CARBURETOR

$2.49

$

In Stock, Qty 20+

0

21

Honda 16223-ZA0-800

GASKET, INSULATOR

$2.99

$

In Stock, Qty 19

0

22

Honda 16226-ZA0-800

GASKET, IN. MANIFOLD

$3.49

$

In Stock, only 2 left!

0

23

Honda 17100-ZA0-700

MANIFOLD, IN.

$78.99

$

Usually ships in 3-6 days

0

24

Honda 17238-ZE1-000

COLLAR, AIR CLEANER

$5.99

$

Usually ships in 3-6 days

0

25

Honda 17410-ZA0-701

ELBOW, AIR CLEANER

$30.99

$

Usually ships in 3-6 days

0

26

Honda 18200-ZA0-800

SEE PART DETAILS - PRI; COVER ASSY., EX.

$129.99

$

Usually ships in 3-6 days

0

27

Honda 90042-ZE2-000

BOLT, STUD (8X123)

$9.49

$

Usually ships in 3-6 days

0

28

Honda 91410-ZA0-010

CLIP A18, TUBE

$3.49

$

Usually ships in 3-6 days

0

29

Honda 92700-06032-0B

BOLT, STUD (6X32)

$2.49

$

Usually ships in 3-6 days

0

30

Honda 92700-06040-0B

BOLT, STUD (6X40)
(Superseded to 92900-06028-0B)

$2.49

$

Usually ships in 3-6 days

0

30

Honda 92900-06028-0B

BOLT, STUD (6X28)

$2.49

$

Usually ships in 3-6 days

0

31

Honda 94050-06080

NUT, FLANGE (6MM)

$0.99

$

In Stock, only 3 left!

0

32

Honda 95002-02080

CLIP, TUBE (B8)

$2.49

$

In Stock, Qty 20+

0

33

Honda 99101-ZH8-0820

SEE PART DETAILS - PRI; JET, MAIN (#82)

Note: (Optional).

$8.49

$

Usually ships in 3-6 days

0

33

Honda 99101-ZH8-0850

SEE PART DETAILS - PRI; JET, MAIN (#85)

Note: (Optional).

$8.49

$

Usually ships in 3-6 days

0

33

Honda 99101-ZH8-0880

JET, MAIN (#88)

$8.49

$

In Stock, only 1 left!

0

34

Honda 99204-ZA0-0450

JET SET, PILOT (#45)

$25.99

$

In Stock, only 1 left!

0

35

Honda 06160-Z1C-305

BOLT KIT, FUEL CHAMBER
(Superseded to 06160-Z1C-325)

$24.99

$

In Stock, only 2 left!

0
