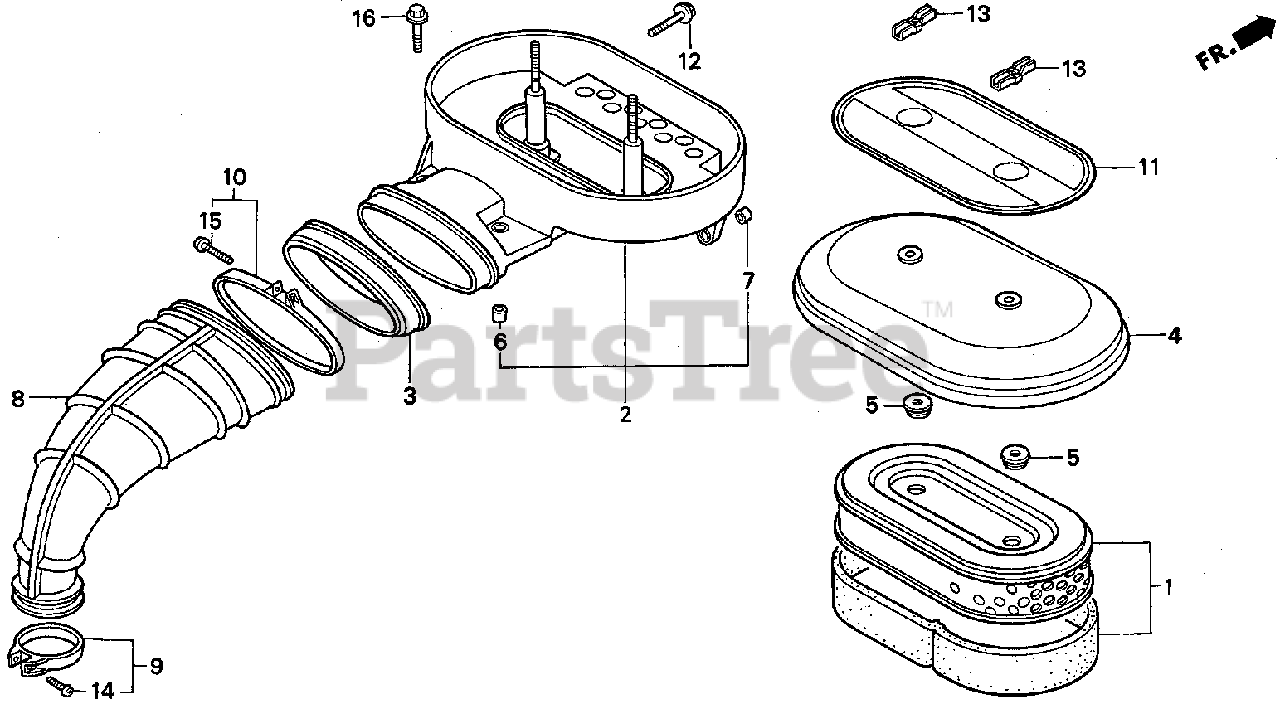

GX360 K1 DD (GA01) - Honda Engine, Made in Japan (SN: GA01-1100001 - GA01-1399999) AIR CLEANER Parts Diagram

Engine, Made in Japan

AIR CLEANER Parts Diagram

  • Title

1

Honda 17210-ZA0-506

SEE PART DETAILS - PRI; ELEMENT, AIR CLEANER (DUAL) (Honda Code 5168273).
(Superseded to 17210-ZA0-306)

$55.99

$

Usually ships in 3-6 days

0

2

Honda 17220-ZA0-700

HOUSING, AIR CLEANER (Honda Code 2051787).

$108.99

$

Usually ships in 3-6 days

0

3

Honda 17222-ZA0-305

SUPPORTER, AIR CLEANER (Honda Code 3415072).

Note: (Optional).

$

$

Currently unavailable

4

Honda 17231-ZA0-700

COVER, AIR CLEANER (Honda Code 2051795).

$46.99

$

Usually ships in 3-6 days

0

5

Honda 17232-891-000

GROMMET, AIR CLEANER (Honda Code 0999763).

$5.99

$

In Stock, Qty 15

0

6

Honda 17238-ZA0-700

COLLAR A, AIR CLEANER (Honda Code 2051803).

$5.49

$

Usually ships in 3-6 days

0

7

Honda 17239-ZE1-000

COLLAR B, AIR CLEANER (Honda Code 1427533).

$4.99

$

In Stock, Qty 7

0

8

Honda 17251-ZA0-700

TUBE, AIR CLEANER CONNECTING (Honda Code 2051811).

$51.99

$

Usually ships in 3-6 days

0

9

Honda 17255-ZA0-000

BAND, CONNECTING TUBE (Honda Code 1355072).

$10.99

$

Usually ships in 3-6 days

0

10

Honda 17260-ZA0-700

BAND ASSY., CONNECTING TUBE (Honda Code 2058527).

$15.99

$

Usually ships in 3-6 days

0

11

Honda 87101-ZA0-920

EMBLEM (Honda Code 2581122).
(Superseded to 87101-ZA0-921)

$11.99

$

Usually ships in 3-6 days

0

12

Honda 90121-952-000

BOLT, FLANGE (6X25) (Honda Code 0748111).

$2.99

$

In Stock, Qty 20+

0

13

Honda 90203-PB2-000

SEE PART DETAILS - PRI; WINGNUT, AIR CLEANER COVER (Honda Code 0994855).

$10.99

$

In Stock, only 3 left!

0

14

Honda 93500-04016-0A

SEE PART DETAILS - PRI; SCREW, PAN (4X26) (Honda Code 0173682).

$1.49

$

In Stock, Qty 7

0

15

Honda 93500-04025-0A

SEE PART DETAILS - PRI; SCREW, PAN (4X25) (Honda Code 0188367).

$2.49

$

Usually ships in 3-6 days

0

16

Honda 95701-06035-08

SEE PART DETAILS - PRI; BOLT, FLANGE (6X35) (Honda Code 2170801).

$2.49

$

In Stock, only 4 left!

0
