GX360 K1 DD/A (GA01) - Honda Engine, Made in Japan (SN: GA01-1400001 - GA01-9999999) TIMING BELT@WATER PUMP Parts Diagram

Engine, Made in Japan

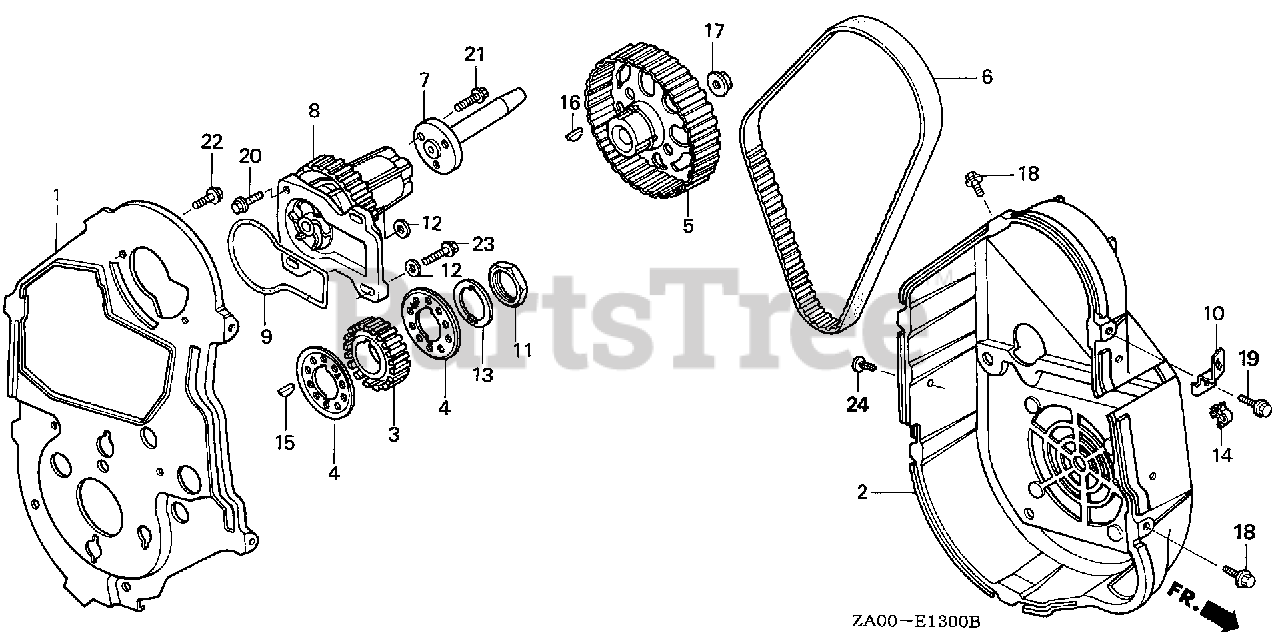

TIMING BELT@WATER PUMP Parts Diagram

  • Title

1

Honda 11810-ZA0-930

COVER B, TIMING BELT (Honda Code 1978311).

$110.99

$

Usually ships in 3-6 days

0

2

Honda 11820-ZA0-920

COVER A, TIMING BELT (Honda Code 2579902).

$151.99

$

Usually ships in 3-6 days

0

3

Honda 14311-ZA0-005

PULLEY, TIMING (Honda Code 1279298).

$42.99

$

Usually ships in 3-6 days

0

4

Honda 14312-ZA0-000

FLANGE, TIMING PULLEY (Honda Code 1279314).

$5.99

$

Usually ships in 3-6 days

0

5

Honda 14320-ZA0-701

PULLEY, CAMSHAFT (Honda Code 2579993).

$98.99

$

Usually ships in 3-6 days

0

6

Honda 14400-ZA0-003

BELT, TIMING (Honda Code 1278290).

$61.99

$

In Stock, only 1 left!

0

7

Honda 19030-ZA0-920

SHAFT, COOLING FAN (Honda Code 2580249).

$47.99

$

Usually ships in 3-6 days

0

8

Honda 19200-ZA0-020

SEE PART DETAILS - PRI; WATER PUMP

$211.99

$

Usually ships in 3-6 days

0

9

Honda 19222-ZA0-004

O-RING, WATER PUMP (Honda Code 1277839).

$5.99

$

Usually ships in 3-6 days

0

10

Honda 38686-ZA0-700

BRACKET, IGNITION WIRE CLIP (Honda Code 2059715).

$5.99

$

Usually ships in 3-6 days

0

11

Honda 90202-ZA0-000

NUT, LOCK (30MM) (Honda Code 1279165).

$9.99

$

Usually ships in 3-6 days

0

12

Honda 90401-ZA0-000

WASHER, PLAIN (6.5X15) (Honda Code 1279173).

$1.49

$

Usually ships in 3-6 days

0

13

Honda 90451-ZA0-000

WASHER, LOCK (30MM) (Honda Code 1279199).

$5.49

$

Usually ships in 3-6 days

0

14

Honda 90660-ZA0-600

CLIP, ENGINE STOP SWITCH CORD (Honda Code 2081271).

$3.49

$

Usually ships in 3-6 days

0

15

Honda 90741-ZE2-000

KEY, SPECIAL WOODRUFF (25X18) (Honda Code 2027159).

$3.99

$

In Stock, Qty 17

0

16

Honda 90741-921-000

SEE PART DETAILS - SUP; KEY, CAM PULLEY
(Superseded to 90741-969-000)

$

$

Not available

17

Honda 94050-10080

SEE PART DETAILS - PRI; NUT, FLANGE (10MM) (Honda Code 0623405).

$3.99

$

In Stock, Qty 20+

0

18

Honda 95701-06010-08

SEE PART DETAILS - PRI; BOLT, FLANGE (6X10) (Honda Code 2204709).

$2.49

$

In Stock, Qty 19

0

19

Honda 95701-06012-08

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) Use from Engine SN 2086984.

$2.49

$

In Stock, only 1 left!

0

20

Honda 95701-06022-08

SEE PART DETAILS - PRI; BOLT, FLANGE (6X22) (Honda Code 2129682).

$2.49

$

Usually ships in 3-6 days

0

21

Honda 95701-06020-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X20) (Honda Code 2105815).

$2.49

$

In Stock, Qty 9

0

22

Honda 96001-06012-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) (Honda Code 2105930).

$2.49

$

In Stock, Qty 5

0

23

Honda 96001-06022-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X22) (Honda Code 2112191).

$1.99

$

In Stock, only 3 left!

0
