GX360 K1 DD/A (GA01) - Honda Engine, Made in Japan (SN: GA01-1400001 - GA01-9999999) THERMOSTAT Parts Diagram

Engine, Made in Japan

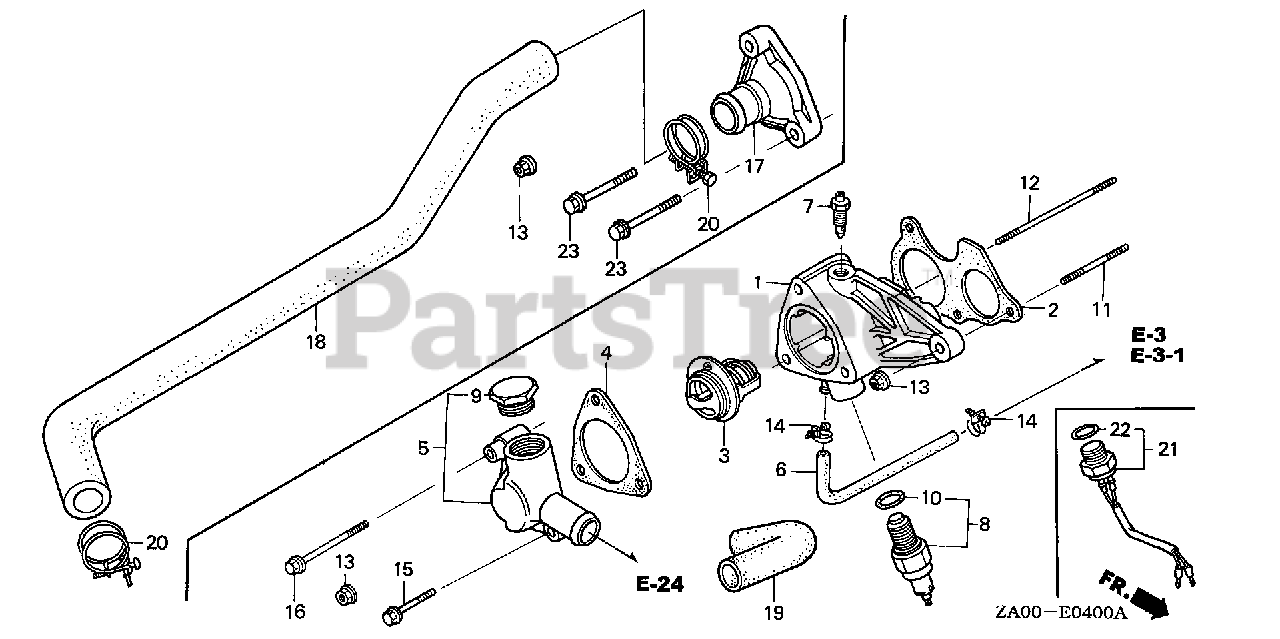

THERMOSTAT Parts Diagram

  • Title

1

Honda 16560-ZA0-920

CASE, THERMOSTAT (Honda Code 2580074).

$112.99

$

Usually ships in 3-6 days

0

2

Honda 16563-ZA0-800

SEE PART DETAILS - PRI; GASKET, GOVERNOR CASE (Honda Code 4424255).

$8.99

$

In Stock, only 2 left!

0

3

Honda 19310-ZA0-701

SEE PART DETAILS - PRI; THERMOSTAT ASSY. (Honda Code 1978634).

$65.99

$

In Stock, only 1 left!

0

4

Honda 19318-ZA0-800

SEE PART DETAILS - PRI; GASKET, THERMOSTAT COVER (Honda Code 4011300).

$4.99

$

In Stock, only 3 left!

0

5

Honda 19320-ZA0-920

COVER, THERMOSTAT (Honda Code 2580264).

$63.99

$

Usually ships in 3-6 days

0

6

Honda 19508-ZA0-000

HOSE, WATER BYPASS (Honda Code 1279009).

$8.49

$

In Stock, only 1 left!

0

7

Honda 19516-PC1-000

SEE PART DETAILS - PRI; BOLT, BREATHING WATER

$27.99

$

Usually ships in 3-6 days

0

8

Honda 37760-KM9-000

SWITCH ASSY., THERMOSTAT (Honda Code 2580645).

$100.99

$

Usually ships in 3-6 days

0

9

Honda 90081-ZA0-920

BOLT, SEALING (25MM) (Honda Code 2583847).

$9.49

$

Usually ships in 3-6 days

0

10

Honda 91307-PH7-660

SEE PART DETAILS - PRI; O-RING (13.5X1.4) (Honda Code 2514651).

$3.99

$

In Stock, only 2 left!

0

11

Honda 92900-06025-1B

BOLT, STUD (6X25) (Honda Code 1590645).

$2.49

$

Usually ships in 3-6 days

0

12

Honda 92900-06060-0B

BOLT, STUD (6X60) (Honda Code 1979178).

$2.99

$

Usually ships in 3-6 days

0

13

Honda 94050-06080

SEE PART DETAILS - PRI; NUT, FLANGE (6MM) (Honda Code 0612689).

$0.99

$

In Stock, only 3 left!

0

14

Honda 95002-41250-08

CLIP, TUBE (D12.5) (Honda Code 0665257).

$3.49

$

Usually ships in 3-6 days

0

15

Honda 95701-06065-08

SEE PART DETAILS - PRI; BOLT, FLANGE (6X65) (Honda Code 2602233).

$2.99

$

Usually ships in 3-6 days

0

16

Honda 95701-06090-08

SEE PART DETAILS - PRI; BOLT, FLANGE (6X90)

$2.49

$

Usually ships in 3-6 days

0
