GX360 K1 DD/A (GA01) - Honda Engine, Made in Japan (SN: GA01-1400001 - GA01-9999999) CYLINDER HEAD Parts Diagram

Engine, Made in Japan

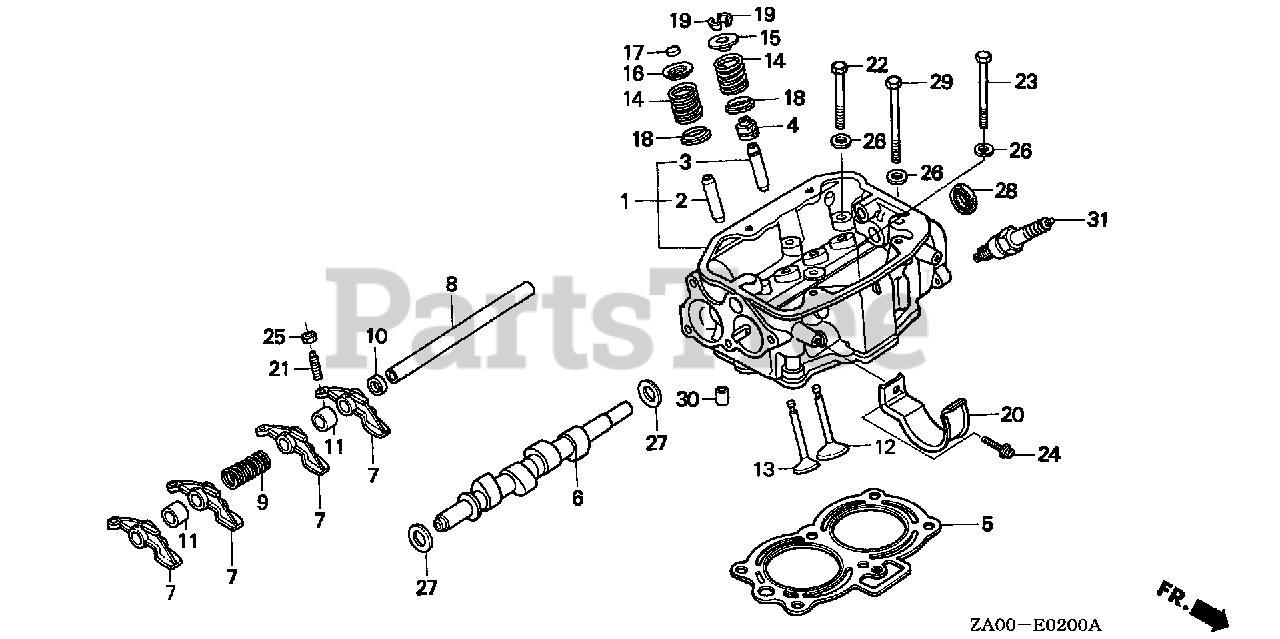

CYLINDER HEAD Parts Diagram

  • Title

1

Honda 122A0-ZA0-702

SEE PART DETAILS - PRI; CYLINDER HEAD (Honda Code 3385721).

$

$

Not available

2

Honda 12204-ZA0-315

SEE PART DETAILS - PRI; GUIDE, EX. VALVE (Honda Code 2161057).

Note: (Optional).

$15.99

$

In Stock, only 1 left!

0

3

Honda 12205-ZA0-306

SEE PART DETAILS - PRI; GUIDE, VALVE (OS) (Honda Code 4454526).

Note: (Optional).

$17.99

$

Usually ships in 3-6 days

0

4

Honda 12209-422-005

SEAL, VALVE STEM (Honda Code 0688887).

$19.99

$

In Stock, only 2 left!

0

5

Honda 12251-ZA0-800

SEE PART DETAILS - PRI; GASKET, CYLINDER HEAD (Honda Code 4426664).

$75.99

$

In Stock, only 1 left!

0

6

Honda 14101-ZA0-701

CAMSHAFT (Honda Code 2579985).

$179.99

$

Usually ships in 3-6 days

0

7

Honda 14431-ZA0-010

SEE PART DETAILS - PRI; ARM, VALVE ROCKER (Honda Code 3047545).

$21.99

$

Usually ships in 3-6 days

0

8

Honda 14451-881-000

SHAFT, VALVE ROCKER ARM (Honda Code 0497339).

$23.99

$

Usually ships in 3-6 days

0

9

Honda 14481-881-000

SPRING, VALVE ROCKER ARM (Honda Code 0497347).

$6.49

$

Usually ships in 3-6 days

0

10

Honda 14482-881-000

COLLAR A, VALVE ROCKER ARM (Honda Code 0497354).

$3.99

$

Usually ships in 3-6 days

0

11

Honda 14483-881-000

COLLAR B, VALVE ROCKER ARM (Honda Code 0497362).

$4.99

$

Usually ships in 3-6 days

0

12

Honda 14711-ZA0-003

SEE PART DETAILS - PRI; VALVE, IN. (Honda Code 1504893).

$21.99

$

Usually ships in 3-6 days

0

13

Honda 14721-ZA0-013

SEE PART DETAILS - PRI; VALVE, EX. (Honda Code 2077246).

$43.99

$

Usually ships in 3-6 days

0

14

Honda 14753-921-010

SPRING, VALVE (Honda Code 0282731).

$6.49

$

Usually ships in 3-6 days

0

15

Honda 14771-881-000

RETAINER, VALVE SPRING (Honda Code 0814327).

$5.99

$

In Stock, only 2 left!

0

16

Honda 14771-935-810

RETAINER, VALVE SPRING (Honda Code 0443689).

$11.99

$

Usually ships in 3-6 days

0

17

Honda 14772-881-000

ROTATOR, VALVE (Honda Code 0497396).

$5.49

$

Usually ships in 3-6 days

0

18

Honda 14775-921-000

SEAT, VALVE SPRING (Honda Code 0282749).

$2.49

$

In Stock, only 4 left!

0

19

Honda 14781-001-004

COTTER, VALVE (Honda Code 4647442).

$7.99

$

Usually ships in 3-6 days

0

20

Honda 19519-ZA0-920

CLAMP, WATER HOSE (Honda Code 2580306).

$9.49

$

Usually ships in 3-6 days

0

21

Honda 90012-333-000

SCREW, TAPPET ADJ. (Honda Code 0294819).

$3.99

$

In Stock, Qty 15

0

22

Honda 90017-935-000

BOLT, HEAD (8X70) (Honda Code 0327650).

$2.99

$

Usually ships in 3-6 days

0

23

Honda 90019-881-000

BOLT, HEX. (8X55) (Honda Code 0648105).

$3.49

$

Usually ships in 3-6 days

0

24

Honda 90121-952-000

SEE PART DETAILS - PRI; BOLT, FLANGE (6X25) Use up to Engine SN 2056819.

$2.99

$

In Stock, Qty 20+

0

25

Honda 90206-001-000

NUT, TAPPET ADJ. (Honda Code 0004598).

$2.49

$

In Stock, Qty 20+

0

26

Honda 90402-822-000

WASHER, HEAD (8MM) (Honda Code 0122101).

$1.99

$

Usually ships in 3-6 days

0

27

Honda 90453-235-000

WASHER, THRUST (16MM) (Honda Code 0147645).

$2.49

$

In Stock, only 4 left!

0

28

Honda 91206-921-000

OIL SEAL (16X28X6) (Honda Code 0285429).

$9.49

$

Usually ships in 3-6 days

0

29

Honda 92201-08100-0H

BOLT, HEX. (8X100) (Honda Code 4145264).

$2.99

$

Usually ships in 3-6 days

0

30

Honda 94301-10160

SEE PART DETAILS - PRI; PIN A, DOWEL (10X16) (Honda Code 0058206).

$3.49

$

In Stock, only 3 left!

0

31

Honda 98076-54747

SEE PART DETAILS - PRI; SPARK PLUG (BPR4HS) (NGK) (Honda Code 2060440).

$3.99

$

In Stock, only 3 left!

0

31

Honda 98076-55747

SEE PART DETAILS - PRI; SPARK PLUG (BPR5HS) (NGK) (Honda Code 2060457).

Note: (Optional).

$3.99

$

In Stock, Qty 9

0
