GX360 K1 DD/A (GA01) - Honda Engine, Made in Japan (SN: GA01-1400001 - GA01-9999999) CYLINDER (1) Parts Diagram

Engine, Made in Japan

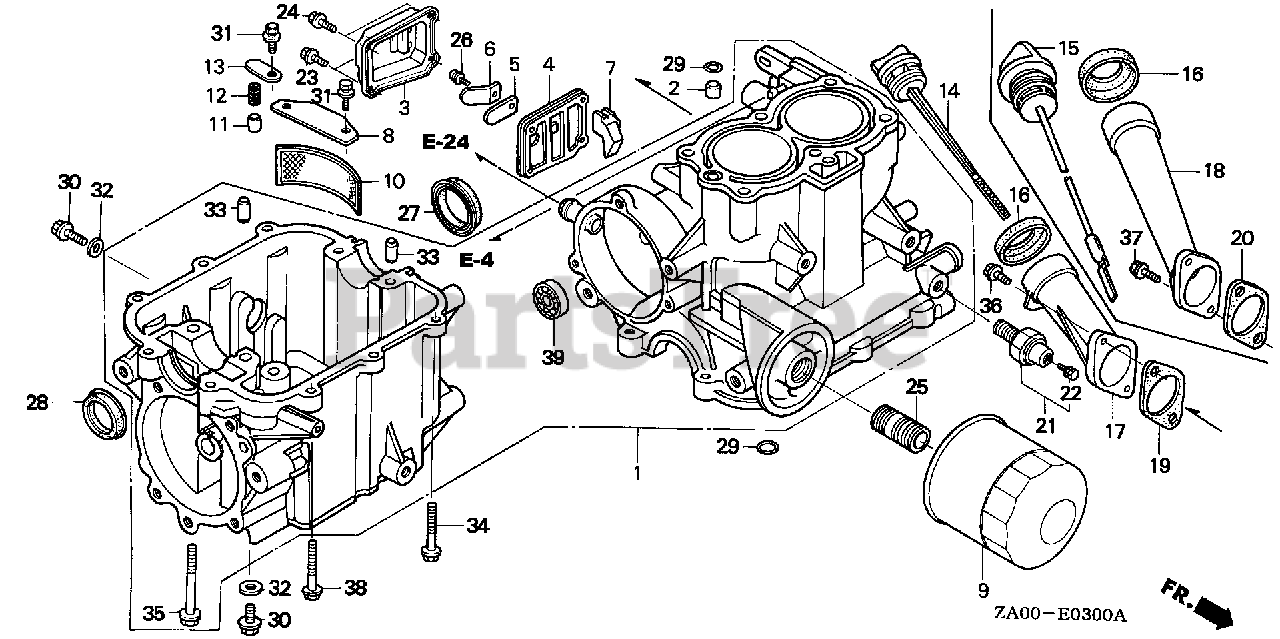

CYLINDER (1) Parts Diagram

  • Title

1

Honda 12000-ZA0-406

CYLINDER ASSY.

$1253.99

$

Usually ships in 3-6 days

0

2

Honda 12125-ZA0-010

SEE PART DETAILS - PRI; ORIFICE, OIL CONTROL

$3.49

$

In Stock, only 1 left!

0

3

Honda 12360-ZA0-700

COVER, BREATHER (Honda Code 1971928).

$23.99

$

Usually ships in 3-6 days

0

4

Honda 12370-ZA0-981

SEE PART DETAILS - PRI; PLATE, BREATHER (Honda Code 3402401).

$18.99

$

Usually ships in 3-6 days

0

5

Honda 12372-ZA0-701

SEE PART DETAILS - PRI; PLATE, VALVE (Honda Code 2515195).

$8.49

$

Usually ships in 3-6 days

0

6

Honda 12374-ZA0-701

SEE PART DETAILS - PRI; STOPPER, VALVE (Honda Code 2515203).

$4.99

$

Usually ships in 3-6 days

0

7

Honda 12376-ZA0-980

GUARD, BREATHER (Honda Code 2652774).

$11.99

$

Usually ships in 3-6 days

0

8

Honda 15334-ZA0-000

PLATE, OIL FILTER (Honda Code 1278449).

$9.99

$

Usually ships in 3-6 days

0

9

Honda 15400-ZA0-003

FILTER, OIL (Honda Code 7582380).

$26.99

$

In Stock, only 1 left!

0

10

Honda 15421-ZA0-000

SCREEN, OIL FILTER (Honda Code 1278456).

$16.99

$

Usually ships in 3-6 days

0

11

Honda 15473-ZA0-000

VALVE, CHECK (Honda Code 1313204).

$10.99

$

Usually ships in 3-6 days

0

12

Honda 15474-881-000

SPRING, VALVE (Honda Code 0497495).

$5.99

$

Usually ships in 3-6 days

0

13

Honda 15475-ZA0-000

PLATE, VALVE (Honda Code 1278480).

$4.99

$

Usually ships in 3-6 days

0

14

Honda 15620-ZA0-920

CAP, OIL FILLER (Honda Code 2580017).

$13.99

$

Usually ships in 3-6 days

0

16

Honda 15625-ZE8-000

SEE PART DETAILS - PRI; GASKET, OIL FILLER CAP

$5.49

$

In Stock, only 1 left!

0

17

Honda 15632-ZA0-920

PIPE, OIL FILLER (Honda Code 2580025).

$46.99

$

Usually ships in 3-6 days

0

19

Honda 15635-ZA0-800

SEE PART DETAILS - PRI; GASKET, OIL PIPE (Honda Code 4012787).

$3.99

$

Usually ships in 3-6 days

0

21

Honda 37240-ZA0-013

SEE PART DETAILS - PRI; SWITCH, OIL PRESSURE (Honda Code 3616927).

$44.99

$

Usually ships in 3-6 days

0

22

Honda 90002-PA6-003

BOLT-WASHER (4X8) (Honda Code 1169275).

$7.99

$

Usually ships in 3-6 days

0

23

Honda 90013-883-000

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) (CT200) (Honda Code 0636845).

$1.99

$

In Stock, Qty 20+

0

24

Honda 90014-952-000

BOLT, FLANGE (6X14) (Honda Code 0803619).

$2.99

$

In Stock, only 4 left!

0

25

Honda 90015-590-000

PIPE, OIL PASSAGE (Honda Code 0547398).

$20.99

$

Usually ships in 3-6 days

0

26

Honda 90092-657-000

SCREW-WASHER (5X8) (Honda Code 0582718).

$2.99

$

In Stock, only 4 left!

0

27

Honda 91201-ZA0-003

OIL SEAL (33X48X7) (Honda Code 1299015).

$14.99

$

In Stock, only 1 left!

0

28

Honda 91205-ZA0-003

OIL SEAL (30X44X7) (Honda Code 1279223).

$12.99

$

In Stock, only 4 left!

0

29

Honda 15142-PH3-003

SEE PART DETAILS - PRI; O-RING (10.8X2.4) (ARAI) (Honda Code 2622355).

$3.99

$

In Stock, only 1 left!

0

30

Honda 92800-12000

SEE PART DETAILS - PRI; BOLT, DRAIN PLUG (12MM) (Honda Code 0053975).

$5.49

$

In Stock, only 2 left!

0

31

Honda 93402-06012-08

SEE PART DETAILS - PRI; BOLT-WASHER (6X12) (Honda Code 2646628).

$2.49

$

Usually ships in 3-6 days

0

32

Honda 94109-12000

SEE PART DETAILS - PRI; WASHER, DRAIN PLUG (12MM) (Honda Code 0171868).

$1.49

$

In Stock, Qty 12

0

33

Honda 94301-10160

SEE PART DETAILS - PRI; PIN A, DOWEL (10X16) (Honda Code 0058206).

$3.49

$

In Stock, only 3 left!

0

34

Honda 95701-06028-08

SEE PART DETAILS - PRI; BOLT, FLANGE (6X28) (Honda Code 2488500).

$2.99

$

Usually ships in 3-6 days

0

35

Honda 95701-08055-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X55) (Honda Code 2774438).

$3.49

$

In Stock, only 2 left!

0

36

Honda 95701-06016-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X16) Use from Engine SN 2056820.

$2.49

$

In Stock, only 3 left!

0

38

Honda 95701-06032-08

SEE PART DETAILS - PRI; BOLT, FLANGE (6X32) (Honda Code 2581361).

$2.49

$

In Stock, only 4 left!

0

39

Honda 96100-62020-00

SEE PART DETAILS - PRI; BEARING, RADIAL BALL (6202) (Honda Code 0708941).

$12.99

$

Usually ships in 3-6 days

0
