GX360 K1 DD/A (GA01) - Honda Engine, Made in Japan (SN: GA01-1400001 - GA01-9999999) CONTROL BOX (10A) Parts Diagram

Engine, Made in Japan

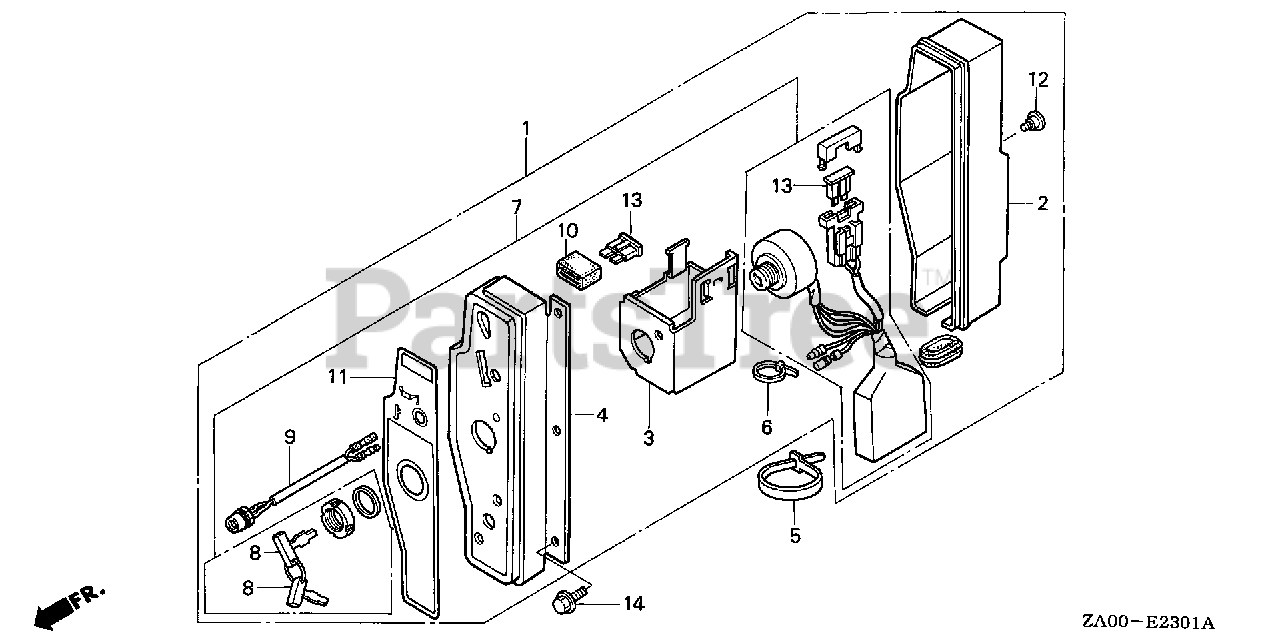

CONTROL BOX (10A) Parts Diagram

  • Title

1

Honda 31610-ZA0-922

BOX ASSY., CONTROL (10A) (Honda Code 4337853).

$

$

Not available

2

Honda 31612-ZE2-003

SEE PART DETAILS - PRI; CASE, CONTROL (Honda Code 2095875).

$22.99

$

Usually ships in 3-6 days

0

3

Honda 31614-ZE2-003

SEE PART DETAILS - PRI; BRACKET, CASE MOUNTING (Honda Code 2095883).

$18.99

$

Usually ships in 3-6 days

0

4

Honda 31615-ZA0-922

PANEL ASSY., CONTROL (Honda Code 4840914).

$56.99

$

Usually ships in 3-6 days

0

5

Honda 32161-367-690

BAND, WIRE Use up to Frame SN 1001879.

$3.99

$

Usually ships in 3-6 days

0

6

Honda 32902-892-003

BAND (Honda Code 0947457).

$4.99

$

In Stock, only 1 left!

0

7

Honda 35100-ZA0-922

SEE PART DETAILS - PRI; SWITCH ASSY., COMBINATION (Honda Code 4337861). (10A)

$174.99

$

Usually ships in 3-6 days

0

8

Honda 35111-880-013

SEE PART DETAILS - PRI; KEY (Honda Code 7635063).

$11.99

$

In Stock, only 3 left!

0

9

Honda 37570-ZA0-922

L.E.D. ASSY. (RED) (Honda Code 4842803).

$45.99

$

Usually ships in 3-6 days

0

10

Honda 38306-GE8-008

SUSPENSION, TURN SIGNAL RELAY (Honda Code 1491299). (DENSO)

$6.49

$

Usually ships in 3-6 days

0

11

Honda 87529-ZA0-922

PLATE, CONTROL INDICATION (10A)

$

$

Not available

12

Honda 90380-MA6-010

SEE PART DETAILS - PRI; SCREW, SPECIAL (6X12) (Honda Code 1490648).

$4.49

$

Usually ships in 3-6 days

0

13

Honda 98200-31500

FUSE, BLADE (15A) (Honda Code 1644244).

$1.99

$

In Stock, Qty 6

0

14

Honda 95701-06008-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X8) (Honda Code 2581353).

$4.49

$

In Stock, Qty 20+

0
