GX360 K1 DD/A (GA01) - Honda Engine, Made in Japan (SN: GA01-1400001 - GA01-9999999) CARBURETOR (1) Parts Diagram

Engine, Made in Japan

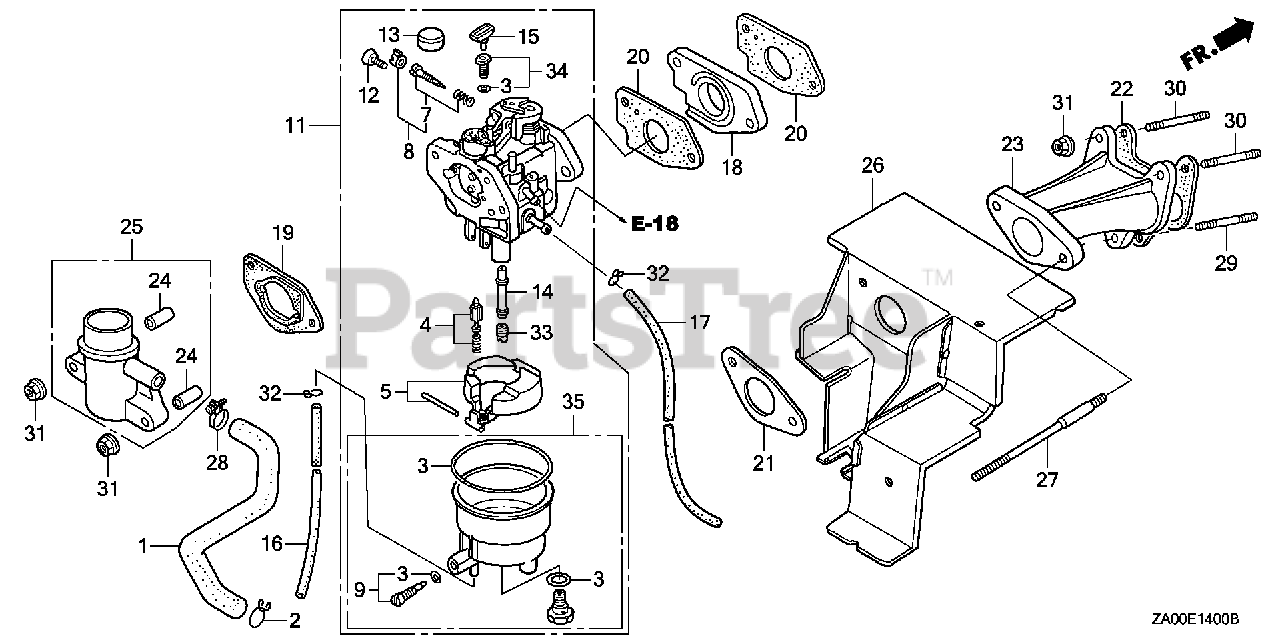

CARBURETOR (1) Parts Diagram

  • Title

1

Honda 12315-ZA0-700

TUBE, BREATHER (Honda Code 2059202).

$10.99

$

Usually ships in 3-6 days

0

2

Honda 15772-551-000

CLIP, BREATHER TUBE (Honda Code 0501353).

$2.99

$

In Stock, Qty 5

0

3

Honda 16010-ZA0-921

GASKET SET (Honda Code 2652832).

$18.99

$

In Stock, only 4 left!

0

4

Honda 16011-ZA0-931

VALVE SET, FLOAT (Honda Code 2059236).

$43.99

$

In Stock, only 2 left!

0

5

Honda 16013-ZA0-931

FLOAT SET (Honda Code 2059244).

$49.99

$

Usually ships in 3-6 days

0

6

Honda 16015-ZA0-931

CHAMBER SET, FLOAT (Honda Code 2386241).

$80.99

$

Usually ships in 3-6 days

0

7

Honda 16016-ZE0-005

SCREW SET, PILOT (Honda Code 1441500). (CARBURETOR NO.)

Note: Use up to Engine SN BE27B D.

$14.99

$

In Stock, only 1 left!

0

8

Honda 16016-ZH7-W01

SEE PART DETAILS - PRI; SCREW SET (Honda Code 4219879). (CARBURETOR NO.)

Note: Use from Engine SN BE27B E.

$20.99

$

In Stock, only 3 left!

0

9

Honda 16024-124-760

SEE PART DETAILS - PRI; SCREW SET, DRAIN (ADVENTURE GREEN) (CARBURETOR NO.)

$14.99

$

Usually ships in 3-6 days

0

10

Honda 06160-Z1C-325

SEE PART DETAILS - PRI; BOLT KIT, FUEL CHAMBER

$23.99

$

In Stock, only 1 left!

0

10

Honda 16028-ZA0-701

SEE PART DETAILS - SUP; SCREW SET
(Superseded to 06160-Z1C-325)

$23.99

$

In Stock, only 1 left!

0

11

Honda 16100-ZA0-924

SEE PART DETAILS - PRI; CARBURETOR ASSY. (BE27B E)

$155.99

$

Usually ships in 3-6 days

0

12

Honda 16124-ZE0-005

SCREW, THROTTLE STOP (Honda Code 1441559).

$17.99

$

In Stock, only 1 left!

0

13

Honda 16148-141-881

SEE PART DETAILS - PRI; CAP, CHOKE LEVER DUST (Honda Code 2110468).

$6.49

$

In Stock, only 1 left!

0

14

Honda 16166-ZA0-702

NOZZLE, MAIN (Honda Code 2332807).

$33.99

$

Usually ships in 3-6 days

0

16

Honda 16198-ZA0-700

TUBE, FUEL DRAIN (Honda Code 2059293).

$16.99

$

Usually ships in 3-6 days

0

17

Honda 16199-ZA0-700

TUBE, AIR VENT (Honda Code 2059301).

$18.99

$

Usually ships in 3-6 days

0

18

Honda 16211-ZA0-700

INSULATOR, CARBURETOR (Honda Code 1972009).

$16.99

$

Usually ships in 3-6 days

0

19

Honda 16220-ZA0-702

SEE PART DETAILS - PRI; SPACER, CARBURETOR (Honda Code 2686533).

$11.99

$

Usually ships in 3-6 days

0

20

Honda 16221-ZA0-800

SEE PART DETAILS - PRI; GASKET, CARBURETOR (Honda Code 3678620).

$2.49

$

In Stock, Qty 20+

0

21

Honda 16223-ZA0-800

SEE PART DETAILS - PRI; GASKET, INSULATOR (Honda Code 3678638).

$2.99

$

In Stock, Qty 20+

0

22

Honda 16226-ZA0-800

SEE PART DETAILS - PRI; GASKET, IN. MANIFOLD (Honda Code 4527792).

$2.99

$

In Stock, only 2 left!

0

23

Honda 17100-ZA0-700

MANIFOLD, IN. (Honda Code 2051761).

$72.99

$

Usually ships in 3-6 days

0

24

Honda 17238-ZE7-010

COLLAR, AIR CLEANER Use from Engine SN 1786085.

$4.99

$

Usually ships in 3-6 days

0

25

Honda 17410-ZA0-701

ELBOW, AIR CLEANER (Honda Code 2524627).

$27.99

$

Usually ships in 3-6 days

0

26

Honda 18200-ZA0-800

SEE PART DETAILS - PRI; COVER, EX.

$118.99

$

Usually ships in 3-6 days

0

27

Honda 90042-ZE2-000

BOLT, STUD (8X123) (Honda Code 2027043).

$8.99

$

In Stock, only 2 left!

0

28

Honda 91410-ZA0-010

CLIP A18, TUBE

$3.49

$

Usually ships in 3-6 days

0

29

Honda 92700-06032-0B

SEE PART DETAILS - PRI; BOLT, STUD (6X32) (Honda Code 0438374).

Note: Use up to Engine SN 1408616.

$2.49

$

Usually ships in 3-6 days

0

29

Honda 92900-06020-0B

BOLT 2, STUD (6X20)

Note: Use from Engine SN 1408617.

$2.49

$

Usually ships in 3-6 days

0

30

Honda 92900-06022-0B

BOLT, STUD (6X22)

Note: Use from Engine SN 1408617.

$2.49

$

Usually ships in 3-6 days

0

30

Honda 92900-06028-0B

SEE PART DETAILS - PRI; BOLT, STUD (6X28) (Honda Code 1366616).

Note: Use up to Engine SN 1408616.

$2.49

$

Usually ships in 3-6 days

0

31

Honda 94050-06080

SEE PART DETAILS - PRI; NUT, FLANGE (6MM) (Honda Code 0612689).

$0.99

$

In Stock, only 3 left!

0

32

Honda 95002-02080

CLIP, TUBE (B8) (Honda Code 0250647).

$2.49

$

In Stock, Qty 20+

0

33

Honda 99101-ZH8-0820

SEE PART DETAILS - PRI; JET, MAIN (#82) (Honda Code 5947130).

Note: (Optional).

$7.99

$

Usually ships in 3-6 days

0

33

Honda 99101-ZH8-0850

SEE PART DETAILS - PRI; JET, MAIN (#85) Use up to Engine SN BE81B B.

Note: (Optional).

$7.99

$

Usually ships in 3-6 days

0

33

Honda 99101-ZH8-0880

SEE PART DETAILS - PRI; JET, MAIN (#88) Use up to Engine SN BE81B B.

$7.99

$

In Stock, only 1 left!

0

34

Honda 99204-ZA0-0450

JET SET, PILOT (#45) (Honda Code 2060465).

$23.99

$

In Stock, only 1 left!

0

35

Honda 06160-Z1C-325

SEE PART DETAILS - PRI; BOLT KIT, FUEL CHAMBER

$23.99

$

In Stock, only 1 left!

0
