GX35 SA2/A (GCACM) - Honda Engine, Made in Japan (SN: GCACM-1100001 - GCACM-9999999) FUEL TANK Parts Diagram

Engine, Made in Japan

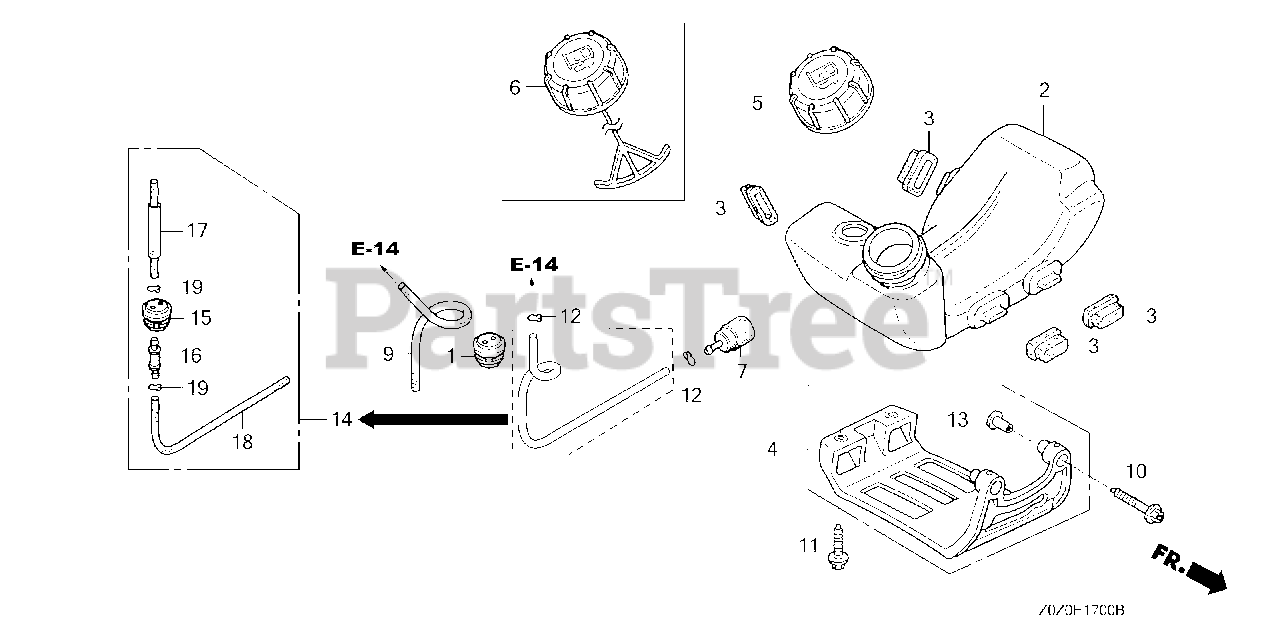

FUEL TANK Parts Diagram

  • Title

1

Honda 17504-ZM3-003

GROMMET, FUEL TUBE

$4.99

$

In Stock, Qty 20+

0

2

Honda 17511-Z0Z-003

SEE PART DETAILS - SUP; TANK, FUEL
(Superseded to 17511-Z0Z-305)

Note: Use up to Engine SN 1128080.

$45.99

$

In Stock, only 2 left!

0

2

Honda 17511-Z0Z-305

SEE PART DETAILS - PRI; TANK, FUEL (COO)

$45.99

$

In Stock, only 2 left!

0

3

Honda 17533-Z0H-000

RUBBER, TANK MOUNTING

$1.99

$

In Stock, Qty 20+

0

5

Honda 17620-ZM3-053

SEE PART DETAILS - PRI; CAP ASSY., FUEL TANK
(Superseded to 17620-ZM3-073)

$14.99

$

In Stock, Qty 11

0

7

Honda 17672-ZM3-003

SEE PART DETAILS - SUP; FILTER, FUEL
(Superseded to 17672-Z0H-003)

Note: Use up to Engine SN 1128080.

$7.99

$

In Stock, Qty 20+

0

7

Honda 17672-Z0H-003

SEE PART DETAILS - PRI; FILTER, FUEL

$7.99

$

In Stock, Qty 20+

0

8

Honda 17701-Z0Z-000

TUBE, FUEL TANK

$7.99

$

Usually ships in 3-6 days

0

9

Honda 17702-Z0Z-000

TUBE, FUEL RETURN

$4.49

$

Usually ships in 3-6 days

0

12

Honda 91401-ZM3-003

CLIP, TUBE

$1.99

$

In Stock, Qty 20+

0

14

Honda 17700-Z0Z-305

GROMMET ASSY., FUEL TANK

$

$

Not available

15

Honda 17504-ZM3-003

GROMMET, FUEL TUBE

Note: (Optional).

$4.99

$

In Stock, Qty 20+

0

16

Honda 17519-ZM5-003

FITTING

Note: (Optional).

$6.49

$

In Stock, Qty 20+

0

17

Honda 17701-Z0Z-800

TUBE, FUEL FEED
(Superseded to 17701-Z3F-315)

Note: (Optional).

$4.49

$

Usually ships in 3-6 days

0

18

Honda 17703-Z6K-801

TUBE A, FUEL

Note: (Optional).

$6.99

$

Usually ships in 3-6 days

0

19

Honda 91401-ZM3-003

CLIP, TUBE

Note: (Optional).

$1.99

$

In Stock, Qty 20+

0
