GX35 NT TMS3/A (GCAST) - Honda Engine, Made in Thailand (SN: GCAST-2000001 - GCAST-9999999) OTHER PARTS (1) Parts Diagram

Engine, Made in Thailand

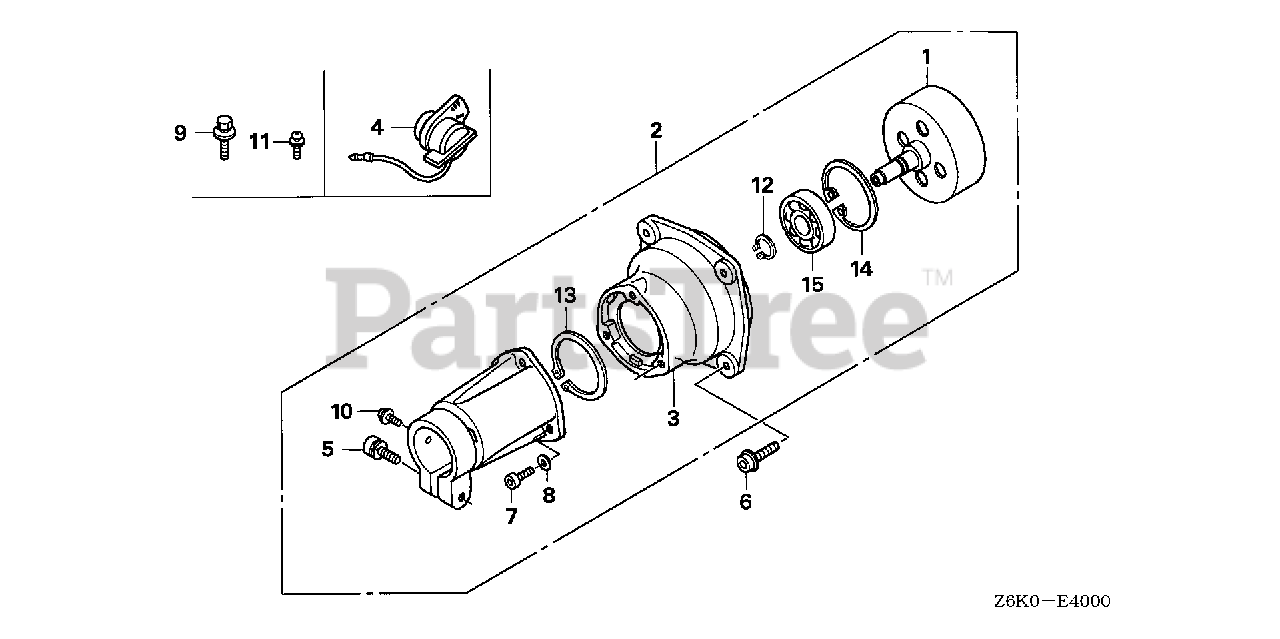

OTHER PARTS (1) Parts Diagram

  • Title

1

Honda 22100-VL6-H31

SEE PART DETAILS - PRI; CLUTCH OUTER

$44.99

$

Usually ships in 3-6 days

0

1

Honda 22100-VL6-K30

CLUTCH OUTER

$

$

Not available

2

Honda 22260-VK4-M03

SEE PART DETAILS - PRI; HOUSING ASSY., CLUTCH

$123.99

$

Usually ships in 3-6 days

0

3

Honda 22261-VL6-H31

HOUSING A, CLUTCH

$40.99

$

Usually ships in 3-6 days

0

4

Honda 35120-Z0T-821

SEE PART DETAILS - PRI; SWITCH ASSY., ENGINE STOP (TOYO DENSO)

$4.99

$

Usually ships in 3-6 days

0

5

Honda 90101-VK4-003

BOLT, SOCKET (6X20)

$1.49

$

Usually ships in 3-6 days

0

6

Honda 90102-VK4-000

BOLT, FLANGE SOCKET (6X20)

$1.49

$

Usually ships in 3-6 days

0

7

Honda 90103-VK4-003

BOLT, SOCKET (5X20)

$0.99

$

Usually ships in 3-6 days

0

8

Honda 90401-VK4-003

WASHER (5MM)

$0.99

$

Usually ships in 3-6 days

0

9

Honda 93403-06028-08

BOLT-WASHER (6X28)

$2.99

$

Usually ships in 3-6 days

0

10

Honda 93892-05010-07

SCREW-WASHER (5X10)

$1.49

$

Usually ships in 3-6 days

0

11

Honda 93893-05010-08

SEE PART DETAILS - PRI; SCREW-WASHER (5X10)

$1.99

$

Usually ships in 3-6 days

0

12

Honda 94510-15000

CIRCLIP (OUTER) (15MM)

$1.49

$

In Stock, Qty 9

0

13

Honda 94510-30000

CIRCLIP (OUTER) (30MM)

$1.99

$

Usually ships in 3-6 days

0

14

Honda 94520-35000

CIRCLIP (INNER) (35MM)

$2.49

$

In Stock, only 2 left!

0

15

Honda 96130-62020-10

BEARING, RADIAL BALL (6202)

$17.99

$

Usually ships in 3-6 days

0
