GX35 NT SGT9 (GCAST) - Honda Engine, Made in Thailand (SN: GCAST-1000001 - GCAST-9999999) FUEL TANK (1) Parts Diagram

Engine, Made in Thailand

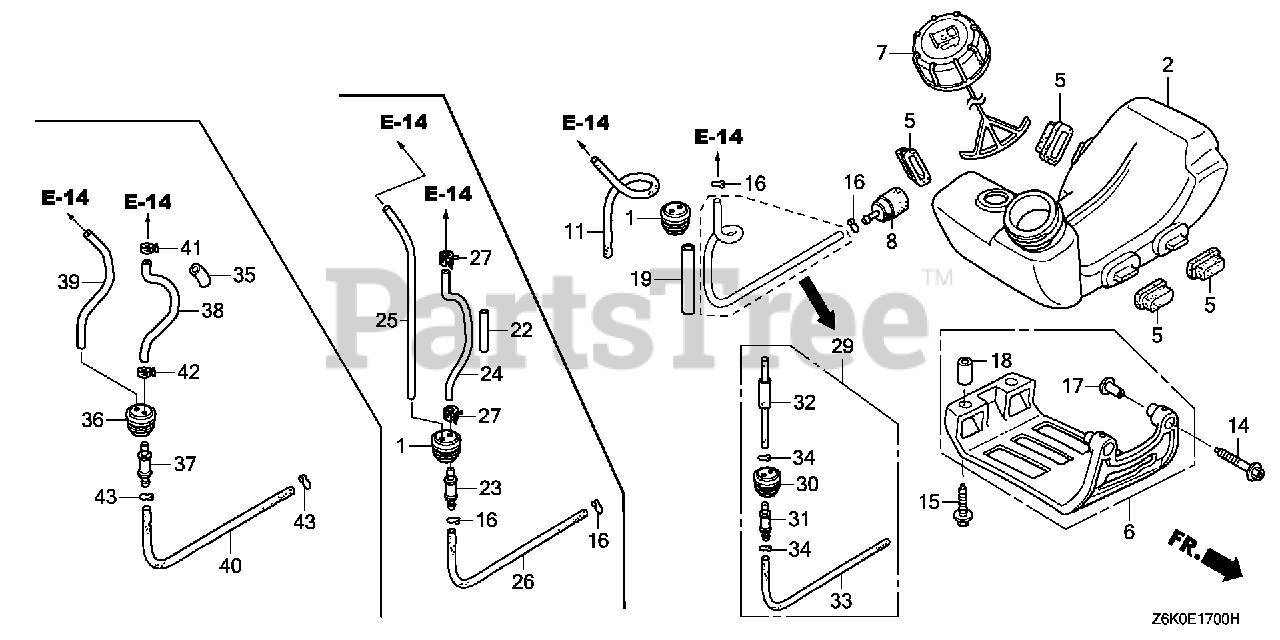

FUEL TANK (1) Parts Diagram

  • Title

1

Honda 17504-ZM3-003

GROMMET, FUEL TUBE

$4.49

$

In Stock, Qty 12

0

2

Honda 17511-Z0Z-305

SEE PART DETAILS - PRI; TANK, FUEL (COO)

Note: Use up to Engine SN 1032639.

$41.99

$

In Stock, only 2 left!

0

2

Honda 17511-Z6K-305

TANK, FUEL (FOR U.S.A.)

Note: Use from Engine SN 1032640 to 1114890.

$46.99

$

Usually ships in 3-6 days

0

2

Honda 17511-Z6K-305

TANK, FUEL (FOR U.S.A.)

Note: Use from Engine SN 1114891.

$46.99

$

Usually ships in 3-6 days

0

2

Honda 17511-Z6K-820

SEE PART DETAILS - SUP; TANK, FUEL
(Superseded to 17511-Z6K-821)

Note: Use from Engine SN 1032640 to 1114890.

$51.99

$

Usually ships in 3-6 days

0

2

Honda 17511-Z6K-820

SEE PART DETAILS - SUP; TANK, FUEL
(Superseded to 17511-Z6K-821)

Note: Use from Engine SN 1114891 to 1267233.

$51.99

$

Usually ships in 3-6 days

0

2

Honda 17511-Z6K-821

SEE PART DETAILS - PRI; TANK, FUEL

Note: Use from Engine SN 1032640 to 1114890.

$51.99

$

Usually ships in 3-6 days

0

2

Honda 17511-Z6K-821

SEE PART DETAILS - PRI; TANK, FUEL

Note: Use from Engine SN 1114891.

$51.99

$

Usually ships in 3-6 days

0

5

Honda 17533-Z0H-000

RUBBER, TANK MOUNTING

$1.99

$

In Stock, Qty 20+

0

7

Honda 17620-ZM3-817

SEE PART DETAILS - PRI; CAP ASSY., FUEL TANK
(Superseded to 17620-ZM3-818)

$14.99

$

In Stock, Qty 5

0

8

Honda 17672-Z0H-003

FILTER, FUEL

$6.99

$

Usually ships in 3-6 days

0

11

Honda 17702-Z0Z-000

TUBE, FUEL RETURN

Note: Use up to Engine SN 1185256.

$3.99

$

In Stock, only 2 left!

0

16

Honda 91401-ZM3-003

CLIP, TUBE

$1.99

$

Usually ships in 3-6 days

0

22

Honda 16865-Z6K-000

PROTECTOR, TUBE

Note: Use from Engine SN 1185257.

$2.99

$

In Stock, Qty 17

0

23

Honda 17519-Z6J-003

JOINT, FUEL TANK

Note: Use from Engine SN 1185257.

$2.49

$

In Stock, Qty 8

0

24

Honda 17701-Z6J-003

SEE PART DETAILS - SUP; TUBE, FUEL
(Superseded to 17701-Z6J-305)

Note: Use from Engine SN 1185257.

$6.99

$

In Stock, Qty 7

0

24

Honda 17701-Z6J-305

SEE PART DETAILS - PRI; TUBE, FUEL

Note: Use from Engine SN 1185257.

$6.99

$

In Stock, Qty 7

0

25

Honda 17702-Z0H-003

TUBE, FUEL RETURN

Note: Use from Engine SN 1185257.

$2.49

$

In Stock, only 4 left!

0

26

Honda 17703-Z6K-801

TUBE A, FUEL

Note: Use from Engine SN 1185257.

$6.49

$

In Stock, only 3 left!

0

27

Honda 90601-Z6J-003

CLAMP, TUBE

Note: Use from Engine SN 1185257.

$0.99

$

In Stock, only 3 left!

0

29

Honda 17700-Z0Z-305

GROMMET ASSY., FUEL TANK

Note: Use up to Engine SN 1185256.

$

$

Not available

30

Honda 17504-ZM3-003

GROMMET, FUEL TUBE

Note: (Optional). Use up to Engine SN 1185256.

$4.49

$

In Stock, Qty 12

0

31

Honda 17519-ZM5-003

FITTING

Note: (Optional). Use up to Engine SN 1185256.

$5.99

$

In Stock, Qty 15

0

32

Honda 17701-Z0Z-800

SEE PART DETAILS - SUP; TUBE, FUEL FEED
(Superseded to 17701-Z3F-315)

Note: (Optional). Use up to Engine SN 1185256.

$3.99

$

Usually ships in 3-6 days

0

32

Honda 17701-Z3F-315

SEE PART DETAILS - PRI; TUBE, FUEL FEED

Note: (Optional). Use up to Engine SN 1185256.

$3.99

$

Usually ships in 3-6 days

0

33

Honda 17703-Z6K-801

TUBE A, FUEL

Note: (Optional). Use up to Engine SN 1185256.

$6.49

$

In Stock, only 3 left!

0

34

Honda 91401-ZM3-003

CLIP, TUBE

Note: (Optional). Use up to Engine SN 1185256.

$1.99

$

Usually ships in 3-6 days

0
