GX340 UT2 QAE2/A (GCBET) - Honda Engine, Made in Thailand (SN: GCBET-2000001 - GCBET-2025452) STARTER MOTOR (1) Parts Diagram

Engine, Made in Thailand

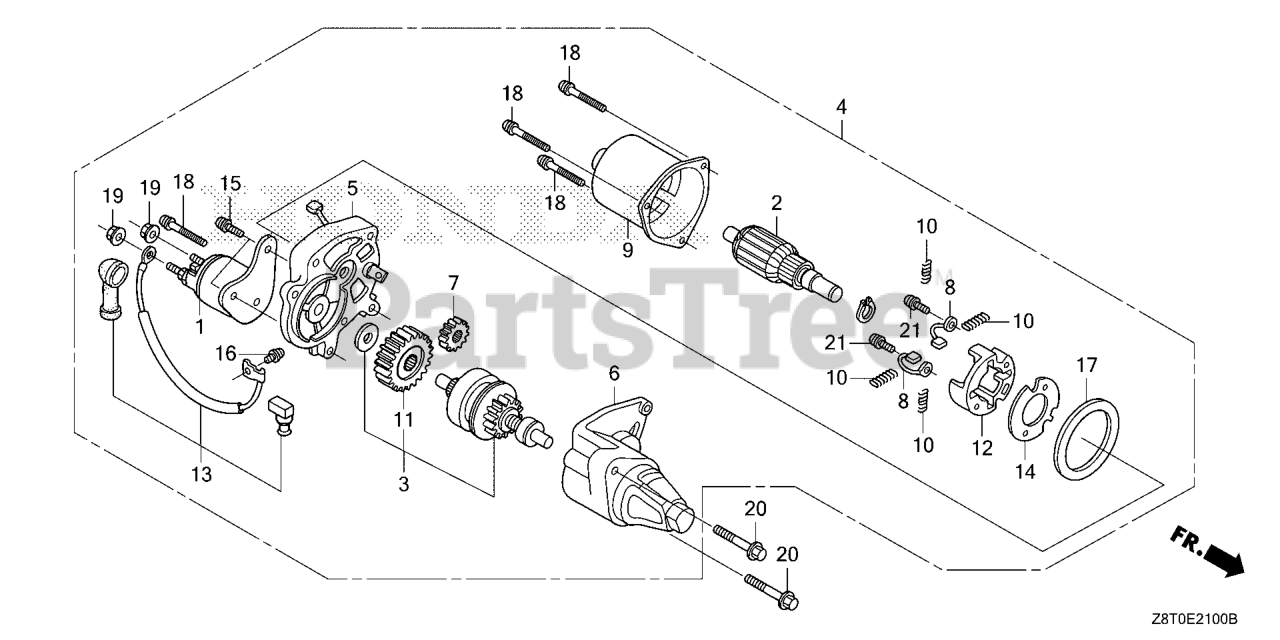

STARTER MOTOR (1) Parts Diagram

  • Title

1

Honda 31204-ZA0-003

SEE PART DETAILS - PRI; CONTACTOR ASSY. (Honda Code 2108298).

$149.99

$

In Stock, only 1 left!

0

2

Honda 31206-ZE3-003

ARMATURE (Honda Code 2108306).

$100.99

$

Usually ships in 3-6 days

0

3

Honda 31207-ZE3-003

SEE PART DETAILS - PRI; CLUTCH, OVERRUNNING (Honda Code 2108314).

Note: Use up to Engine SN 2007625.

$352.99

$

Usually ships in 3-6 days

0

3

Honda 31208-ZE3-003

CLUTCH, OVERRUNNING

Note: Use from Engine SN 2007626.

$112.99

$

Usually ships in 3-6 days

0

4

Honda 31210-ZE3-023

SEE PART DETAILS - PRI; STARTER MOTOR UNIT
(Superseded to 31210-ZE3-033)

Note: Use up to Engine SN 2007625.

$309.99

$

In Stock, only 2 left!

0

4

Honda 31210-ZE3-033

STARTER MOTOR UNIT

$309.99

$

In Stock, only 2 left!

0

5

Honda 31211-ZE2-003

BRACKET, CENTER (Honda Code 2026433).

$114.99

$

Usually ships in 3-6 days

0

6

Honda 31212-ZE3-003

BRACKET, FR. (Honda Code 2108330).

$160.99

$

Usually ships in 3-6 days

0

7

Honda 31213-ZE2-003

GEAR, DRIVE PINION (Honda Code 2026458).

$58.99

$

Usually ships in 3-6 days

0

8

Honda 31215-ZE2-003

BRUSH (Honda Code 2026474).

$13.99

$

In Stock, only 2 left!

0

9

Honda 31218-ZE3-003

YOKE (Honda Code 2108348).

$55.99

$

Usually ships in 3-6 days

0

10

Honda 31219-ZE2-003

SPRING, BRUSH RETURN (Honda Code 2026508).

$4.49

$

In Stock, only 2 left!

0

11

Honda 31222-ZE3-791

SEE PART DETAILS - PRI; GEAR, REDUCTION (Honda Code 2418358).

$39.99

$

Usually ships in 3-6 days

0

12

Honda 31231-ZE2-003

HOLDER, BRUSH (Honda Code 2026516).

$15.99

$

Usually ships in 3-6 days

0

13

Honda 31232-ZE3-003

WIRE, WATER COVER (Honda Code 2108355).

$13.99

$

Usually ships in 3-6 days

0

14

Honda 31233-ZE2-003

INSULATOR (Honda Code 2026524).

$14.99

$

Usually ships in 3-6 days

0

15

Honda 90007-ZE2-003

BOLT-WASHER (5X14)

$2.49

$

Usually ships in 3-6 days

0

16

Honda 90110-ZE2-003

SCREW-WASHER (4X6) (Honda Code 2027100).

$3.49

$

Usually ships in 3-6 days

0

17

Honda 91601-ZE2-003

GASKET (Honda Code 2027266).

$8.49

$

Usually ships in 3-6 days

0

18

Honda 93892-05032-08

SEE PART DETAILS - PRI; SCREW-WASHER (5X3) (Honda Code 1171891).

$1.99

$

In Stock, Qty 6

0

19

Honda 94070-06080

SEE PART DETAILS - PRI; NUT-WASHER (6MM)

$1.99

$

Usually ships in 3-6 days

0

20

Honda 95701-08035-08

SEE PART DETAILS - PRI; BOLT, FLANGE (8X35) (Honda Code 2563260).

$1.99

$

Usually ships in 3-6 days

0

21

Honda 31219-ZE3-003

SCREW-WASHER (4X14)

$4.49

$

Usually ships in 3-6 days

0
