GX340 UT2 LX2 (GCBET) - Honda Engine, Made in Thailand (SN: GCBET-1000001 - GCBET-9999999) REDUCTION (1) Parts Diagram
Engine, Made in Thailand

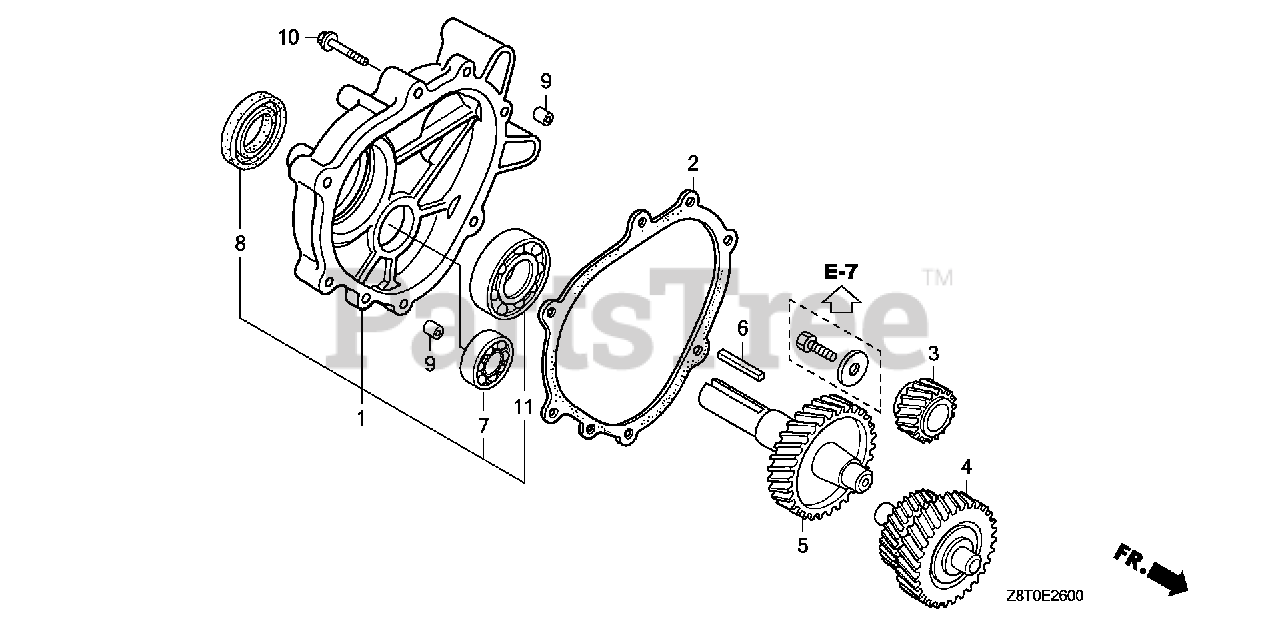

REDUCTION (1) Parts Diagram
Honda 11500-Z8T-612
COVER ASSY., GEAR CASE
$188.99
$
Usually ships in 3-6 days
Honda 11521-ZE2-800
GASKET, CHAIN CASE COVER
$11.99
$
In Stock, only 1 left!
Honda 22103-ZE3-610
GEAR, PRIMARY DRIVE (22T)
$75.99
$
Usually ships in 3-6 days
Honda 23220-ZE3-610
COUNTERSHAFT (21T/27T)
$229.99
$
Usually ships in 3-6 days
Honda 23710-ZE3-610
SHAFT, P.T.O. (33T)
$307.99
$
Usually ships in 3-6 days
Honda 90741-889-810
KEY (7X7X33) (OVER SIZE) (YELLOW)
$9.49
$
Usually ships in 3-6 days
Honda 91009-KJ1-003
BEARING, RADIAL BALL (6202) (NTN)
$20.99
$
Usually ships in 3-6 days
Honda 91201-Z1D-003
OIL SEAL (30X46X8) (NOK ASIA)
$12.99
$
In Stock, only 2 left!
Honda 94301-08140
PIN, DOWEL (8X14)
$2.99
$
In Stock, Qty 8
Honda 95701-08040-00
BOLT, FLANGE (8X40)
$1.99
$
In Stock, Qty 20+
Honda 96100-62060-00
BEARING, RADIAL BALL (6206)
$30.99
$
In Stock, only 1 left!
