GX340 UT2 HA2 (GCBET) - Honda Engine, Made in Thailand (SN: GCBET-1000001 - GCBET-1999999) REDUCTION (2) Parts Diagram
Engine, Made in Thailand

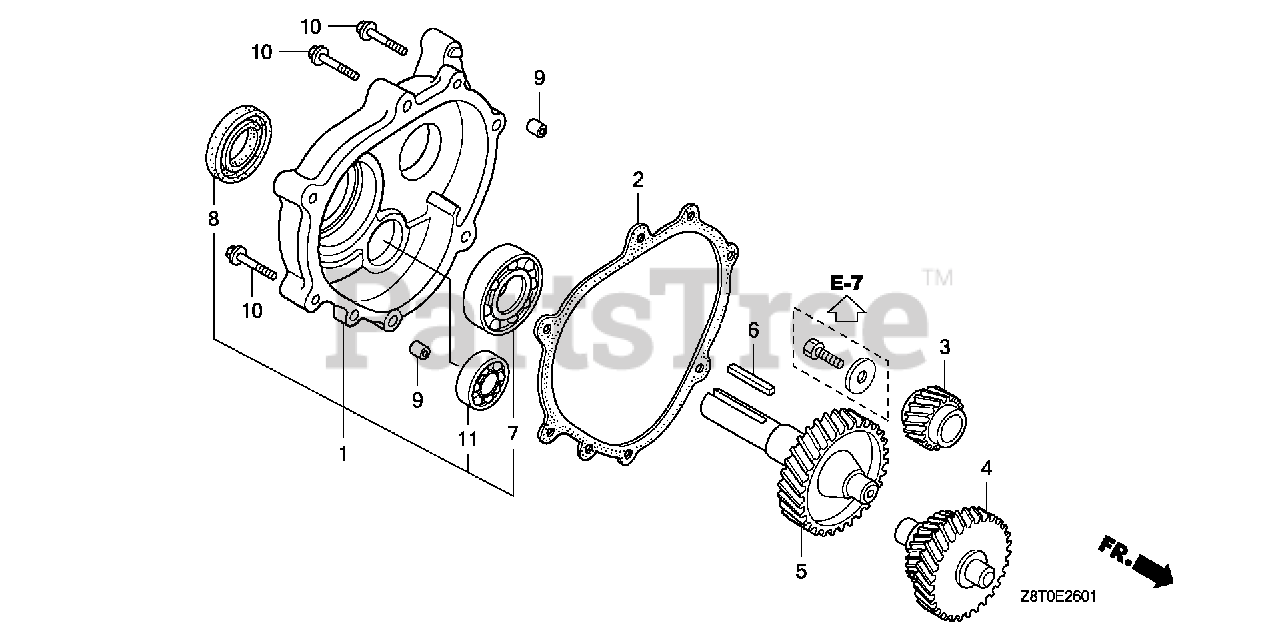

REDUCTION (2) Parts Diagram
Honda 11500-Z8T-640
COVER ASSY., GEAR CASE
$74.99
$
Usually ships in 3-6 days
Honda 11521-ZE2-800
SEE PART DETAILS - PRI; GASKET, CHAIN CASE COVER (Honda Code 3678513).
$12.99
$
In Stock, only 1 left!
Honda 22103-ZE3-640
GEAR, PRIMARY DRIVE (12T)
$88.99
$
Usually ships in 3-6 days
Honda 23220-ZE3-640
COUNTERSHAFT (13T/27T)
$259.99
$
Usually ships in 3-6 days
Honda 23710-ZE3-640
SHAFT, P.T.O. (H-TYPE)
$319.99
$
Usually ships in 3-6 days
Honda 90745-ZE2-600
KEY (6.3X6.3X43) (Honda Code 2027167).
$18.99
$
In Stock, only 1 left!
Honda 91006-MT3-003
BEARING, RADIAL BALL (6206) (NTN CORP.)
$29.99
$
Usually ships in 3-6 days
Honda 91201-Z1D-003
OIL SEAL (30X46X8) (NOK ASIA)
$12.99
$
In Stock, only 2 left!
Honda 94301-08140
SEE PART DETAILS - PRI; PIN A, DOWEL (8X14) (Honda Code 0069310).
$2.99
$
In Stock, Qty 8
Honda 95701-08040-00
SEE PART DETAILS - PRI; BOLT, FLANGE (8X40) Use up to Engine SN 1003236.
$1.99
$
In Stock, Qty 20+
Honda 96100-63020-00
SEE PART DETAILS - PRI; BEARING, RADIAL BALL (6302) (Honda Code 0834176).
$12.99
$
Usually ships in 3-6 days
