GX340 UT1 QAE2 (GCAVT) - Honda Engine, Made in Thailand (SN: GCAVT-1000001 - GCAVT-9999999) PISTON Parts Diagram

Engine, Made in Thailand

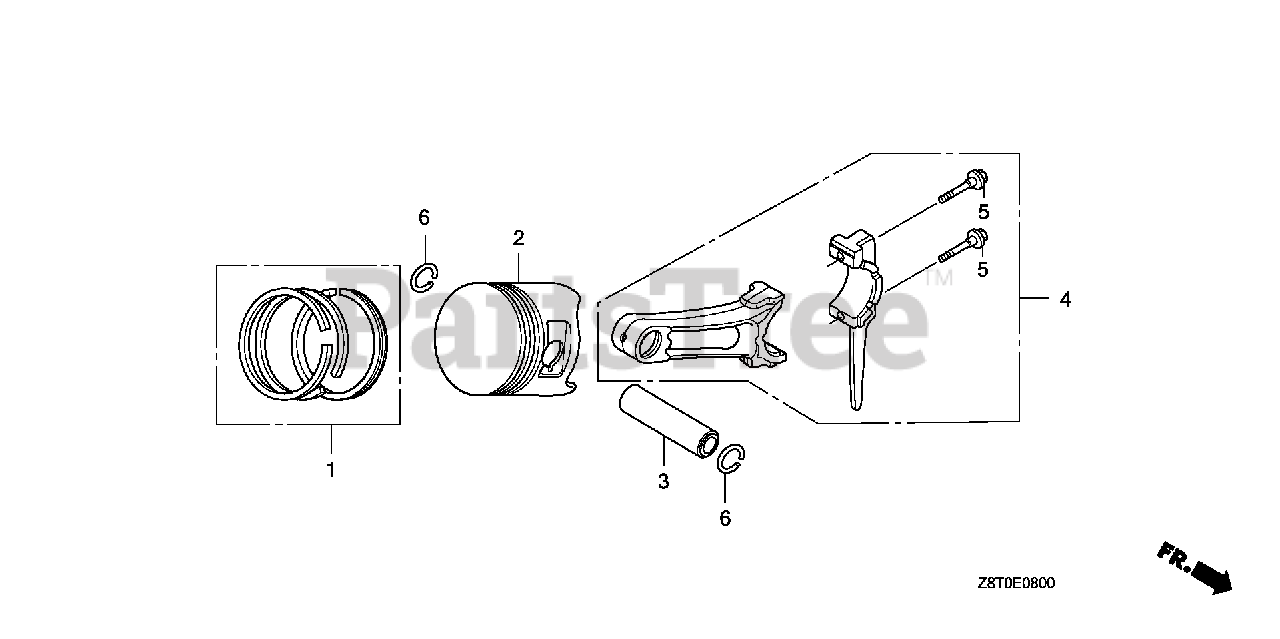

PISTON Parts Diagram

  • Title

1

Honda 13010-Z5R-004

RING SET, PISTON (STD) (TEIKOKU)

$54.99

$

In Stock, Qty 12

0

1

Honda 13011-Z5R-004

RING SET, PISTON (0.25) (TEIKOKU)

Note: (Optional).

$

$

Not available

1

Honda 13012-Z5R-004

RING SET, PISTON (0.50) (TEIKOKU)

Note: (Optional).

$

$

Not available

1

Honda 13013-Z5R-004

RING SET, PISTON (0.75) (TEIKOKU)

Note: (Optional).

$

$

Not available

2

Honda 13101-Z1C-900

SEE PART DETAILS - PRI; PISTON (STD)

$20.99

$

Usually ships in 3-6 days

0

2

Honda 13102-Z5T-800

PISTON (0.25)

Note: (Optional).

$

$

Not available

2

Honda 13103-Z5T-800

PISTON (0.50)

Note: (Optional).

$

$

Not available

2

Honda 13104-Z5T-800

PISTON (0.75)

Note: (Optional).

$

$

Not available

3

Honda 13111-Z5T-000

PIN, PISTON

$6.99

$

In Stock, Qty 6

0

4

Honda 13200-Z1C-900

SEE PART DETAILS - PRI; ROD ASSY., CONNECTING (STD)

$31.99

$

In Stock, only 3 left!

0

4

Honda 13200-Z1C-305

ROD ASSY., CONNECTING (0.25 LOWER SIZE)

Note: (Optional).

$

$

Not available

5

Honda 90001-ZE8-000

BOLT, CONNECTING ROD

$4.49

$

In Stock, only 1 left!

0

6

Honda 90601-ZE3-000

CLIP, PISTON PIN (20MM)

$2.49

$

In Stock, only 3 left!

0
