GX340 U1 PKX4 (GCAMK) - Honda Engine, Made in Japan (SN: GCAMK-1000001 - GCAMK-9999999) FUEL TANK Parts Diagram

Engine, Made in Japan

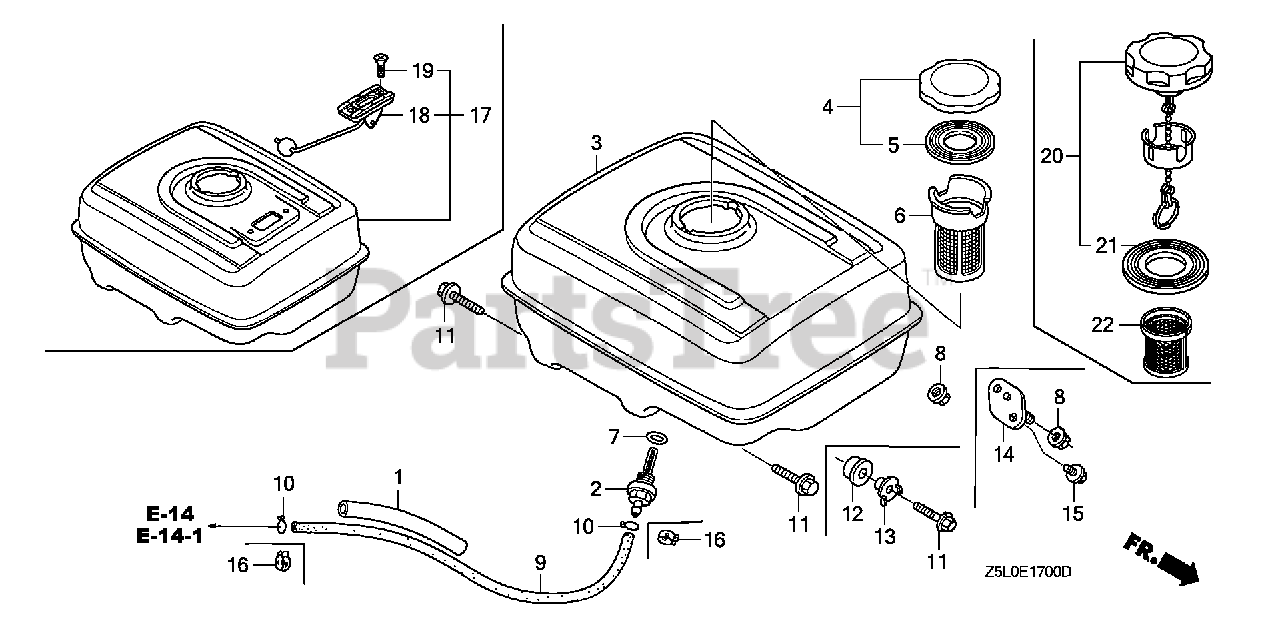

FUEL TANK Parts Diagram

  • Title

1

Honda 16854-ZH8-000

RUBBER, SUPPORTER (107MM)

$4.99

$

In Stock, Qty 14

0

2

Honda 16955-ZE1-010

JOINT, FUEL TANK

$8.99

$

In Stock, Qty 20+

0

3

Honda 17510-ZE3-801ZC

TANK, FUEL *NH31* (MCKINLEY WHITE)

$90.99

$

Usually ships in 3-6 days

0

4

Honda 17620-Z0T-305

SEE PART DETAILS - PRI; CAP, FUEL FILLER (CHROME PLATED)

Note: Use up to Engine SN 1161428.

$

$

Not available

5

Honda 17631-Z0T-812

GASKET, FUEL FILLER CAP (39X62X3) (TOUYOUSYA)
(Superseded to 17631-Z0T-813)

Note: Use up to Engine SN 1161428.

$3.49

$

Usually ships in 3-6 days

0

7

Honda 91353-671-003

O-RING (13.5X1.5) (ARAI)

$3.99

$

In Stock, Qty 20+

0

7

Honda 91353-671-004

O-RING (14MM) (NOK)
(Superseded to 91353-671-003)

$3.99

$

In Stock, Qty 20+

0

8

Honda 94050-08000

NUT, FLANGE (8MM)

$1.49

$

In Stock, Qty 20+

0

9

Honda 91424-Z5L-802

TUBE, FUEL (4.5X235) (FKM)

Note: Use from Engine SN 1030951 to 1178804.

$

$

Not available

9

Honda 91424-Z5L-802

TUBE, FUEL (4.5X235) (FKM)

Note: Use from Engine SN 1178805.

$

$

Not available

9

Honda 95001-45003-60M

BULK HOSE, FUEL (4.5X3000) (4.5X235)

Note: Use up to Engine SN 1030950.

$54.99

$

In Stock, only 4 left!

0

10

Honda 95002-02080

CLIP, TUBE (B8)

Note: Use up to Engine SN 1030950.

$2.49

$

In Stock, Qty 20+

0

11

Honda 95701-08025-00

BOLT, FLANGE (8X25)

$2.49

$

In Stock, only 4 left!

0

16

Honda 95002-40800-08

CLAMP, TUBE (D8)

Note: Use from Engine SN 1030951.

$2.99

$

In Stock, Qty 6

0

20

Honda 17620-Z4H-010

SEE PART DETAILS - SUP; CAP, FUEL FILLER (CHROME PLATED)
(Superseded to 17620-Z4H-900)

Note: Use from Engine SN 1161429 to 1167471.

$69.99

$

Usually ships in 3-6 days

0

20

Honda 17620-Z4H-020

SEE PART DETAILS - SUP; CAP, FUEL FILLER
(Superseded to 17620-Z4H-900)

Note: Use from Engine SN 1161429.

$69.99

$

Usually ships in 3-6 days

0

20

Honda 17620-Z4H-030

SEE PART DETAILS - SUP; CAP, FUEL FILLER
(Superseded to 17620-Z4H-900)

Note: Use from Engine SN 1161429.

$69.99

$

Usually ships in 3-6 days

0

20

Honda 17620-Z4H-900

SEE PART DETAILS - PRI; CAP, FUEL FILLER

Note: Use from Engine SN 1161429.

$69.99

$

Usually ships in 3-6 days

0

21

Honda 17631-Z0T-801

GASKET, FUEL FILLER CAP (39X62X3) (RADICON)

Note: Use from Engine SN 1167472.

$0.99

$

In Stock, Qty 8

0

21

Honda 17631-Z4H-800

GASKET, FUEL FILLER CAP (39X62X3)

Note: Use from Engine SN 1161429 to 1167471.

$0.99

$

In Stock, Qty 6

0
