GX340 RT2 VWE2 (GCBET) - Honda Engine, Made in Thailand (SN: GCBET-1000001 - GCBET-1999999) MUFFLER (1) Parts Diagram

Engine, Made in Thailand

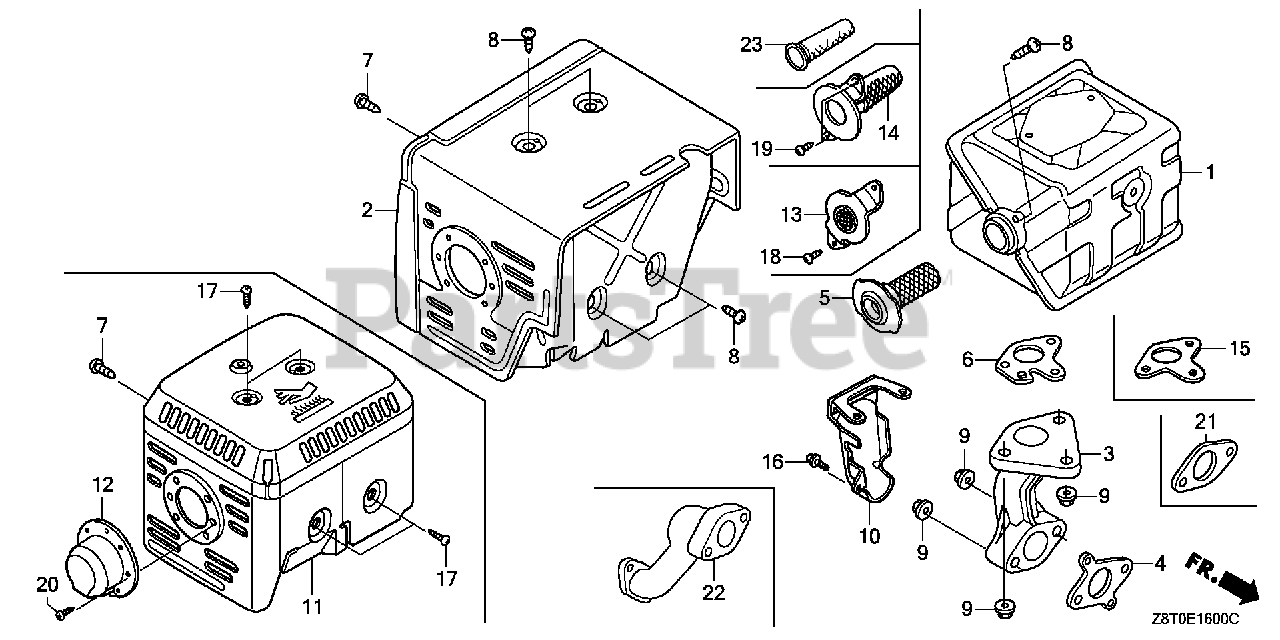

MUFFLER (1) Parts Diagram

  • Title

1

Honda 18310-Z5T-010

SEE PART DETAILS - PRI; MUFFLER

$37.99

$

In Stock, only 1 left!

0

3

Honda 18331-Z5T-000

PIPE, EX.

Note: Use up to Engine SN 1104461.

$28.99

$

In Stock, only 1 left!

0

4

Honda 18333-ZF6-W01

SEE PART DETAILS - SUP; GASKET, EX. PIPE
(Superseded to 18333-Z1C-901)

Note: Use up to Engine SN 1076216.

$3.49

$

In Stock, Qty 5

0

4

Honda 18333-Z1C-901

SEE PART DETAILS - PRI; GASKET, EX. PIPE

Note: Use up to Engine SN 1076216.

$3.49

$

In Stock, Qty 5

0

4

Honda 18333-Z1C-901

SEE PART DETAILS - PRI; GASKET, EX. PIPE

Note: Use from Engine SN 1076217 to 1104461.

$3.49

$

In Stock, Qty 5

0

6

Honda 18381-ZE2-W10

SEE PART DETAILS - PRI; GASKET, MUFFLER (ARRESTER) (Honda Code 3678802).

Note: Use up to Engine SN 1104461.

$12.99

$

In Stock, Qty 7

0

6

Honda 18381-Z8S-801

GASKET, MUFFLER (ARRESTER)(THAI LEAKLESS)

Note: Use up to Engine SN 1104461.

$3.99

$

In Stock, only 1 left!

0

7

Honda 90006-ZE2-000

SCREW, TAPPING (6X10)

Note: Use up to Engine SN 1104461.

$2.49

$

In Stock, only 3 left!

0

9

Honda 94050-08000

SEE PART DETAILS - PRI; NUT, FLANGE (8MM) (Honda Code 0481143).

Note: Use up to Engine SN 1104461.

$1.49

$

In Stock, Qty 20+

0

11

Honda 18320-Z5T-000

PROTECTOR, MUFFLER

Note: Use up to Engine SN 1104461.

$21.99

$

In Stock, only 1 left!

0

14

Honda 18350-Z5T-800

ARRESTER, SPARK

Note: Use up to Engine SN 1104461.

$20.99

$

In Stock, only 1 left!

0

17

Honda 90050-ZE1-000

SCREW, TAPPING (5X8) (Honda Code 1431105).

Note: Use up to Engine SN 1104461.

$2.49

$

In Stock, Qty 20+

0

19

Honda 90050-ZE1-000

SCREW, TAPPING (5X8) (Honda Code 1431105).

Note: Use up to Engine SN 1104461.

$2.49

$

In Stock, Qty 20+

0
