GX340 RT1 VWE2 (GCAVT) - Honda Engine, Made in Thailand (SN: GCAVT-1000001 - GCAVT-9999999) MUFFLER (2) Parts Diagram

Engine, Made in Thailand

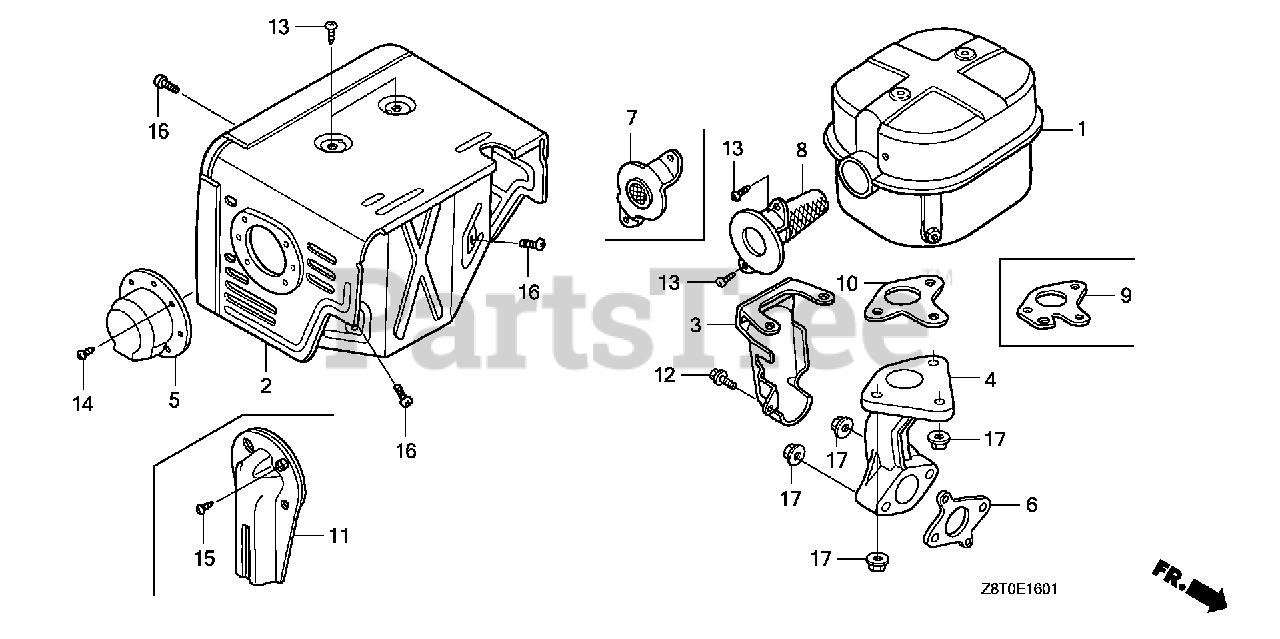

MUFFLER (2) Parts Diagram

  • Title

1

Honda 18310-Z8T-010

MUFFLER

Note: Use up to Engine SN 1016321.

$51.99

$

Usually ships in 3-6 days

0

1

Honda 18310-Z8T-800

MUFFLER

Note: Use from Engine SN 1016322.

$38.99

$

Usually ships in 3-6 days

0

2

Honda 18320-ZE3-W02

PROTECTOR, MUFFLER

$78.99

$

Usually ships in 3-6 days

0

4

Honda 18330-ZE2-W00

PIPE, EX.

$76.99

$

In Stock, only 1 left!

0

6

Honda 18333-ZF6-W01

SEE PART DETAILS - SUP; GASKET, EX. PIPE
(Superseded to 18333-Z1C-901)

$2.99

$

In Stock, only 3 left!

0

6

Honda 18333-Z1C-901

SEE PART DETAILS - PRI; GASKET, EX. PIPE

$2.99

$

In Stock, only 3 left!

0

8

Honda 18355-ZE3-010

ARRESTER, SPARK

$36.99

$

Usually ships in 3-6 days

0

9

Honda 18381-ZE2-W10

GASKET, MUFFLER (ARRESTER) (NIPPON LEAKLESS)

Note: (Optional).

$12.99

$

In Stock, Qty 7

0

9

Honda 18381-Z8S-801

GASKET, MUFFLER (ARRESTER)(THAI LEAKLESS)

$3.49

$

In Stock, only 1 left!

0

13

Honda 90050-ZE1-000

SCREW, TAPPING (5X8)

$2.49

$

In Stock, Qty 20+

0

16

Honda 93500-06006-0B

SCREW, PAN (6X6)

$1.49

$

Usually ships in 3-6 days

0

17

Honda 94050-08000

NUT, FLANGE (8MM)

$1.49

$

In Stock, Qty 20+

0
