GX340 QXC (GC05) - Honda Engine, Made in Japan (SN: GC05-1000001 - GC05-1469766) CARBURETOR (3) Parts Diagram

Engine, Made in Japan

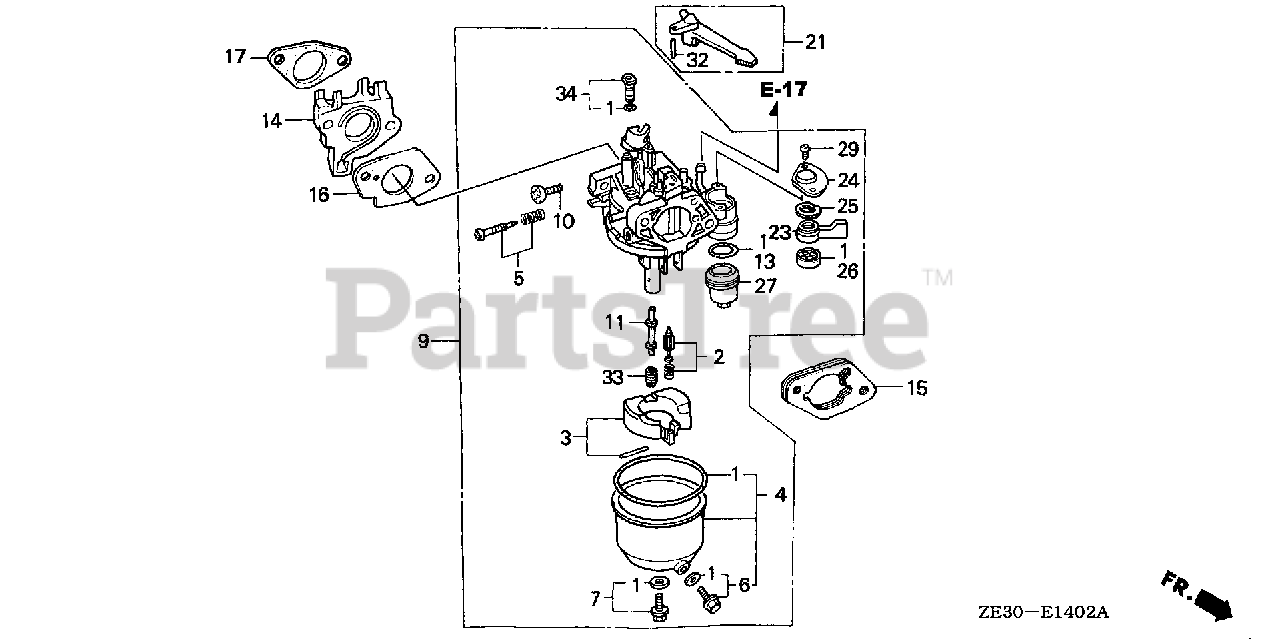

CARBURETOR (3) Parts Diagram

  • Title

1

Honda 16010-ZE2-812

SEE PART DETAILS - PRI; GASKET SET (INCLUDES 16173-001-004)

Note: (Optional).

$18.99

$

In Stock, Qty 20+

0

2

Honda 16011-ZA0-931

VALVE SET, FLOAT

Note: (Optional).

$43.99

$

In Stock, only 2 left!

0

3

Honda 16013-ZA0-931

FLOAT SET

Note: (Optional).

$49.99

$

Usually ships in 3-6 days

0

4

Honda 16015-ZE8-005

CHAMBER SET, FLOAT

Note: (Optional).

$44.99

$

Usually ships in 3-6 days

0

5

Honda 16016-ZE0-005

SCREW SET, PILOT

Note: (Optional).

$14.99

$

In Stock, only 1 left!

0

6

Honda 16024-ZE1-811

SCREW SET, DRAIN

Note: (Optional).

$10.99

$

In Stock, only 3 left!

0

7

Honda 16028-ZE0-005

SEE PART DETAILS - SUP; SCREW SET
(Superseded to 16028-ZK7-S91)

Note: (Optional).

$13.99

$

In Stock, only 3 left!

0

7

Honda 16028-ZK7-S91

SEE PART DETAILS - PRI; SCREW SET

Note: (Optional).

$13.99

$

In Stock, only 3 left!

0

9

Honda 16100-ZE3-844

SEE PART DETAILS - PRI; CARBURETOR ASSY. (BE18A C) (NOT AVAILABLE)

Note: (Optional).

$

$

Currently unavailable

10

Honda 16124-ZE0-005

SCREW, THROTTLE STOP

Note: (Optional).

$17.99

$

In Stock, only 1 left!

0

11

Honda 16166-ZE3-842

NOZZLE, MAIN

Note: (Optional).

$

$

Not available

13

Honda 16173-001-004

GASKET, FUEL STRAINER CUP

Note: (Optional).

$7.49

$

In Stock, Qty 7

0

14

Honda 16211-ZE3-000

INSULATOR, CARBURETOR

$19.99

$

In Stock, only 1 left!

0

15

Honda 16220-ZA0-702

SPACER, CARBURETOR

Note: (Optional).

$11.99

$

Usually ships in 3-6 days

0

16

Honda 16221-ZE3-306

SEE PART DETAILS - SUP; GASKET, CARBURETOR
(Superseded to 16221-ZE3-800)

$2.99

$

In Stock, Qty 20+

0

16

Honda 16221-ZE3-800

SEE PART DETAILS - PRI; GASKET, CARBURETOR

$2.99

$

In Stock, Qty 20+

0

17

Honda 16223-ZE3-306

SEE PART DETAILS - SUP; GASKET, INSULATOR
(Superseded to 16223-ZE3-800)

$2.99

$

In Stock, Qty 10

0

17

Honda 16223-ZE3-800

SEE PART DETAILS - PRI; GASKET, INSULATOR

$2.99

$

In Stock, Qty 10

0

21

Honda 16610-ZE1-000

LEVER, CHOKE (STD)

Note: (Optional).

$10.99

$

In Stock, Qty 10

0

23

Honda 16953-ZE1-406

SEE PART DETAILS - PRI; LEVER, VALVE

Note: (Optional).

$13.99

$

Usually ships in 3-6 days

0

24

Honda 16954-ZE1-812

PLATE, LEVER SETTING

Note: (Optional).

$4.49

$

In Stock, only 1 left!

0

25

Honda 16956-ZE1-811

SPRING, PETCOCK LEVER

Note: (Optional).

$3.99

$

In Stock, only 1 left!

0

26

Honda 16957-ZE1-812

SEE PART DETAILS - PRI; GASKET, PETCOCK

Note: (Optional).

$4.49

$

In Stock, Qty 20+

0

27

Honda 16967-ZE0-811

CUP, FUEL STRAINER

Note: (Optional).

$22.99

$

In Stock, only 4 left!

0

29

Honda 93500-03008-1G

SCREW, PAN (3X8)

Note: (Optional).

$

$

Currently unavailable

32

Honda 94305-20122

PIN, SPRING (2X12)

Note: (Optional).

$2.49

$

In Stock, Qty 5

0

33

Honda 99101-124-1000

JET, MAIN (#100)

Note: (Optional).

$11.99

$

Usually ships in 3-6 days

0

33

Honda 99101-124-1020

JET, MAIN (#102)

Note: (Optional).

$11.99

$

Usually ships in 3-6 days

0

33

Honda 99101-124-1050

JET, MAIN (#105)

Note: (Optional).

$11.99

$

Usually ships in 3-6 days

0

34

Honda 99204-ZE0-0350

JET SET, PILOT (#35)

Note: (Optional).

$22.99

$

In Stock, only 3 left!

0
