GX340 QAP (GC05) - Honda Engine, Made in Japan (SN: GC05-1000001 - GC05-1469766) AIR CLEANER (1) Parts Diagram

Engine, Made in Japan

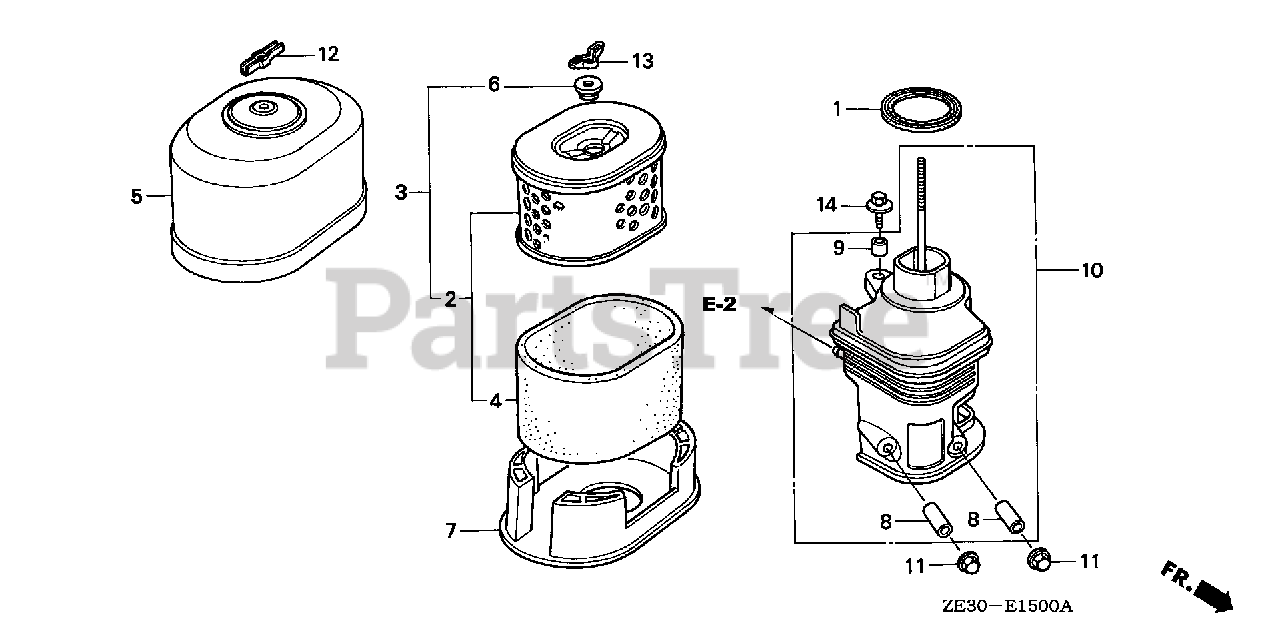

AIR CLEANER (1) Parts Diagram

  • Title

1

Honda 16271-ZE2-000

GASKET, ELBOW
(Superseded to 16271-ZE2-010)

$3.49

$

In Stock, Qty 11

0

3

Honda 17210-ZE3-010

SEE PART DETAILS - SUP; ELEMENT, AIR CLEANER
(Superseded to 17210-ZE3-505)

$21.99

$

In Stock, Qty 20+

0

3

Honda 17210-ZE3-505

SEE PART DETAILS - PRI; ELEMENT, AIR CLEANER

$21.99

$

In Stock, Qty 20+

0

4

Honda 17218-ZE3-505

SEE PART DETAILS - PRI; FILTER (OUTER)
(Superseded to 17218-ZE3-000)

$

$

Not available

5

Honda 17230-ZE3-000

COVER, AIR CLEANER (STD)

$35.99

$

In Stock, only 1 left!

0

6

Honda 17232-891-000

GROMMET, AIR CLEANER

$5.99

$

In Stock, Qty 16

0

7

Honda 17235-ZE3-000

NOSE, MUFFLER

$19.99

$

Usually ships in 3-6 days

0

8

Honda 17238-ZE2-310

COLLAR, AIR CLEANER

$4.99

$

In Stock, Qty 10

0

9

Honda 17239-ZE1-000

COLLAR B, AIR CLEANER

$4.99

$

In Stock, Qty 7

0

10

Honda 17410-ZE3-020

SEE PART DETAILS - PRI; ELBOW, AIR CLEANER

$48.99

$

Usually ships in 3-6 days

0

11

Honda 90201-415-000

NUT, CAP (6MM)

$2.99

$

In Stock, Qty 12

0

12

Honda 90203-PB2-000

NUT, AIR CLEANER COVER (DACRO COATING)

$10.99

$

In Stock, only 3 left!

0

13

Honda 90325-044-000

NUT, TOOL BOX SETTING

$5.49

$

In Stock, Qty 20+

0

14

Honda 93404-06020-08

SEE PART DETAILS - PRI; BOLT-WASHER (6X20)

$2.49

$

In Stock, only 2 left!

0
