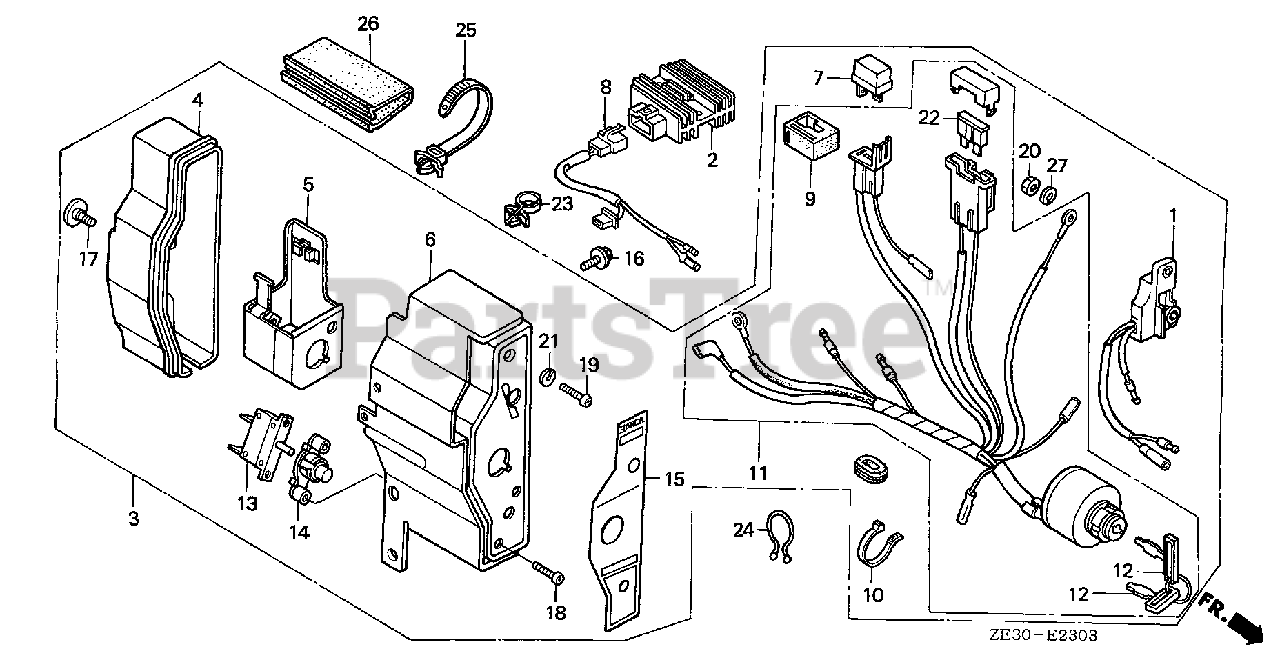

GX340 QAE0 (GC05) - Honda Engine, Made in Japan (SN: GC05-1000001 - GC05-1469766) CONTROL BOX (4) Parts Diagram

Engine, Made in Japan

CONTROL BOX (4) Parts Diagram

  • Title

1

Honda 15520-ZE3-821

ALERT UNIT, OIL (NOT AVAILABLE)

Note: (Optional).

$104.99

$

Usually ships in 3-6 days

0

2

Honda 31600-ZE2-861

RECTIFIER ASSY., REGULATOR (10A)

Note: (Optional).

$240.99

$

Usually ships in 3-6 days

0

3

Honda 31610-ZE3-871

BOX ASSY., CONTROL (EXTERNAL-ALERT-10A)

Note: (Optional). Use up to Engine SN 1447133.

$

$

Currently unavailable

3

Honda 31610-ZE3-872ZA

BOX ASSY., CONTROL (EXTERNAL-ALERT/10A) *R8* (BRIGHT RED) (NOT AVAILABLE)

Note: (Optional). Use from Engine SN 1447134.

$

$

Currently unavailable

4

Honda 31612-ZE2-003

CASE, CONTROL

Note: (Optional).

$23.99

$

Usually ships in 3-6 days

0

5

Honda 31614-ZE2-003

BRACKET, CASE MOUNTING

Note: (Optional).

$19.99

$

Usually ships in 3-6 days

0

6

Honda 31615-ZE3-003ZE

SEE PART DETAILS - PRI; PANEL, CONTROL *R280* (POWER RED)

Note: (Optional).

$31.99

$

Usually ships in 3-6 days

0

8

Honda 32110-ZE2-860

SUB-WIRE HARNESS ASSY.

Note: (Optional).

$50.99

$

Usually ships in 3-6 days

0

10

Honda 32902-892-003

BAND

Note: (Optional).

$4.99

$

In Stock, only 4 left!

0

11

Honda 35100-ZE2-862

SWITCH ASSY., COMBINATION (10A-CHARGE)

Note: (Optional).

$174.99

$

Usually ships in 3-6 days

0

12

Honda 35111-880-013

KEY (HONDALOCK)

Note: (Optional).

$12.99

$

In Stock, Qty 5

0

15

Honda 87529-ZE2-870

MARK, CONTROL BOX (EXTERNAL-ALERT)(REGULATOR) (NOT AVAILABLE)

Note: (Optional).

$

$

Not available

16

Honda 90013-883-000

BOLT, FLANGE (6X12) (CT200)

Note: (Optional).

$2.49

$

In Stock, Qty 20+

0

17

Honda 90380-MA6-010

SCREW, SPECIAL (6X12)

Note: (Optional).

$4.49

$

Usually ships in 3-6 days

0

19

Honda 93500-04012-0H

SCREW, PAN (4X12)

Note: (Optional).

$1.49

$

In Stock, only 2 left!

0

20

Honda 94001-04390-0S

NUT, HEX. (4MM) (SOURCE: VINTAGE PARTS INC.)

Note: (Optional).

$1.49

$

Usually ships in 3-6 days

0

21

Honda 94111-04800

WASHER, SPRING (4MM)

$1.49

$

Usually ships in 3-6 days

0

22

Honda 98200-31500

FUSE, BLADE (15A)

Note: (Optional).

$1.99

$

In Stock, Qty 6

0

23

Honda 36103-ZE1-000

SEE PART DETAILS - PRI; HOLDER, STOP SWITCH WIRE

$2.99

$

In Stock, only 1 left!

0

24

Honda 90630-751-000

CLIP, PURSE LOCK

$2.99

$

Usually ships in 3-6 days

0

25

Honda 90672-SA0-003

STRAP, CABLE (118MM) (BLACK)

$10.99

$

Usually ships in 3-6 days

0

26

Honda 91406-ZE2-003

TUBE, FASTENER (30MM)

$7.49

$

Usually ships in 3-6 days

0
