GX340 QAE0 (GC05) - Honda Engine, Made in Japan (SN: GC05-1000001 - GC05-1469766) CARBURETOR (1) Parts Diagram

Engine, Made in Japan

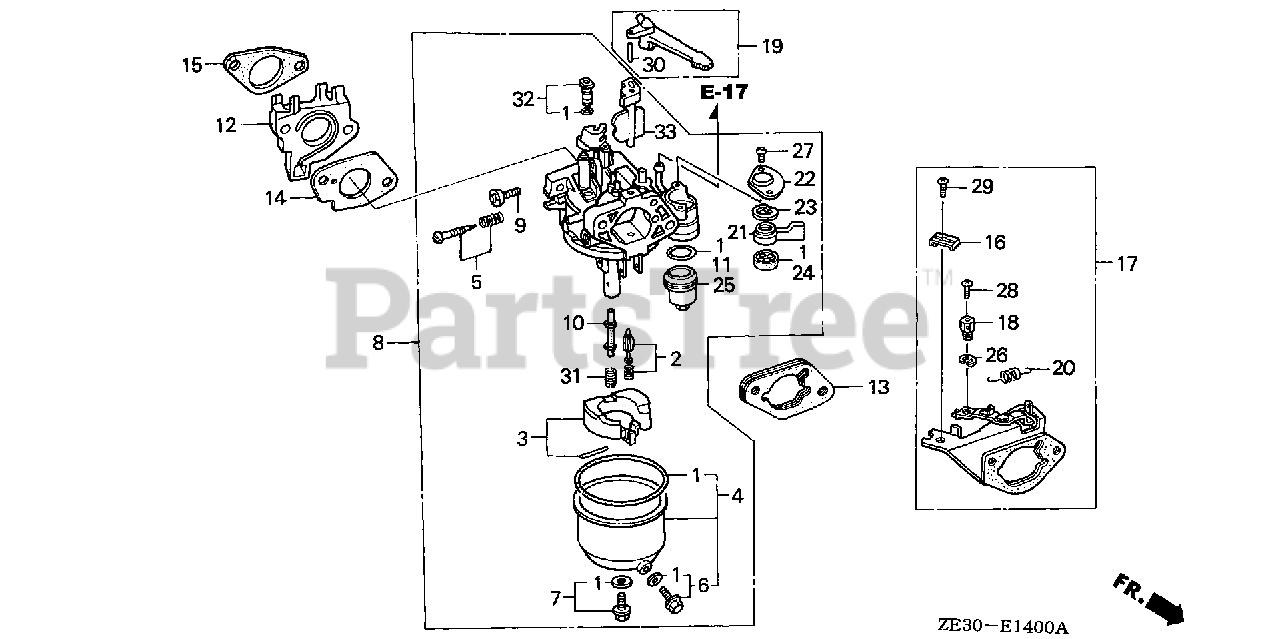

CARBURETOR (1) Parts Diagram

  • Title

1

Honda 16010-ZE2-812

SEE PART DETAILS - PRI; GASKET SET (INCLUDES 16173-001-004)

$20.99

$

In Stock, Qty 20+

0

2

Honda 16011-ZA0-931

VALVE SET, FLOAT

$47.99

$

In Stock, only 4 left!

0

3

Honda 16013-ZA0-931

FLOAT SET

$53.99

$

In Stock, only 1 left!

0

4

Honda 16015-ZE8-005

CHAMBER SET, FLOAT

$48.99

$

Usually ships in 3-6 days

0

5

Honda 16016-ZE0-005

SCREW SET, PILOT

$16.99

$

In Stock, only 1 left!

0

6

Honda 16024-ZE1-811

SCREW SET, DRAIN

$11.99

$

In Stock, only 3 left!

0

7

Honda 16028-ZE0-005

SEE PART DETAILS - SUP; SCREW SET
(Superseded to 16028-ZK7-S91)

$14.99

$

In Stock, Qty 8

0

7

Honda 16028-ZK7-S91

SEE PART DETAILS - PRI; SCREW SET

$14.99

$

In Stock, Qty 8

0

8

Honda 16100-ZE3-814

SEE PART DETAILS - PRI; CARBURETOR ASSY. (BE30B E)

$145.99

$

In Stock, only 1 left!

0

9

Honda 16124-ZE0-005

SCREW, THROTTLE STOP

$18.99

$

In Stock, only 1 left!

0

10

Honda 16166-ZE3-811

NOZZLE, MAIN

$

$

Not available

11

Honda 16173-001-004

GASKET, FUEL STRAINER CUP

$7.99

$

In Stock, Qty 20+

0

12

Honda 16211-ZE3-000

INSULATOR, CARBURETOR

$21.99

$

In Stock, only 2 left!

0

13

Honda 16220-ZA0-702

SPACER, CARBURETOR

$12.99

$

In Stock, Qty 20+

0

14

Honda 16221-ZE3-306

SEE PART DETAILS - SUP; GASKET, CARBURETOR
(Superseded to 16221-ZE3-800)

$2.99

$

In Stock, Qty 20+

0

14

Honda 16221-ZE3-800

SEE PART DETAILS - PRI; GASKET, CARBURETOR

$2.99

$

In Stock, Qty 20+

0

15

Honda 16223-ZE3-306

SEE PART DETAILS - SUP; GASKET, INSULATOR
(Superseded to 16223-ZE3-800)

$2.99

$

In Stock, Qty 20+

0

15

Honda 16223-ZE3-800

SEE PART DETAILS - PRI; GASKET, INSULATOR

$2.99

$

In Stock, Qty 20+

0

19

Honda 16610-ZE1-000

LEVER, CHOKE (STD)

$11.99

$

In Stock, Qty 13

0

21

Honda 16953-ZE1-406

SEE PART DETAILS - PRI; LEVER, VALVE

$15.99

$

Usually ships in 3-6 days

0

22

Honda 16954-ZE1-812

PLATE, LEVER SETTING

$4.49

$

In Stock, Qty 11

0

23

Honda 16956-ZE1-811

SPRING, PETCOCK LEVER

$4.49

$

In Stock, Qty 9

0

24

Honda 16957-ZE1-812

SEE PART DETAILS - PRI; GASKET, PETCOCK

$4.99

$

In Stock, Qty 20+

0

25

Honda 16967-ZE0-811

CUP, FUEL STRAINER

$24.99

$

In Stock, only 3 left!

0

27

Honda 93500-03008-1G

SCREW, PAN (3X8)

$

$

Currently unavailable

30

Honda 94305-20122

PIN, SPRING (2X12)

$2.49

$

In Stock, only 3 left!

0

31

Honda 99101-124-0920

JET, MAIN (#92)

Note: (Optional).

$12.99

$

Usually ships in 3-6 days

0

31

Honda 99101-124-0950

JET, MAIN (#95)

Note: (Optional).

$14.99

$

Usually ships in 3-6 days

0

31

Honda 99101-124-0980

JET, MAIN (#98)

$14.99

$

Usually ships in 3-6 days

0

32

Honda 99204-ZE0-0350

JET SET, PILOT (#35)

$24.99

$

In Stock, only 4 left!

0

33

Honda 16044-ZE3-811

CHOKE SET

$38.99

$

Usually ships in 3-6 days

0
