GX340 QAE (GC05) - Honda Engine, Made in Japan (SN: GC05-1000001 - GC05-1469766) QAE CONTROL BOX (1A) Parts Diagram

Engine, Made in Japan

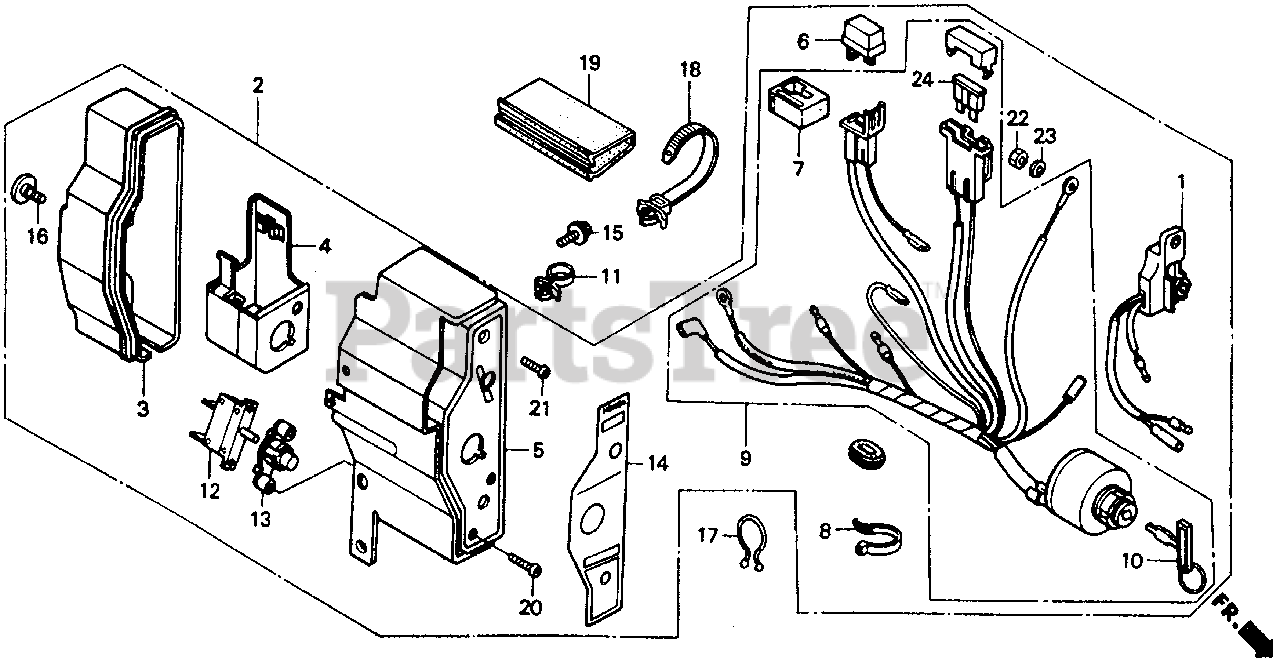

QAE CONTROL BOX (1A) Parts Diagram

  • Title

1

Honda 15520-ZE3-821

ALERT UNIT, OIL (SEL) (Honda Code 2107837).

$97.99

$

Usually ships in 3-6 days

0

2

Honda 31610-ZE3-832

SEE PART DETAILS - PRI; BOX ASSY., CONTROL (EXTERNAL-ALERT) (Honda Code 3621356).

Note: Use up to Engine SN 1412031.

$

$

Currently unavailable

2

Honda 31610-ZE3-852

BOX ASSY., CONTROL (3A) (EXTERNAL-ALERT) (Honda Code 4070272).

Note: Use from Engine SN 1412032.

$

$

Currently unavailable

3

Honda 31612-ZE2-003

SEE PART DETAILS - PRI; CASE, CONTROL (Honda Code 2095875).

$21.99

$

In Stock, only 1 left!

0

4

Honda 31614-ZE2-003

SEE PART DETAILS - PRI; BRACKET, CASE MOUNTING (Honda Code 2095883).

$17.99

$

Usually ships in 3-6 days

0

5

Honda 31615-ZE3-003ZB

SEE PART DETAILS - SUP; PANEL, CONTROL *R8* (BRIGHT RED) (Honda Code 4070280).
(Superseded to 31615-ZE3-003ZE)

$29.99

$

Usually ships in 3-6 days

0

6

Honda 31700-124-003

SEE PART DETAILS - PRI; RECTIFIER ASSY., SILICON (STANLEY) (Honda Code 0351346).
(Superseded to 31700-124-008)

$39.99

$

In Stock, only 1 left!

0

7

Honda 32127-738-700

SUSPENSION, CONNECTOR (Honda Code 2026631).

$4.99

$

Usually ships in 3-6 days

0

8

Honda 32902-892-003

BAND (Honda Code 0947457).

$4.99

$

In Stock, only 2 left!

0

9

Honda 35100-ZE2-023

SEE PART DETAILS - PRI; SWITCH ASSY., COMBINATION (Honda Code 3682077).

Note: Use up to Engine SN 1412031.

$

$

Not available

9

Honda 35100-ZE2-842

SWITCH ASSY., COMBINATION (Honda Code 3916335).

Note: Use from Engine SN 1412032.

$

$

Not available

10

Honda 35111-880-003

SEE PART DETAILS - SUP; KEY (Honda Code 0485706).
(Superseded to 35111-880-013)

$11.99

$

In Stock, Qty 5

0

11

Honda 36103-ZE1-000

HOLDER, STOP SWITCH WIRE (Honda Code 1429141).

$2.49

$

In Stock, only 1 left!

0

12

Honda 38240-VA3-900

PROTECTOR, CIRCUIT (1.0A) (Honda Code 1751288).

Note: Use up to Engine SN 1412031.

$33.99

$

Usually ships in 3-6 days

0

12

Honda 38240-ZE2-840

PROTECTOR, CIRCUIT (3.5A) (Honda Code 2652931).

Note: Use from Engine SN 1412032.

$32.99

$

Usually ships in 3-6 days

0

13

Honda 38250-ZA8-701

LENS ASSY., PROTECTOR (Honda Code 1888676).

$19.99

$

Usually ships in 3-6 days

0

14

Honda 87529-ZE2-831

SEE PART DETAILS - PRI; PANEL, CONTROL BOX (EXTERNAL-ALERT) (Honda Code 2097012).

$

$

Not available

15

Honda 90013-883-000

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) (CT200) (Honda Code 0636845).

$1.99

$

In Stock, Qty 20+

0

16

Honda 90380-MA6-010

SEE PART DETAILS - PRI; SCREW, SPECIAL (6X12) (Honda Code 1490648).

$4.49

$

Usually ships in 3-6 days

0

17

Honda 90630-751-000

CLIP, PURSE LOCK (Honda Code 2159598).

$2.49

$

Usually ships in 3-6 days

0

18

Honda 90672-SA0-003

STRAP, CABLE (118MM) *NH1L* (BLACK) (Honda Code 1170653).

$9.99

$

Usually ships in 3-6 days

0

19

Honda 91406-ZE2-003

TUBE, FASTENER (30) (Honda Code 2159762).

$6.99

$

Usually ships in 3-6 days

0

20

Honda 93500-03012-0H

SEE PART DETAILS - PRI; SCREW, PAN (3X12) (Honda Code 0665521).

$1.49

$

Usually ships in 3-6 days

0

21

Honda 93500-04012-0H

SEE PART DETAILS - PRI; SCREW, PAN (4X12) (Honda Code 0285643).

$1.49

$

In Stock, Qty 10

0

22

Honda 94001-04390-0S

SEE PART DETAILS - PRI; NUT, HEX. (4MM) (Honda Code 0499707).

$1.49

$

Usually ships in 3-6 days

0

23

Honda 94111-04800

WASHER, SPRING (4MM) (Honda Code 0346114).

$1.49

$

Usually ships in 3-6 days

0

24

Honda 98200-30500

SEE PART DETAILS - PRI; FUSE, BLADE (5A) (Honda Code 1938737).

Note: Use up to Engine SN 1412031.

$1.99

$

In Stock, Qty 5

0

24

Honda 98200-31500

FUSE, BLADE (15A) (Honda Code 1644244).

Note: Use from Engine SN 1412032.

$1.99

$

In Stock, Qty 6

0
