GX340 QAE (GC05) - Honda Engine, Made in Japan (SN: GC05-1000001 - GC05-1469766) CONTROL BOX (2) Parts Diagram

Engine, Made in Japan

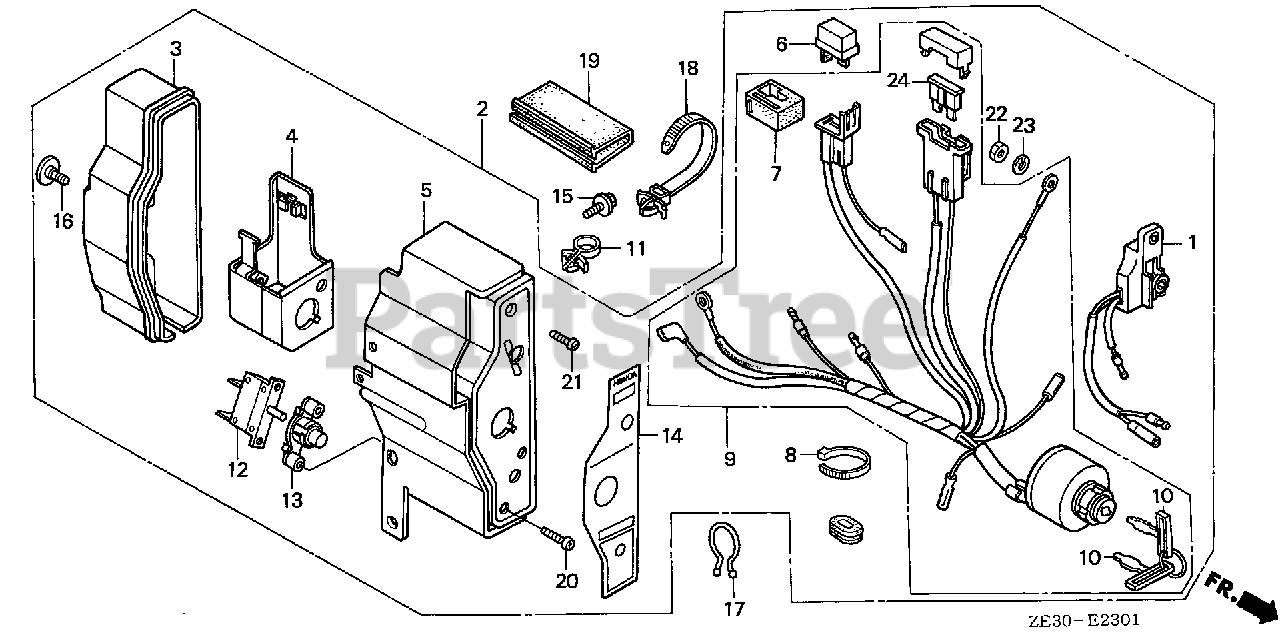

CONTROL BOX (2) Parts Diagram

  • Title

1

Honda 15520-ZE3-821

ALERT UNIT, OIL (NOT AVAILABLE)

Note: (Optional).

$104.99

$

Usually ships in 3-6 days

0

2

Honda 31610-ZE3-832

BOX ASSY., CONTROL (EXTERNAL-ALERT) (NOT AVAILABLE)

Note: Use up to Engine SN 1412031.

$

$

Currently unavailable

2

Honda 31610-ZE3-852

BOX ASSY., CONTROL (EXTERNAL-ALART-3A) (NOT AVAILABLE)

Note: Use from Engine SN 1412032.

$

$

Currently unavailable

3

Honda 31612-ZE2-003

CASE, CONTROL

Note: (Optional).

$22.99

$

Usually ships in 3-6 days

0

4

Honda 31614-ZE2-003

BRACKET, CASE MOUNTING

Note: (Optional).

$18.99

$

Usually ships in 3-6 days

0

5

Honda 31615-ZE3-003ZE

SEE PART DETAILS - PRI; PANEL, CONTROL *R280* (POWER RED)

Note: (Optional).

$30.99

$

Usually ships in 3-6 days

0

6

Honda 31700-124-008

SEE PART DETAILS - PRI; RECTIFIER ASSY., SILICON (SHINDENGEN)

Note: (Optional).

$40.99

$

In Stock, only 1 left!

0

7

Honda 32127-738-700

SUSPENSION, CONNECTOR

Note: (Optional).

$4.99

$

Usually ships in 3-6 days

0

8

Honda 32902-892-003

BAND

Note: (Optional).

$4.99

$

In Stock, only 1 left!

0

9

Honda 35100-ZE2-033

SWITCH ASSY., COMBINATION

Note: Use up to Engine SN 1412031.

$121.99

$

Usually ships in 3-6 days

0

9

Honda 35100-ZE2-843

SWITCH ASSY., COMBINATION (3A-CHARGE)

Note: Use from Engine SN 1412032.

$130.99

$

Usually ships in 3-6 days

0

10

Honda 35111-880-013

KEY (HONDALOCK)

Note: (Optional).

$11.99

$

In Stock, only 3 left!

0

11

Honda 36103-ZE1-000

SEE PART DETAILS - PRI; HOLDER, STOP SWITCH WIRE

Note: (Optional).

$2.99

$

In Stock, only 1 left!

0

12

Honda 38240-VA3-900

PROTECTOR, CIRCUIT (1.0A)

Note: Use up to Engine SN 1412031.

$35.99

$

Usually ships in 3-6 days

0

12

Honda 38240-ZE2-840

PROTECTOR, CIRCUIT (3.5A)

Note: Use from Engine SN 1412032.

$33.99

$

Usually ships in 3-6 days

0

13

Honda 38250-ZA8-701

LENS ASSY., PROTECTOR

Note: (Optional).

$20.99

$

Usually ships in 3-6 days

0

14

Honda 87529-ZE2-831

PANEL, CONTROL BOX (EXTERNAL-ALERT) (NOT AVAILABLE)

Note: (Optional).

$

$

Not available

15

Honda 90013-883-000

BOLT, FLANGE (6X12) (CT200)

Note: (Optional).

$2.49

$

In Stock, Qty 17

0

16

Honda 90380-MA6-010

SCREW, SPECIAL (6X12)

Note: (Optional).

$4.49

$

Usually ships in 3-6 days

0

17

Honda 90630-751-000

CLIP, PURSE LOCK

Note: (Optional).

$2.99

$

Usually ships in 3-6 days

0

18

Honda 90672-SA0-003

STRAP, CABLE (118MM) (BLACK)

Note: (Optional).

$9.99

$

In Stock, only 1 left!

0

19

Honda 91406-ZE2-003

TUBE, FASTENER (30MM)

Note: (Optional).

$7.49

$

Usually ships in 3-6 days

0

20

Honda 93500-03012-0H

SCREW, PAN (3X12)

Note: (Optional).

$1.49

$

Usually ships in 3-6 days

0

21

Honda 93500-04012-0H

SCREW, PAN (4X12)

Note: (Optional).

$1.49

$

In Stock, Qty 10

0

22

Honda 94001-04390-0S

NUT, HEX. (4MM) (SOURCE: VINTAGE PARTS INC.)

Note: (Optional).

$1.49

$

Usually ships in 3-6 days

0

23

Honda 94111-04800

WASHER, SPRING (4MM)

Note: (Optional).

$1.49

$

Usually ships in 3-6 days

0

24

Honda 98200-30500

FUSE, BLADE (5A)

Note: Use up to Engine SN 1412031.

$1.99

$

In Stock, Qty 5

0

24

Honda 98200-31500

FUSE, BLADE (15A)

Note: Use from Engine SN 1412032.

$1.99

$

In Stock, Qty 6

0
