GX340 QAC (GC05) - Honda Engine, Made in Japan (SN: GC05-1000001 - GC05-1469766) AIR CLEANER (3) Parts Diagram

Engine, Made in Japan

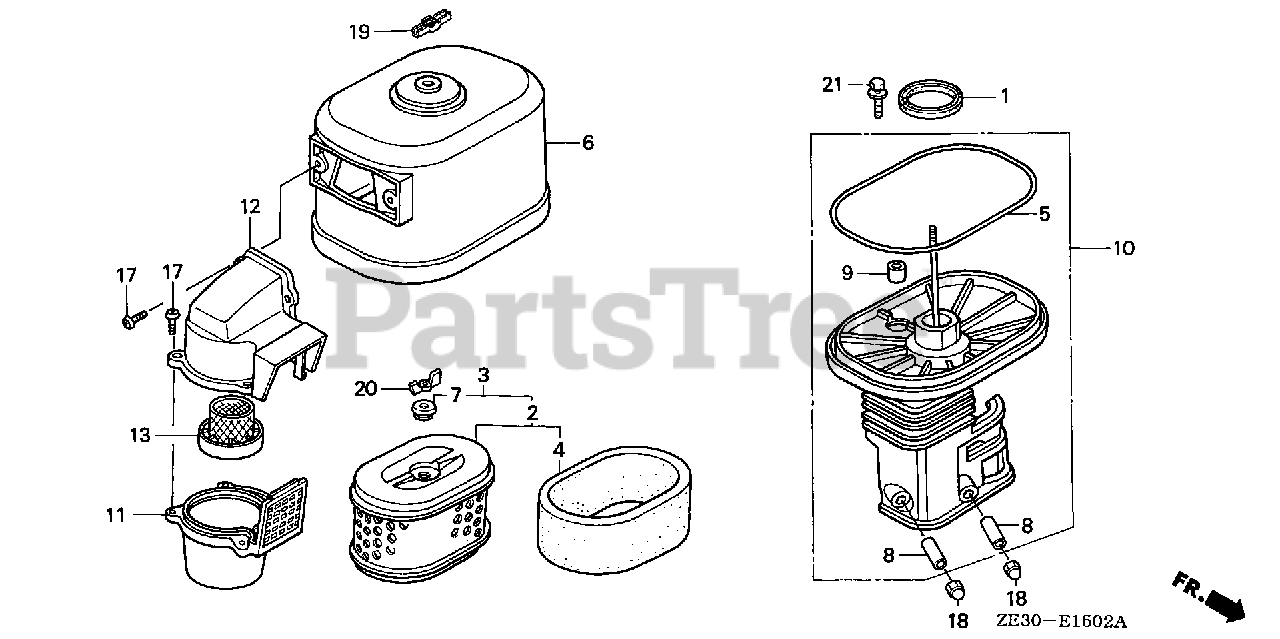

AIR CLEANER (3) Parts Diagram

  • Title

1

Honda 16271-ZE2-000

GASKET, ELBOW
(Superseded to 16271-ZE2-010)

Note: (Optional).

$3.49

$

In Stock, Qty 5

0

2

Honda 17210-ZE3-010

SEE PART DETAILS - SUP; ELEMENT, AIR CLEANER
(Superseded to 17210-ZE3-505)

$21.99

$

In Stock, Qty 20+

0

2

Honda 17210-ZE3-505

SEE PART DETAILS - PRI; ELEMENT, AIR CLEANER

$21.99

$

In Stock, Qty 20+

0

3

Honda 17210-ZE3-010

SEE PART DETAILS - SUP; ELEMENT, AIR CLEANER
(Superseded to 17210-ZE3-505)

Note: (Optional).

$21.99

$

In Stock, Qty 20+

0

3

Honda 17210-ZE3-505

SEE PART DETAILS - PRI; ELEMENT, AIR CLEANER

Note: (Optional).

$21.99

$

In Stock, Qty 20+

0

4

Honda 17218-ZE3-505

SEE PART DETAILS - PRI; FILTER (OUTER)
(Superseded to 17218-ZE3-000)

Note: (Optional).

$

$

Not available

5

Honda 17219-HA2-405

SEE PART DETAILS - PRI; SEAL, AIR CLEANER COVER

Note: (Optional).

$8.49

$

In Stock, only 1 left!

0

5

Honda 17219-KL4-000

SEE PART DETAILS - SUP; SEAL, AIR CLEANER COVER
(Superseded to 17219-HA2-405)

Note: (Optional).

$8.49

$

In Stock, only 1 left!

0

6

Honda 17230-ZE3-841

COVER, AIR CLEANER (CYCLONE)

Note: (Optional).

$46.99

$

In Stock, only 1 left!

0

7

Honda 17232-891-000

GROMMET, AIR CLEANER

Note: (Optional).

$5.99

$

In Stock, Qty 15

0

8

Honda 17238-ZE2-310

COLLAR, AIR CLEANER

Note: (Optional).

$4.99

$

In Stock, Qty 10

0

9

Honda 17239-ZE1-000

COLLAR B, AIR CLEANER

Note: Use up to Engine SN 1101364.

$4.99

$

In Stock, Qty 7

0

9

Honda 17239-ZE3-840

COLLAR B, AIR CLEANER

Note: Use from Engine SN 1101365.

$3.99

$

Usually ships in 3-6 days

0

10

Honda 17410-ZE3-840

SEE PART DETAILS - SUP; ELBOW, AIR CLEANER
(Superseded to 17410-ZE3-841)

Note: (Optional).

$37.99

$

In Stock, only 1 left!

0

10

Honda 17410-ZE3-841

SEE PART DETAILS - PRI; ELBOW, AIR CLEANER

Note: (Optional).

$37.99

$

In Stock, only 1 left!

0

11

Honda 17470-ZE3-841

SEE PART DETAILS - SUP; CASE, PRE AIR CLEANER
(Superseded to 17470-ZE3-842)

Note: (Optional).

$27.99

$

In Stock, only 1 left!

0

11

Honda 17470-ZE3-842

SEE PART DETAILS - PRI; CASE, PRE AIR CLEANER

Note: (Optional).

$27.99

$

In Stock, only 1 left!

0

12

Honda 17475-ZE3-841

CAP, PRE AIR CLEANER

Note: (Optional).

$28.99

$

In Stock, only 1 left!

0

13

Honda 17476-ZE3-841

GUIDE, PRE AIR CLEANER

Note: (Optional).

$18.99

$

In Stock, only 1 left!

0

17

Honda 90142-MB0-000

SCREW, PAN (5X16.5)

Note: (Optional).

$3.99

$

In Stock, only 4 left!

0

18

Honda 90201-415-000

NUT, CAP (6MM)

Note: (Optional).

$2.99

$

In Stock, Qty 9

0

19

Honda 90203-PB2-000

NUT, AIR CLEANER COVER (DACRO COATING)

Note: (Optional).

$10.99

$

In Stock, only 3 left!

0

20

Honda 90325-044-000

NUT, TOOL BOX SETTING

Note: (Optional).

$5.49

$

In Stock, Qty 20+

0

21

Honda 93404-06020-08

SEE PART DETAILS - PRI; BOLT-WASHER (6X20)

Note: (Optional).

$2.49

$

In Stock, only 2 left!

0
