GX340 QA (GC05) - Honda Engine, Made in Japan (SN: GC05-1000001 - GC05-1469766) MUFFLER Parts Diagram

Engine, Made in Japan

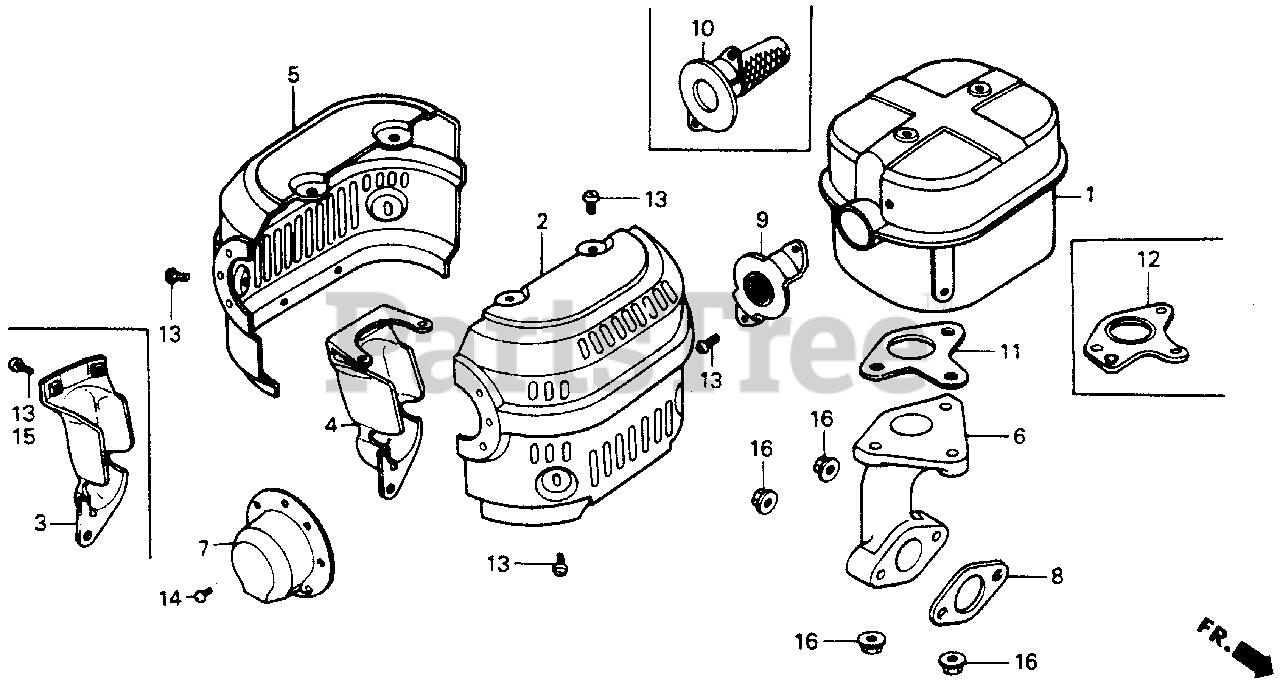

MUFFLER Parts Diagram

  • Title

1

Honda 18310-ZE3-003

MUFFLER (Honda Code 2108041).

$140.99

$

Usually ships in 3-6 days

0

2

Honda 18320-ZE3-G10

SEE PART DETAILS - PRI; PROTECTOR, R. MUFFLER (ALUMINIZED) (Honda Code 4049920).
(Superseded to 18320-ZE3-G11)

$43.99

$

Usually ships in 3-6 days

0

2

Honda 18320-ZE3-003

SEE PART DETAILS - SUP; PROTECTOR, R. MUFFLER (Honda Code 2108058).

$

$

Currently unavailable

3

Honda 18323-ZE3-812

SEE PART DETAILS - PRI; PROTECTOR, EX. PIPE (Honda Code 2491702).

$22.99

$

Usually ships in 3-6 days

0

4

Honda 18323-ZE3-812

SEE PART DETAILS - PRI; PROTECTOR, EX. PIPE (Honda Code 2491702).

$22.99

$

Usually ships in 3-6 days

0

5

Honda 18325-ZE3-G10

SEE PART DETAILS - PRI; PROTECTOR, L. MUFFLER (ALUMINIZED) (Honda Code 4049953).

$57.99

$

Usually ships in 3-6 days

0

6

Honda 18330-ZE2-000

PIPE, EX. (Honda Code 2026219).

$70.99

$

In Stock, only 1 left!

0

7

Honda 18331-ZE3-810

CAP, MUFFLER (Honda Code 2108082).
(Superseded to 18331-ZE3-811)

$11.99

$

In Stock, only 1 left!

0

8

Honda 18333-ZE3-800

SEE PART DETAILS - SUP; GASKET, EX. PIPE (Honda Code 3520194).
(Superseded to 18333-ZK6-Y00)

$4.99

$

In Stock, Qty 20+

0

8

Honda 18333-ZK6-Y00

SEE PART DETAILS - PRI; GASKET, EX. PIPE (WACKER) (Honda Code 5164199).

$4.99

$

In Stock, Qty 20+

0

9

Honda 18336-ZE3-000

FLANGE, BAFFLE (Honda Code 2309581).

Note: Use up to Engine SN 1289081.

$13.99

$

Usually ships in 3-6 days

0

10

Honda 18355-ZE3-010

SEE PART DETAILS - PRI; ARRESTER, SPARK (Honda Code 2537207).

Note: Use from Engine SN 1289082.

$36.99

$

Usually ships in 3-6 days

0

11

Honda 18381-ZE2-306

SEE PART DETAILS - SUP; GASKET, MUFFLER (Honda Code 4295663).
(Superseded to 18381-ZE2-801)

Note: Use up to Engine SN 1289081.

$14.99

$

In Stock, only 2 left!

0

11

Honda 18381-ZE2-800

SEE PART DETAILS - PRI; GASKET, MUFFLER (Honda Code 3678810).
(Superseded to 18381-ZE2-801)

Note: Use up to Engine SN 1289081.

$14.99

$

In Stock, only 2 left!

0

12

Honda 18381-ZE3-307

SEE PART DETAILS - PRI; GASKET, MUFFLER (Honda Code 4434924).

Note: Use from Engine SN 1289082.

$

$

Not available

13

Honda 90050-ZE1-000

SCREW, TAPPING (5X8) (Honda Code 1431105).

Note: Use up to Engine SN 1004540.

$2.49

$

In Stock, Qty 20+

0

13

Honda 90050-ZE1-000

SCREW, TAPPING (5X8) (Honda Code 1431105).

Note: Use from Engine SN 1004541.

$2.49

$

In Stock, Qty 20+

0

14

Honda 90055-ZE1-000

SCREW, TAPPING (4X6) (Honda Code 1431121).

$1.49

$

In Stock, Qty 13

0

15

Honda 93500-05008-0B

SEE PART DETAILS - PRI; SCREW, PAN (5X8) (Honda Code 0285759).

Note: Use from Engine SN 1004541 to 1013696.

$1.99

$

Usually ships in 3-6 days

0

16

Honda 94050-08000

SEE PART DETAILS - PRI; NUT, FLANGE (8MM) (Honda Code 0481143).

$1.49

$

In Stock, Qty 11

0
