GX340 QA (GC05) - Honda Engine, Made in Japan (SN: GC05-1000001 - GC05-1469766) AIR CLEANER (SILENT) Parts Diagram

Engine, Made in Japan

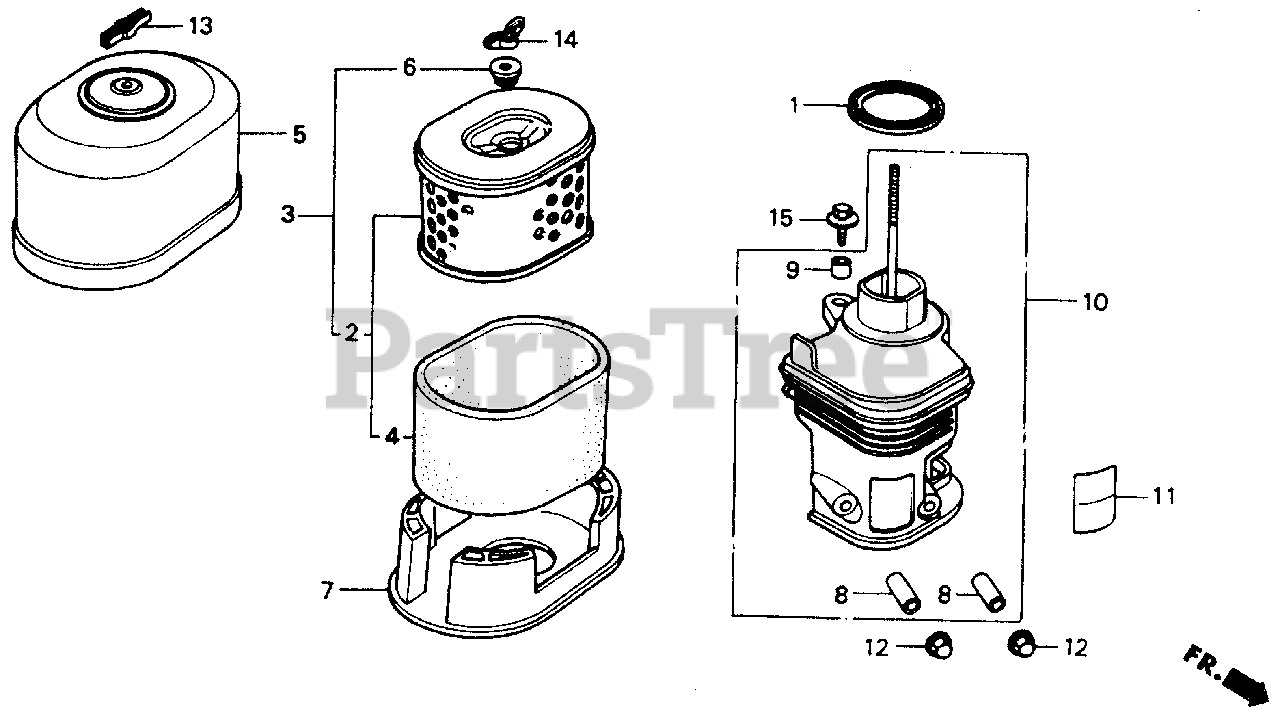

AIR CLEANER (SILENT) Parts Diagram

  • Title

1

Honda 16271-ZE2-000

SEE PART DETAILS - SUP; GASKET, ELBOW (Honda Code 2025948).
(Superseded to 16271-ZE2-010)

$3.49

$

In Stock, Qty 11

0

2

Honda 17210-ZE3-505

SEE PART DETAILS - PRI; ELEMENT, AIR CLEANER (Honda Code 5252697).

$21.99

$

In Stock, Qty 20+

0

3

Honda 17210-ZE3-505

SEE PART DETAILS - PRI; ELEMENT, AIR CLEANER (Honda Code 5252697).

$21.99

$

In Stock, Qty 20+

0

4

Honda 17218-ZE3-000

SEE PART DETAILS - SUP; FILTER (OUTER) (Honda Code 2577377).
(Superseded to 17218-ZE3-505)

$

$

Not available

5

Honda 17230-ZE3-000

COVER, AIR CLEANER (STD) (Honda Code 2108009).

$35.99

$

In Stock, only 1 left!

0

6

Honda 17232-891-000

GROMMET, AIR CLEANER (Honda Code 0999763).

$5.99

$

In Stock, Qty 16

0

7

Honda 17235-ZE3-000

NOSE, MUFFLER (Honda Code 2108017).

$19.99

$

Usually ships in 3-6 days

0

8

Honda 17238-ZE2-300

SEE PART DETAILS - SUP; COLLAR, AIR CLEANER (Honda Code 2026128).

Note: Use up to Engine SN 1048923.

$

$

Currently unavailable

8

Honda 17238-ZE2-310

SEE PART DETAILS - PRI; COLLAR, AIR CLEANER (Honda Code 2384105).

$4.99

$

In Stock, Qty 10

0

9

Honda 17239-ZE1-000

COLLAR B, AIR CLEANER (Honda Code 1427533).

$4.99

$

In Stock, Qty 7

0

10

Honda 04102-ZE3-000

SEE PART DETAILS - PRI; ELBOW SET, AIR CLEANER (Honda Code 2610277).

Note: Use up to Engine SN 1048923.

$

$

Not available

10

Honda 17410-ZE3-000

SEE PART DETAILS - SUP; ELBOW, AIR CLEANER (Honda Code 2108025).
(Superseded to 04102-ZE3-000)

Note: Use up to Engine SN 1048923.

$

$

Not available

10

Honda 17410-ZE3-010

ELBOW, AIR CLEANER (Honda Code 2384113).
(Superseded to 17410-ZE3-020)

Note: Use from Engine SN 1048924.

$48.99

$

Usually ships in 3-6 days

0

11

Honda 87528-ZE2-810

MARK, CHOKE (EXTERNAL) (Honda Code 2026979).

$3.49

$

In Stock, only 1 left!

0

12

Honda 90201-415-000

NUT, CAP (6MM) (Honda Code 0670729).

$2.99

$

In Stock, Qty 12

0

13

Honda 90203-PB2-000

SEE PART DETAILS - PRI; WINGNUT, AIR CLEANER COVER (Honda Code 0994855).

$10.99

$

In Stock, only 3 left!

0

14

Honda 90325-044-000

SEE PART DETAILS - PRI; WINGNUT, TOOL BOX SETTING (Honda Code 0127720).

$5.49

$

In Stock, Qty 20+

0

15

Honda 93404-06020-08

BOLT-WASHER (6X20) (Honda Code 2410694).

$2.49

$

In Stock, only 2 left!

0

15

Honda 93494-06020-08

SEE PART DETAILS - PRI; BOLT-WASHER (6X20) (Honda Code 0468421).

$

$

Not available
