GX340 PAR (GC05) - Honda Engine, Made in Japan (SN: GC05-1000001 - GC05-1469766) STARTER MOTOR Parts Diagram

Engine, Made in Japan

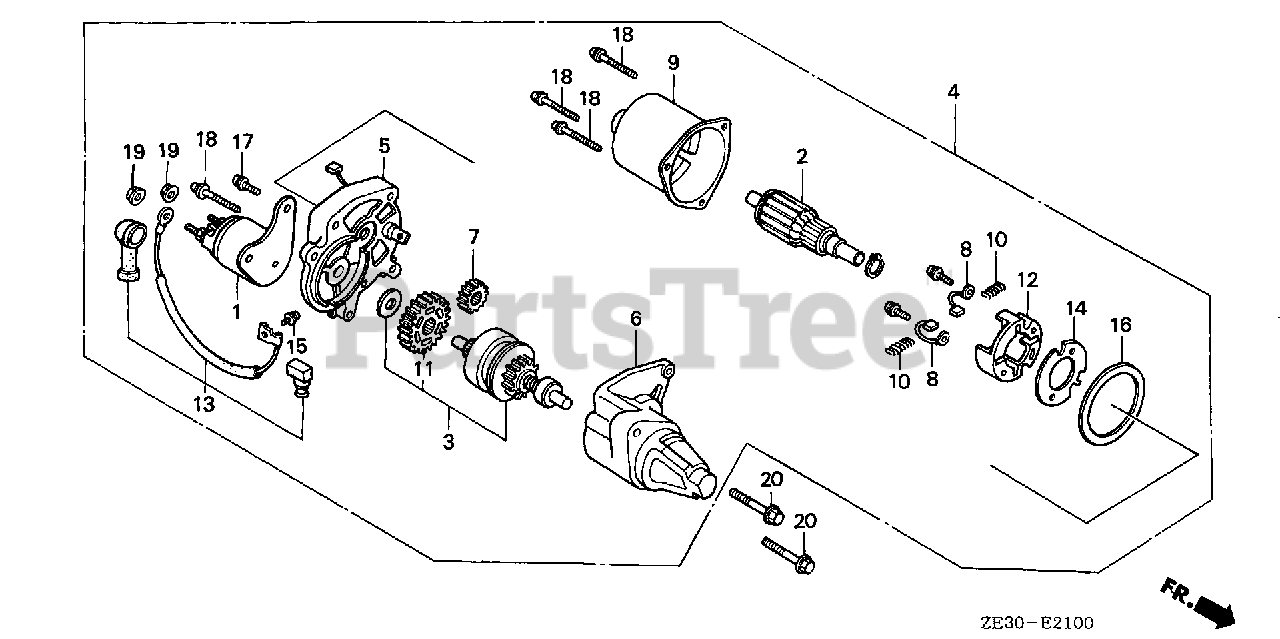

STARTER MOTOR Parts Diagram

  • Title
1

Honda 31204-ZA0-003

SEE PART DETAILS - PRI; CONTACTOR ASSY.

Note: (Optional).

$149.99

$

In Stock, only 1 left!

0

2

Honda 31206-ZE3-003

ARMATURE

Note: (Optional).

$100.99

$

Usually ships in 3-6 days

0

3

Honda 31207-ZE3-003

CLUTCH, OVERRUNNING

Note: (Optional).

$352.99

$

Usually ships in 3-6 days

0

4

Honda 31210-ZE3-023

STARTER MOTOR UNIT
(Superseded to 31210-ZE3-033)

Note: (Optional). Use up to Engine SN 1033891.

$309.99

$

In Stock, only 2 left!

0

4

Honda 31210-ZE3-023

STARTER MOTOR UNIT
(Superseded to 31210-ZE3-033)

Note: Use from Engine SN 1033892.

$309.99

$

In Stock, only 2 left!

0

5

Honda 31211-ZE2-003

BRACKET, CENTER

Note: (Optional).

$114.99

$

Usually ships in 3-6 days

0

6

Honda 31212-ZE3-003

BRACKET, FR.

Note: (Optional).

$160.99

$

Usually ships in 3-6 days

0

7

Honda 31213-ZE2-003

GEAR, DRIVE PINION

Note: (Optional).

$58.99

$

Usually ships in 3-6 days

0

8

Honda 31215-ZE2-003

BRUSH

Note: (Optional).

$13.99

$

In Stock, only 2 left!

0

9

Honda 31218-ZE3-003

YOKE

Note: (Optional).

$55.99

$

Usually ships in 3-6 days

0

10

Honda 31219-ZE2-003

SPRING, BRUSH RETURN

Note: (Optional).

$4.49

$

In Stock, only 2 left!

0

11

Honda 31222-ZE3-791

GEAR, REDUCTION

Note: Use from Engine SN 1033892.

$39.99

$

Usually ships in 3-6 days

0

12

Honda 31231-ZE2-003

HOLDER, BRUSH

Note: (Optional).

$15.99

$

Usually ships in 3-6 days

0

13

Honda 31232-ZE3-003

WIRE, WATER COVER

Note: (Optional).

$13.99

$

Usually ships in 3-6 days

0

14

Honda 31233-ZE2-003

INSULATOR

Note: (Optional).

$14.99

$

Usually ships in 3-6 days

0

15

Honda 90110-ZE2-003

SCREW-WASHER (4X6)

Note: (Optional).

$3.49

$

Usually ships in 3-6 days

0

16

Honda 91601-ZE2-003

GASKET

Note: (Optional).

$8.49

$

Usually ships in 3-6 days

0

17

Honda 93892-05014-08

SCREW-WASHER (5X14)

Note: (Optional).

$1.49

$

Usually ships in 3-6 days

0

18

Honda 93892-05032-08

SCREW-WASHER (5X32)

Note: (Optional).

$1.99

$

In Stock, Qty 6

0

19

Honda 94070-06080

NUT-WASHER (6MM)

Note: (Optional).

$1.99

$

Usually ships in 3-6 days

0

20

Honda 95701-08035-08

BOLT, FLANGE (8X35)

Note: (Optional).

$1.99

$

Usually ships in 3-6 days

0
