GX340 PAR (GC05) - Honda Engine, Made in Japan (SN: GC05-1000001 - GC05-1469766) CYLINDER HEAD Parts Diagram

Engine, Made in Japan

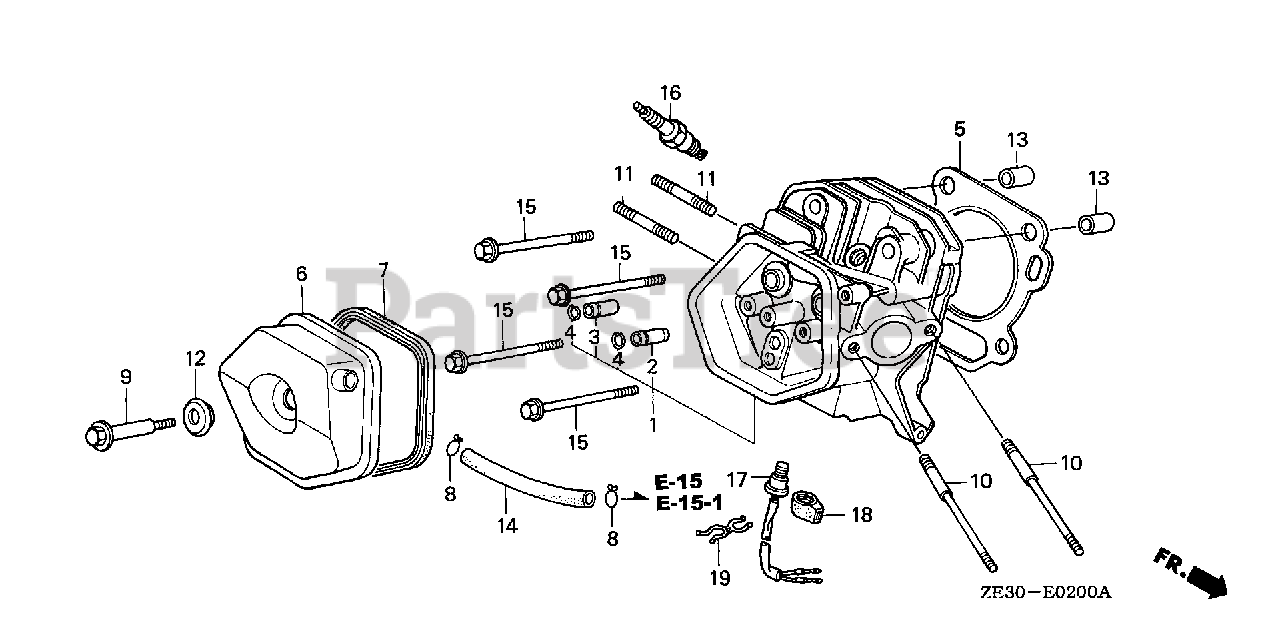

CYLINDER HEAD Parts Diagram

  • Title

1

Honda 122A0-ZE3-000

CYLINDER HEAD

Note: Use up to Engine SN 1156124.

$

$

Currently unavailable

1

Honda 122A0-ZE3-010

CYLINDER HEAD (NOT AVAILABLE)

Note: Use from Engine SN 1156125.

$

$

Not available

2

Honda 12204-ZE2-305

GUIDE, VALVE (OVER SIZE)
(Superseded to 12204-ZE2-315)

Note: (Optional).

$

$

Not available

2

Honda 12204-ZE2-306

SEE PART DETAILS - PRI; GUIDE, VALVE (OVER SIZE)

Note: (Optional).

$

$

Not available

3

Honda 12205-ZE2-305

GUIDE, EX. VALVE (OVER SIZE)

Note: (Optional).

$

$

Not available

4

Honda 12216-ZE2-300

CLIP, VALVE GUIDE

$2.49

$

In Stock, Qty 5

0

5

Honda 12251-ZE3-W00

SEE PART DETAILS - SUP; GASKET, CYLINDER HEAD
(Superseded to 12251-ZE3-W01)

$20.99

$

Usually ships in 3-6 days

0

5

Honda 12251-ZE3-W01

SEE PART DETAILS - PRI; GASKET, CYLINDER HEAD

$20.99

$

Usually ships in 3-6 days

0

6

Honda 12310-ZE2-010

COVER, HEAD

$

$

Currently unavailable

7

Honda 12391-ZE2-020

SEE PART DETAILS - PRI; GASKET, HEAD COVER

$12.99

$

In Stock, Qty 20+

0

8

Honda 15772-292-010

CLIP, BREATHER TUBE

Note: Use from Engine SN 1131018.

$3.99

$

In Stock, only 1 left!

0

9

Honda 90014-ZE2-000

BOLT, HEAD COVER

$6.99

$

In Stock, only 1 left!

0

10

Honda 90042-ZB7-000

BOLT, STUD (8X111)

$11.99

$

Usually ships in 3-6 days

0

11

Honda 90012-KM9-000

BOLT, STUD (8X34)

Note: Use from Engine SN 1164615.

$4.49

$

Usually ships in 3-6 days

0

11

Honda 90047-ZE2-000

BOLT, STUD (8X47)

Note: Use up to Engine SN 1164614.

$4.49

$

Usually ships in 3-6 days

0

12

Honda 90441-ZE2-010

WASHER, HEAD COVER

$6.99

$

In Stock, Qty 12

0

13

Honda 94301-12200

PIN, DOWEL (12X20)

$3.49

$

Usually ships in 3-6 days

0

14

Honda 15721-ZE3-900

TUBE, BREATHER

Note: Use up to Engine SN 1131017.

$

$

Currently unavailable

14

Honda 15721-ZE3-901

TUBE, BREATHER (NOT AVAILABLE)

Note: Use from Engine SN 1131018.

$

$

Not available

15

Honda 95701-10080-00

BOLT, FLANGE (10X80)

$4.49

$

In Stock, only 3 left!

0

16

Honda 98079-56145

SPARK PLUG (BPR6ES-11)

$3.99

$

In Stock, Qty 20+

0

16

Honda 98079-56155

SPARK PLUG (W20EPR-U11)

$3.99

$

Usually ships in 3-6 days

0

17

Honda 16500-ZE2-703

SEE PART DETAILS - PRI; SWITCH, THERMO

$77.99

$

Usually ships in 3-6 days

0

18

Honda 16505-ZE2-700

CAP, THERMO SWITCH

$7.49

$

Usually ships in 3-6 days

0

19

Honda 90658-SA0-003

CLIP, WIRE HARNESS

$12.99

$

Usually ships in 3-6 days

0
