GX340 PAR (GC05) - Honda Engine, Made in Japan (SN: GC05-1000001 - GC05-1469766) CRANKCASE COVER (1) Parts Diagram

Engine, Made in Japan

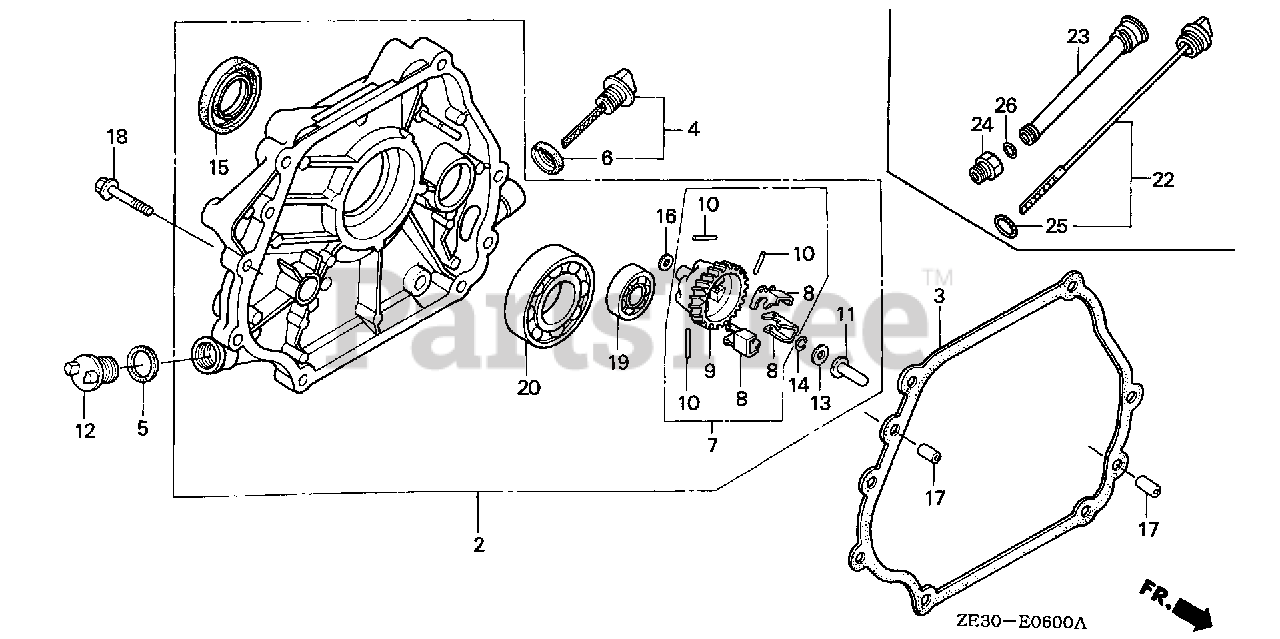

CRANKCASE COVER (1) Parts Diagram

  • Title

2

Honda 11300-ZE3-600

COVER ASSY., CRANKCASE

Note: Use up to Engine SN 1151074.

$

$

Currently unavailable

2

Honda 11300-ZE3-601

COVER ASSY., CRANKCASE (NOT AVAILABLE)

Note: Use from Engine SN 1151075 to 1421332.

$

$

Not available

2

Honda 11300-ZE3-602

SEE PART DETAILS - SUP; COVER ASSY., CRANKCASE
(Superseded to 11300-Z1C-601)

Note: Use from Engine SN 1421333.

$105.99

$

In Stock, only 1 left!

0

2

Honda 11300-ZE3-604

SEE PART DETAILS - SUP; COVER ASSY., CRANKCASE
(Superseded to 11300-Z1C-600)

Note: Use from Engine SN 1421333.

$

$

Not available

3

Honda 11381-ZE3-306

SEE PART DETAILS - SUP; GASKET, CASE COVER
(Superseded to 11381-ZE3-801)

$13.99

$

In Stock, only 4 left!

0

3

Honda 11381-ZE3-800

SEE PART DETAILS - PRI; GASKET, CASE COVER
(Superseded to 11381-ZE3-801)

$13.99

$

In Stock, only 4 left!

0

5

Honda 15621-896-010

GASKET, OIL FILLER CAP

$5.99

$

In Stock, Qty 5

0

7

Honda 16510-ZE3-000

GOVERNOR ASSY.

Note: Use from Engine SN 1421333.

$33.99

$

Usually ships in 3-6 days

0

7

Honda 16510-ZE8-000

GOVERNOR ASSY. (NOT AVAILABLE)

Note: Use up to Engine SN 1421332.

$

$

Not available

8

Honda 16511-ZE8-000

WEIGHT, GOVERNOR

$7.99

$

Usually ships in 3-6 days

0

9

Honda 16512-ZE3-000

HOLDER, GOVERNOR WEIGHT

Note: Use from Engine SN 1421333.

$19.99

$

Usually ships in 3-6 days

0

9

Honda 16512-ZE8-000

HOLDER, GOVERNOR WEIGHT

Note: Use up to Engine SN 1421332.

$21.99

$

Usually ships in 3-6 days

0

10

Honda 16513-ZE2-000

PIN, GOVERNOR WEIGHT

$2.49

$

Usually ships in 3-6 days

0

11

Honda 16531-Z0A-000

SEE PART DETAILS - PRI; SLIDER, GOVERNOR

$3.99

$

In Stock, only 3 left!

0

12

Honda 15620-ZG4-910

CAP, OIL FILLER

$4.99

$

Usually ships in 3-6 days

0

13

Honda 90473-147-000

WASHER (6X16)

$1.99

$

In Stock, only 1 left!

0

14

Honda 90602-ZE1-000

CLIP, GOVERNOR HOLDER

$1.99

$

In Stock, only 3 left!

0

14

Honda 90602-896-000

CLIP, GOVERNOR HOLDER

Note: Use up to Engine SN 1197942.

$1.99

$

Usually ships in 3-6 days

0

15

Honda 91201-ZE3-004

OIL SEAL (35X52X8)

$11.99

$

In Stock, Qty 7

0

16

Honda 94101-06800

WASHER, PLAIN (6MM)

$0.99

$

In Stock, Qty 20+

0

17

Honda 90701-HC4-000

PIN, DOWEL (8X12)

Note: Use from Engine SN 1253028.

$3.99

$

In Stock, only 2 left!

0

17

Honda 94301-08120

PIN A, DOWEL (8X12)

Note: Use up to Engine SN 1253027.

$2.99

$

Usually ships in 3-6 days

0

18

Honda 95701-08040-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X40)

$1.99

$

In Stock, Qty 20+

0

19

Honda 96100-62020-00

BEARING, RADIAL BALL (6202)

$12.99

$

In Stock, only 3 left!

0

20

Honda 96100-62070-00

BEARING, RADIAL BALL (6207)

$56.99

$

Usually ships in 3-6 days

0

22

Honda 15600-ZE3-900

GAUGE ASSY., LEVEL

$23.99

$

Usually ships in 3-6 days

0

23

Honda 15630-894-680

PIPE, OIL FILLER

$46.99

$

Usually ships in 3-6 days

0

24

Honda 15631-894-680

BOLT, JOINT (NOT AVAILABLE)

$

$

Currently unavailable

25

Honda 91301-805-000

O-RING (26X2.7)

$5.49

$

In Stock, Qty 10

0

26

Honda 91301-MY9-003

SEE PART DETAILS - PRI; O-RING (15X2.5)

$3.49

$

Usually ships in 3-6 days

0

26

Honda 91302-028-000

SEE PART DETAILS - SUP; O-RING (15X2.5)
(Superseded to 91301-MY9-003)

$3.49

$

Usually ships in 3-6 days

0
