GX340 PAR (GC05) - Honda Engine, Made in Japan (SN: GC05-1000001 - GC05-1469766) CONTROL Parts Diagram
Engine, Made in Japan

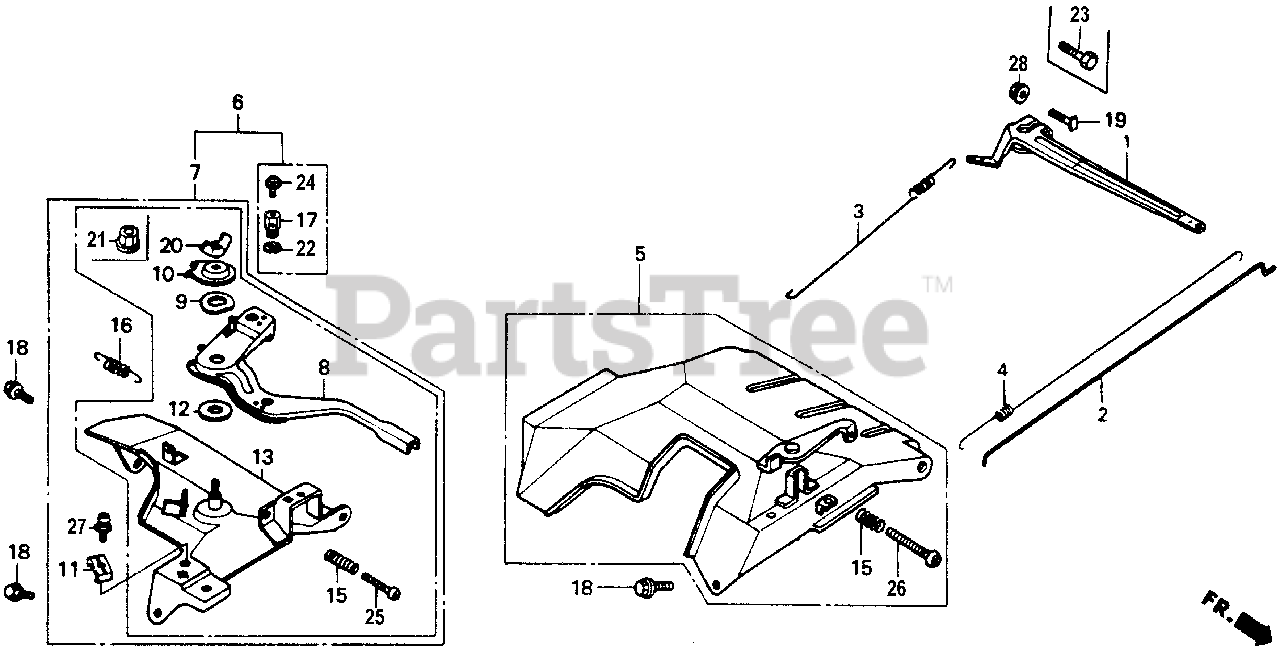

CONTROL Parts Diagram
Honda 16551-ZE3-000
ARM, GOVERNOR (Honda Code 2107928).
$17.99
$
In Stock, only 1 left!
Honda 16555-ZE3-000
ROD, GOVERNOR (Honda Code 2107936).
$5.49
$
In Stock, only 1 left!
Honda 16561-ZE3-000
SPRING, GOVERNOR (Honda Code 2107944).
$5.99
$
In Stock, Qty 11
Honda 16562-ZE3-000
SPRING, THROTTLE RETURN (Honda Code 2107951).
$4.99
$
In Stock, Qty 20+
Honda 16570-ZE3-700
CONTROL ASSY. (Honda Code 2278554).
$29.99
$
Usually ships in 3-6 days
Honda 16584-883-300
SPRING, CONTROL ADJUSTING (Honda Code 0636431).
$4.99
$
In Stock, Qty 7
Honda 90013-883-000
SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) (CT200) (Honda Code 0636845).
$1.99
$
In Stock, Qty 20+
Honda 90015-ZE5-010
SEE PART DETAILS - PRI; BOLT, GOVERNOR ARM (Honda Code 2418671).
$3.49
$
In Stock, only 3 left!
Honda 93500-05035-0A
SEE PART DETAILS - PRI; SCREW, PAN (5X35) (Honda Code 0331405).
$1.49
$
In Stock, only 3 left!
Honda 94050-06000
SEE PART DETAILS - PRI; NUT, FLANGE (6MM) (Honda Code 0471623).
$0.99
$
In Stock, Qty 20+
