GX340 K1 VXA (GC05) - Honda Engine, Made in Japan (SN: GC05-2000001 - GC05-3599999) FUEL TANK VXA Parts Diagram

Engine, Made in Japan

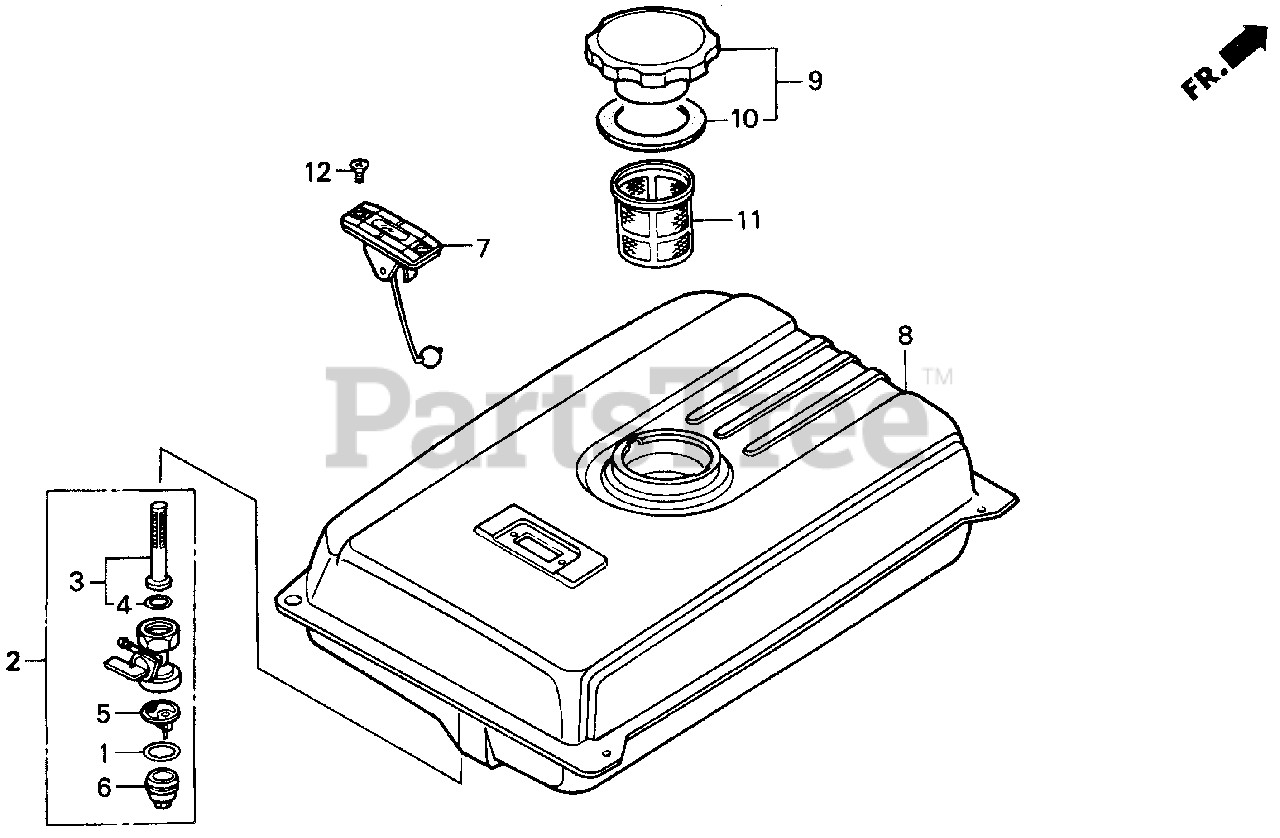

FUEL TANK VXA Parts Diagram

  • Title

1

Honda 16173-001-004

GASKET, FUEL STRAINER CUP

Note: (Honda Code 0005652).

$7.49

$

In Stock, only 1 left!

0

2

Honda 16950-ZB4-015

SEE PART DETAILS - PRI; PETCOCK ASSY.

Note: (Honda Code 3456159).

$103.99

$

In Stock, only 3 left!

0

3

Honda 16952-ZB4-005

SCREEN, FUEL STRAINER
(Superseded to 16952-KJ9-752)

Note: (Honda Code 2520484).

$46.99

$

Usually ships in 3-6 days

0

4

Honda 16958-397-771

O-RING (9X1.3)

Note: (Honda Code 1198795).

$7.99

$

In Stock, only 4 left!

0

5

Honda 16959-471-831

FILTER, CUP

Note: (Honda Code 1073212).

$12.99

$

In Stock, Qty 8

0

6

Honda 16967-GA6-671

CUP, FUEL STRAINER

Note: (Honda Code 1198803).

$31.99

$

Usually ships in 3-6 days

0

7

Honda 17505-ZB2-003

METER ASSY., FUEL
(Superseded to 17505-ZB2-013)

Note: (Honda Code 1496660).

$27.99

$

In Stock, only 1 left!

0

8

Honda 17510-ZC2-000ZA

TANK, FUEL *NH31* (MCKINLEY WHITE)

Note: (Honda Code 3738366).

$

$

Not available

9

Honda 17620-899-013

SEE PART DETAILS - PRI; CAP, FUEL TANK
(Superseded to 17620-899-023)

Note: (Honda Code 2892115).

$42.99

$

Usually ships in 3-6 days

0

10

Honda 17631-899-000

SEE PART DETAILS - PRI; GASKET, FUEL FILLER CAP
(Superseded to 17631-899-010)

Note: (Honda Code 3638541).

$8.49

$

In Stock, only 1 left!

0

11

Honda 17672-899-000

FILTER, FUEL

Note: (Honda Code 1239409).

$18.99

$

In Stock, only 1 left!

0

12

Honda 93600-05010-0A

SEE PART DETAILS - PRI; SCREW, FLAT (5X10)

Note: (Honda Code 0181529).

$1.49

$

In Stock, Qty 10

0
