GX340 K1 VWS2 (GC05) - Honda Engine, Made in Japan (SN: GC05-2000001 - GC05-3599999) MUFFLER (1) Parts Diagram

Engine, Made in Japan

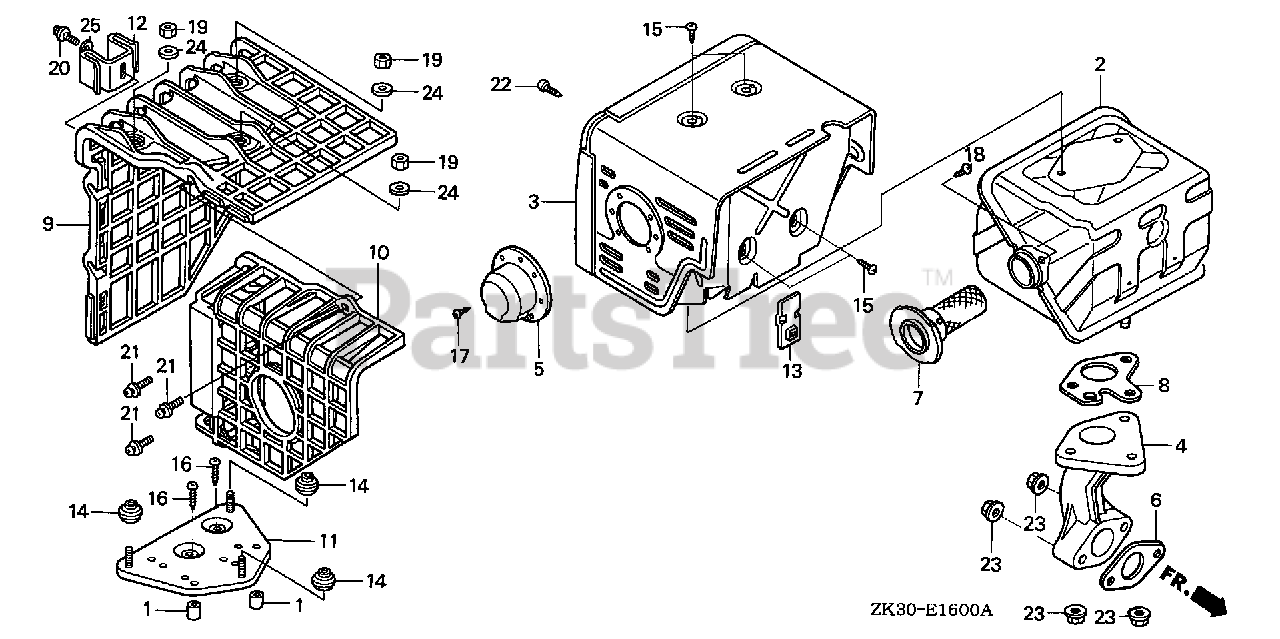

MUFFLER (1) Parts Diagram

  • Title

2

Honda 18310-ZE2-W60

MUFFLER (100DB)
(Superseded to 18310-ZE2-W61)

Note: Use up to Engine SN 3030997.

$135.99

$

Usually ships in 3-6 days

0

2

Honda 18310-ZE2-W61

MUFFLER (100DB)

Note: Use from Engine SN 3030998.

$135.99

$

Usually ships in 3-6 days

0

3

Honda 18320-ZE2-W61

SEE PART DETAILS - SUP; PROTECTOR, MUFFLER
(Superseded to 18320-ZE2-W62)

$74.99

$

In Stock, only 1 left!

0

3

Honda 18320-ZE2-W62

SEE PART DETAILS - PRI; PROTECTOR, MUFFLER

$74.99

$

In Stock, only 1 left!

0

4

Honda 18330-ZE2-W00

PIPE, EX.

$83.99

$

In Stock, only 2 left!

0

6

Honda 18333-ZE3-800

SEE PART DETAILS - SUP; GASKET, EX. PIPE
(Superseded to 18333-ZK6-Y00)

Note: Use up to Engine SN 2563593.

$5.49

$

In Stock, Qty 20+

0

6

Honda 18333-ZF6-W01

SEE PART DETAILS - SUP; GASKET, EX. PIPE
(Superseded to 18333-Z1C-901)

Note: Use from Engine SN 3030998.

$3.49

$

In Stock, Qty 20+

0

6

Honda 18333-ZK6-Y00

SEE PART DETAILS - PRI; GASKET, EX. PIPE

Note: Use up to Engine SN 3030997.

$5.49

$

In Stock, Qty 20+

0

7

Honda 18355-ZE2-W00

ARRESTER, SPARK

$59.99

$

In Stock, only 1 left!

0

8

Honda 18381-ZE2-W10

GASKET, MUFFLER (ARRESTER) (NIPPON LEAKLESS)

$13.99

$

In Stock, only 4 left!

0

15

Honda 90050-ZE1-000

SCREW, TAPPING (5X8)

$2.49

$

In Stock, Qty 20+

0

18

Honda 90050-ZE1-000

SCREW, TAPPING (5X8)

$2.49

$

In Stock, Qty 20+

0

22

Honda 90006-ZE2-000

SCREW, TAPPING (6X10)

$2.49

$

Usually ships in 3-6 days

0

23

Honda 94050-08000

NUT, FLANGE (8MM)

$1.49

$

In Stock, Qty 20+

0
