GX340 K1 VWC2 (GC05) - Honda Engine, Made in Japan (SN: GC05-2000001 - GC05-3599999) CONTROL (1) Parts Diagram

Engine, Made in Japan

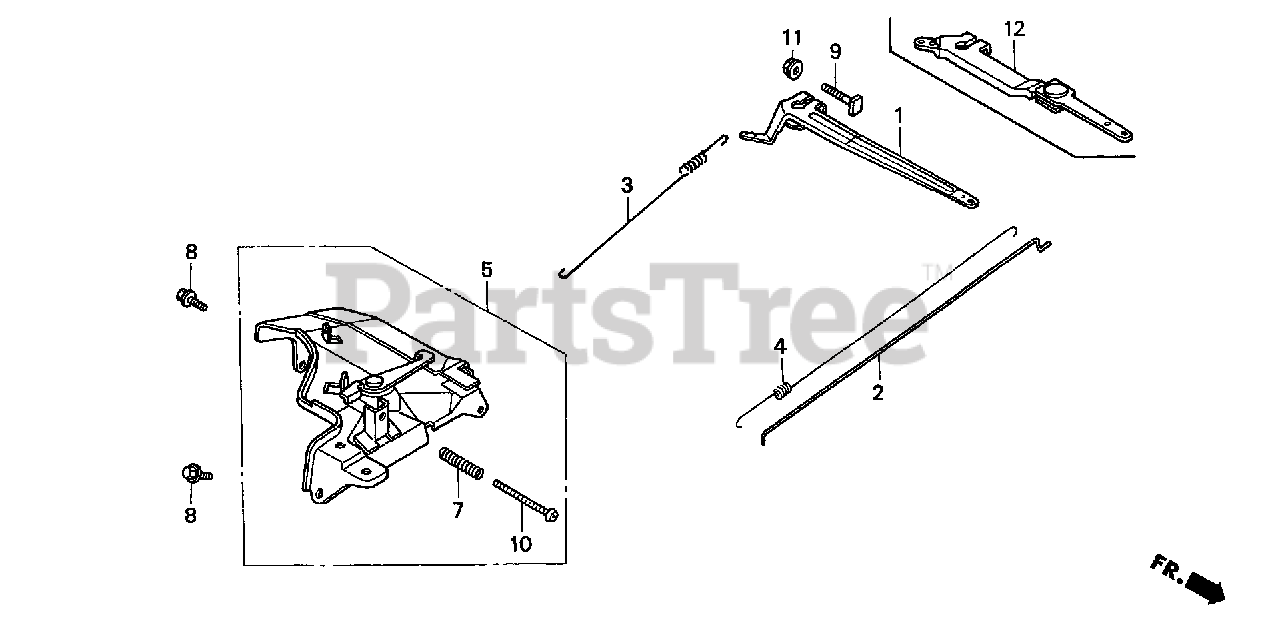

CONTROL (1) Parts Diagram

  • Title

1

Honda 16551-ZE3-000

ARM, GOVERNOR

Note: (Honda Code 2107928).

$18.99

$

In Stock, only 1 left!

0

2

Honda 16555-ZE3-000

ROD, GOVERNOR

Note: (Honda Code 2107936).

$5.49

$

In Stock, only 1 left!

0

3

Honda 16561-ZE3-710

SPRING, GOVERNOR

Note: (Honda Code 2378032).

$5.99

$

Usually ships in 3-6 days

0

4

Honda 16562-ZE3-000

SPRING, THROTTLE RETURN

Note: (Honda Code 2107951).

$5.49

$

In Stock, Qty 20+

0

5

Honda 16570-ZE3-721

SEE PART DETAILS - PRI; CONTROL ASSY.

Note: (Honda Code 2378040).

$30.99

$

Usually ships in 3-6 days

0

7

Honda 16584-883-300

SPRING, CONTROL ADJUSTING

Note: (Honda Code 0636431).

$5.49

$

In Stock, Qty 7

0

8

Honda 90013-883-000

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) (CT200)

Note: (Honda Code 0636845).

$2.49

$

In Stock, Qty 17

0

9

Honda 90015-ZE5-010

SEE PART DETAILS - PRI; BOLT, GOVERNOR ARM

Note: (Honda Code 2418671).

$3.49

$

In Stock, only 3 left!

0

10

Honda 93500-05045-0A

SEE PART DETAILS - PRI; SCREW, PAN (5X45)

Note: (Honda Code 0197715).

$1.99

$

Usually ships in 3-6 days

0

11

Honda 94050-06000

SEE PART DETAILS - PRI; NUT, FLANGE (6MM)

Note: (Honda Code 0471623).

$0.99

$

In Stock, Qty 20+

0
