GX340 K1 SXP (GC05) - Honda Engine, Made in Japan (SN: GC05-2000001 - GC05-3599999) FUEL TANK Parts Diagram

Engine, Made in Japan

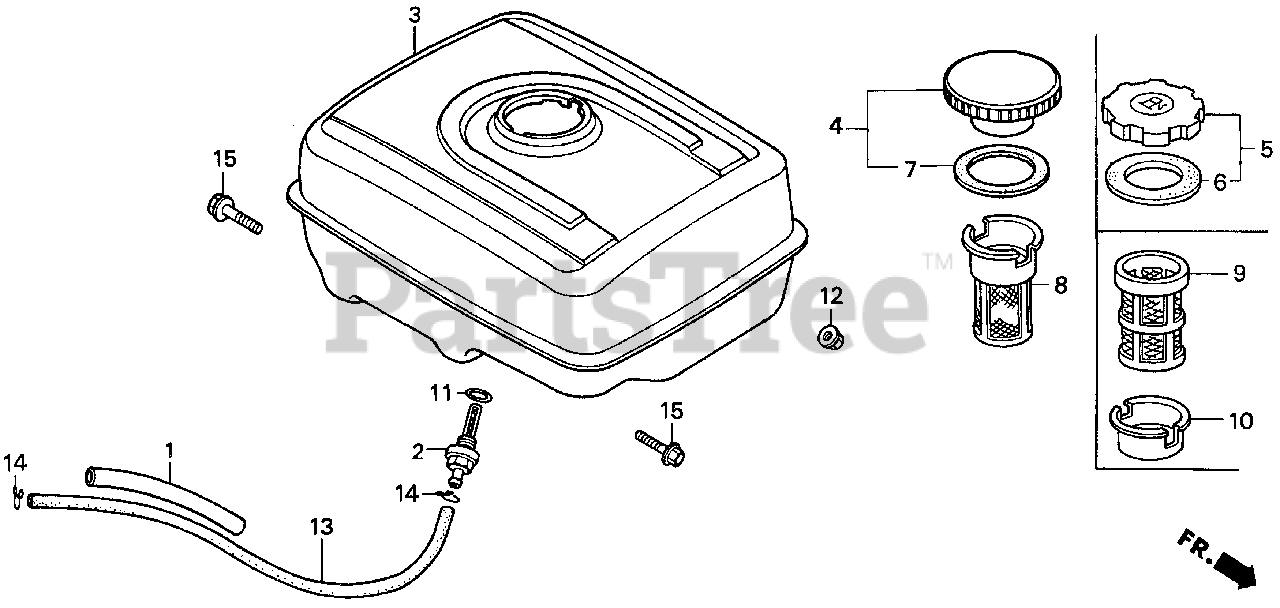

FUEL TANK Parts Diagram

  • Title
1

Honda 16854-ZE1-000

SEE PART DETAILS - SUP; RUBBER, SUPPORTER
(Superseded to 16854-ZH8-000)

Note: Use up to Engine SN 2045717. (Honda Code 1436674).

$4.99

$

In Stock, Qty 14

0

1

Honda 16854-ZH8-000

SEE PART DETAILS - PRI; RUBBER, SUPPORTER (107MM)

Note: (Honda Code 3683646).

$4.99

$

In Stock, Qty 14

0

2

Honda 16955-ZE1-000

JOINT, FUEL TANK
(Superseded to 16955-ZE1-010)

Note: (Honda Code 1427459).

$8.99

$

In Stock, Qty 20+

0

3

Honda 17510-ZE3-010ZA

SEE PART DETAILS - PRI; TANK, FUEL *NH31* (MCKINLEY WHITE)
(Superseded to 17510-ZE3-030ZA)

Note: (Honda Code 3713278).

$99.99

$

In Stock, only 1 left!

0

4

Honda 17620-ZE2-W00

CAP, FUEL FILLER

Note: Use up to Engine SN 2302949. (Honda Code 3682028).

$

$

Not available

5

Honda 17620-ZH7-023

SEE PART DETAILS - PRI; CAP, FUEL FILLER
(Superseded to 17620-Z0T-305)

Note: Use from Engine SN 2302950 to 4122402. (Honda Code 5344817).

$

$

Not available

5

Honda 17620-ZH7-023

SEE PART DETAILS - PRI; CAP, FUEL FILLER
(Superseded to 17620-Z0T-305)

Note: (Honda Code 5344817).

$

$

Not available

6

Honda 17631-ZH7-003

GASKET, FUEL FILLER CAP
(Superseded to 17631-329-003)

Note: Use from Engine SN 2302950. (Honda Code 4608725).

$

$

Not available

7

Honda 17631-329-003

SEE PART DETAILS - PRI; GASKET, FUEL FILLER CAP
(Superseded to 17631-329-013)

Note: Use up to Engine SN 2302949. (Honda Code 2820587).

$

$

Not available

11

Honda 91353-671-003

SEE PART DETAILS - PRI; O-RING (13.5X1.5) (ARAI)

Note: (Honda Code 0949883).

$3.99

$

In Stock, Qty 20+

0

12

Honda 94050-08000

SEE PART DETAILS - PRI; NUT, FLANGE (8MM)

Note: (Honda Code 0481143).

$1.49

$

In Stock, Qty 20+

0

13

Honda 95001-45003-60M

BULK HOSE, FUEL (4.5X3000) (4.5X235)

Note: (Honda Code 5137104).

$54.99

$

In Stock, only 4 left!

0

14

Honda 95002-02080

CLIP, TUBE (B8)

Note: (Honda Code 0250647).

$2.49

$

In Stock, Qty 20+

0

15

Honda 95701-08025-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X25)

Note: (Honda Code 2545325).

$2.49

$

In Stock, only 4 left!

0
