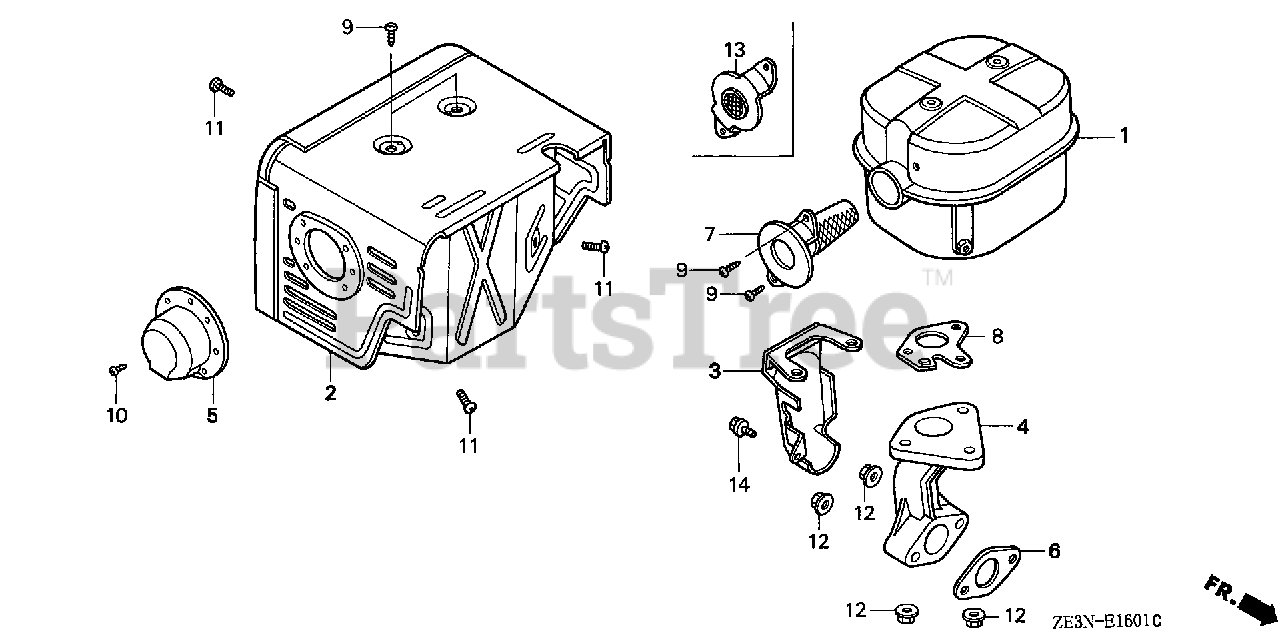

GX340 K1 QWH2 (GC05) - Honda Engine, Made in Japan (SN: GC05-2000001 - GC05-3599999) MUFFLER (2) Parts Diagram

Engine, Made in Japan

MUFFLER (2) Parts Diagram

  • Title

1

Honda 18310-ZE3-W00

MUFFLER

Note: (Honda Code 3735461).

$176.99

$

Usually ships in 3-6 days

0

2

Honda 18320-ZE3-W01

SEE PART DETAILS - PRI; PROTECTOR, MUFFLER
(Superseded to 18320-ZE3-W02)

Note: (Honda Code 4640843).

$78.99

$

Usually ships in 3-6 days

0

4

Honda 18330-ZE2-W00

PIPE, EX.

Note: (Honda Code 3678794).

$76.99

$

In Stock, only 1 left!

0

5

Honda 18331-ZE3-810

CAP, MUFFLER
(Superseded to 18331-ZE3-811)

Note: (Honda Code 2108082).

$11.99

$

In Stock, only 2 left!

0

6

Honda 18333-ZF6-W01

GASKET, EX. PIPE
(Superseded to 18333-Z1C-901)

Note: (Honda Code 6145361).

$2.99

$

In Stock, only 3 left!

0

7

Honda 18355-ZE3-010

SEE PART DETAILS - PRI; ARRESTER, SPARK

Note: (Optional). (Honda Code 2537207).

$36.99

$

Usually ships in 3-6 days

0

8

Honda 18381-ZE2-W10

SEE PART DETAILS - PRI; GASKET, MUFFLER (ARRESTER)

Note: (Optional). (Honda Code 3678802).

$12.99

$

In Stock, Qty 7

0

8

Honda 18381-ZE2-800

SEE PART DETAILS - PRI; GASKET, MUFFLER
(Superseded to 18381-ZE2-801)

Note: (Optional). (Honda Code 3678810).

$14.99

$

In Stock, only 1 left!

0

9

Honda 90050-ZE1-000

SCREW, TAPPING (5X8)

Note: (Honda Code 1431105).

$2.49

$

In Stock, Qty 20+

0

10

Honda 90055-ZE1-000

SCREW, TAPPING (4X6)

Note: (Honda Code 1431121).

$1.49

$

In Stock, Qty 11

0

11

Honda 93500-06006-0B

SCREW, PAN (6X6)

Note: (Honda Code 0649806).

$1.49

$

Usually ships in 3-6 days

0

12

Honda 94050-08000

SEE PART DETAILS - PRI; NUT, FLANGE (8MM)

Note: (Honda Code 0481143).

$1.49

$

In Stock, Qty 20+

0

13

Honda 18336-ZE3-000

FLANGE, BAFFLE

Note: (Honda Code 2309581).

$13.99

$

Usually ships in 3-6 days

0
